ICON Stage 2 Suspension System for 2007-2021 Toyota Tundra

Name: ICON Stage 2 Suspension System for 2007-2021 Toyota Tundra
Brand: ICON
SKU: K53022
Price: 2301.0 USD
Availability: InStock

$2,301.00 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53022

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Height-adjustable 1-3 inch front lift to dial in your exact ride height
2.5 inch front coilovers with internal reservoirs resist heat and fade
Vehicle-specific tuned valving for a planted, comfortable ride on and off road
Matched 2.0 VS aluminum rear shocks balance the truck front to rear
Clears up to 35 inch tires for an aggressive off-road stance
100% bolt-on install with no drilling, cutting, or welding
Engineered specifically for 2007-2021 Tundra and 2008-2022 Sequoia

Transform the ride and stance of your 2007-2021 Toyota Tundra or 2008-2022 Sequoia with the ICON Vehicle Dynamics K53022 Stage 2 Suspension System. This complete front-and-rear package delivers a height-adjustable 1-3 inch lift, dialing in aggressive ground clearance and the room you need for larger wheel and tire combinations while transforming on- and off-road performance.

Key Benefits

Height-adjustable 1-3 inch front lift to set your exact stance
Vehicle-specific tuned valving for a controlled, comfortable ride on-road and off
2.5 inch front coilovers with internal reservoirs for superior heat management and fade resistance
Matched 2.0 VS aluminum-series rear shocks balance the truck front to rear
Clearance for up to 35 inch tires for a true off-road build
100% bolt-on installation with no drilling, cutting, or welding

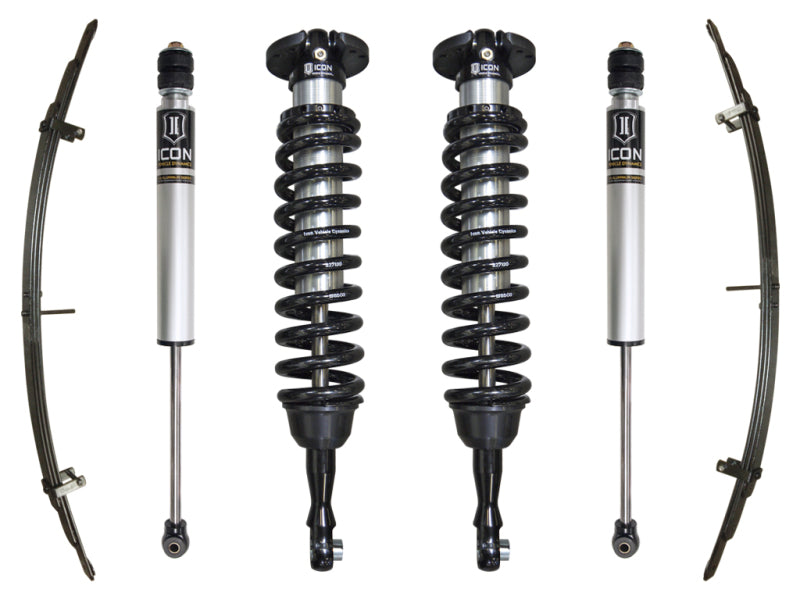

What's Included

Pair of ICON 2.5 inch front coilover shocks with internal reservoir (1-3 in adjustable)
Pair of ICON 2.0 VS aluminum-series rear shocks
Rear lift expansion pack
Mounting hardware

Specifications

Stage: Stage 2 Suspension System
Front: 2.5 inch coilover, internal reservoir, 1-3 in adjustable
Rear: 2.0 VS aluminum-series monotube shock
Damping: Vehicle-specific tuned (non-adjustable)
Installation: 100% bolt-on
Recommended tire: up to 35 x 12.50

Fitment

Direct bolt-on fitment for the following vehicles. An aftermarket upper control arm is recommended above 2.5 inches of lift to maintain proper alignment; UCAs are not included.

2007-2021 Toyota Tundra
2008-2022 Toyota Sequoia

FAQ

Does this ICON Stage 2 system fit the 2022 or newer Tundra?

No. It is built for the 2007-2021 second-generation Toyota Tundra and 2008-2022 Sequoia; the 2022 and newer third-generation Tundra uses a different ICON system.

How much lift does the ICON K53022 provide?

The 2.5 Series front coilovers are height-adjustable from 1 to 3 inches. Fender trimming may be required to run the recommended 35x12.50 tire. Factory upper control arms will not align properly past 2.5 inches of lift, so an aftermarket upper control arm is recommended above that height.

What is the difference between this Stage 2 system and the other ICON Tundra stages?

Stage 2 adds a rear expansion pack (about 1.5 inches of rear lift) over Stage 1.
