ICON Stage 5 CDCV Suspension System for 96-02 Toyota 4Runner

Name: ICON Stage 5 CDCV Suspension System for 96-02 Toyota 4Runner
Brand: ICON
SKU: K53135
Price: 4609.8 USD
Availability: InStock

$4,609.80 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53135

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete Stage 5 front and rear suspension package for the 96-02 4Runner
2.5 VS Series remote-reservoir front coilovers adjustable from 0-3 inches of lift
CDCV manual knob lets you tune compression damping without tools
Tubular steel upper control arms with patented ICON Delta Joint included
Vehicle-specific shock valving for balanced on-road and off-road performance
Added wheel travel and corrected alignment geometry over stock
Bolt-on installation with all required hardware

The ICON K53135 Stage 5 Suspension System is a complete bolt-on kit for the 1996-2002 Toyota 4Runner, featuring CDCV-adjustable 2.5 VS Series remote-reservoir front coilovers (0-3 inches of lift), tubular Delta Joint upper control arms, and rear shocks with ICON coil springs.

Key Benefits

Height-adjustable 2.5 VS Series coilovers dial in 0-3 inches of front lift to clear bigger tires
CDCV technology lets you tune compression damping by hand with a simple knob, no tools required
Tubular steel Delta Joint upper control arms restore alignment geometry and add wheel travel over stock
Vehicle-specific shock valving balances on-road comfort with off-road control
Complete front and rear kit replaces worn factory components in one purchase

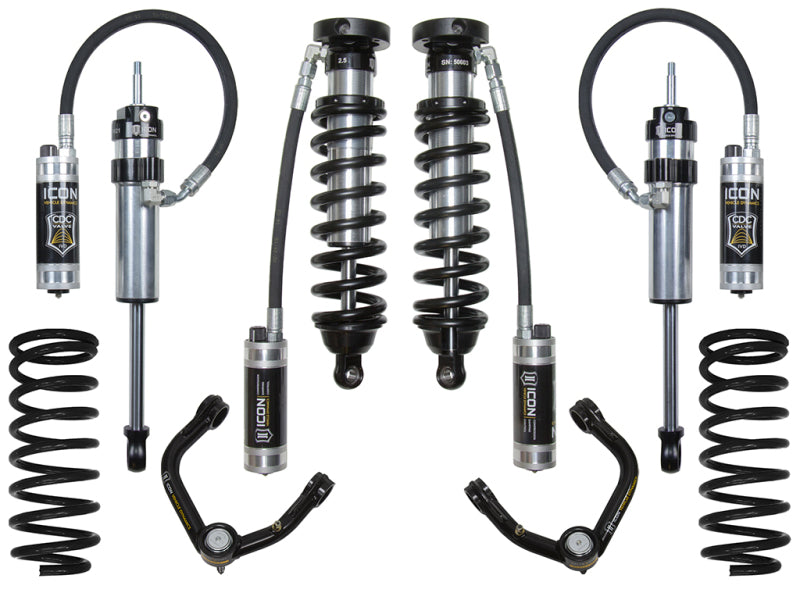

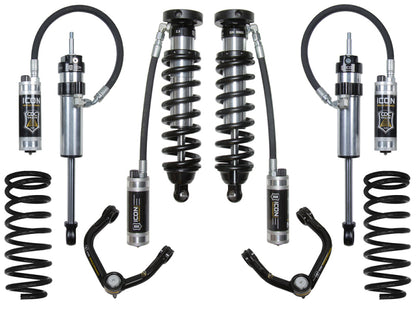

What's Included

2.5 VS Series remote-reservoir extended-travel front coilovers with CDCV adjusters
ICON-engineered front coil springs
2.5 VS Series rear shocks with vehicle-specific valving
ICON-engineered rear coil springs for approximately 1 inch of rear lift
Tubular steel upper control arm kit with patented Delta Joint
Mounting hardware

Specifications

Front lift: 0-3 inches (adjustable)
Rear lift: approximately 1 inch
Front damping: 2.5 VS Series remote-reservoir coilovers
Valve adjustment: CDCV manual compression damping knob
Upper control arms: tubular steel with ICON Delta Joint
Install: bolt-on, no aftermarket UCAs required (UCAs are included)

Fitment

This complete system is engineered for the following application:

1996-2002 Toyota 4Runner (2WD and 4WD), front and rear

FAQ

Are the ICON K53135 coilovers adjustable?

Yes. Stage 5 (K53135) uses CDCV coilovers with 10 external compression-damping settings adjusted by hand. Lower 96-02 4Runner stages (K53131/132/133) use non-adjustable vehicle-specific valving.

Does the ICON K53135 include upper control arms?

Yes. It includes tubular steel Delta Joint upper control arms along with the CDCV front coilovers, rear shocks, and ICON coil springs.

Does the ICON K53135 fit a 2003 or newer 4Runner?

No. It fits the 1996-2002 third-generation 4Runner only. The 2003 and newer 4Runner uses a different ICON system.

Vehicle Fitment

Years	Make	Model	Submodel	Position
1996	Toyota	4Runner	—	Front
1996	Toyota	4Runner	—	Rear
1997	Toyota	4Runner	—	Front
1997	Toyota	4Runner	—	Rear
1998	Toyota	4Runner	—	Front
1998	Toyota	4Runner	—	Rear
1999	Toyota	4Runner	—	Front
1999	Toyota	4Runner	—	Rear
2000	Toyota	4Runner	—	Front
2000	Toyota	4Runner	—	Rear
2001	Toyota	4Runner	—	Front
2001	Toyota	4Runner	—	Rear
2002	Toyota	4Runner	—	Front
2002	Toyota	4Runner	—	Rear
