ICON Stage 8 Suspension System for 07-21 Tundra / 08-22 Sequoia

Name: ICON Stage 8 Suspension System for 07-21 Tundra / 08-22 Sequoia
Brand: ICON
SKU: K53028
Price: 5738.03 USD
Availability: InStock

$5,738.03 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53028

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Height-adjustable 1-3 inch front lift for larger wheel and tire fitment
2.5 Series remote-reservoir coilovers run cooler and resist fade
ICON-tuned velocity-sensitive valving delivers controlled, fade-resistant damping
Billet upper control arms with Delta Joint restore geometry and add droop travel
Matched RXT rear leaf springs and shocks balance the lifted ride
Complete front-and-rear system, no aftermarket UCAs needed
True bolt-on installation with no cutting or welding

Transform your second-generation Toyota Tundra or Sequoia into a capable, comfortable off-road performer with the ICON Stage 8 Suspension System. This is ICON's most complete bolt-on package for the platform, pairing 2.5 Series remote-reservoir front coilovers with billet upper control arms and a fully matched RXT rear leaf spring and shock setup for balanced, front-to-back performance on the street, in the rocks, and across the desert.

Key Benefits

Height-adjustable 1-3 inch front lift clears larger, more aggressive wheel and tire packages
2.5 Series remote-reservoir coilovers deliver superior cooling and fade-free damping on long, hard runs
ICON-tuned velocity-sensitive (V.S.) valving delivers controlled, fade-resistant damping on and off road
Billet aluminum upper control arms with the patented Delta Joint restore correct geometry and add droop travel
RXT multi-rate rear leaf springs and matched 2.5 Aluminum Series shocks balance the rear with the front lift
True bolt-on install with no cutting or welding required

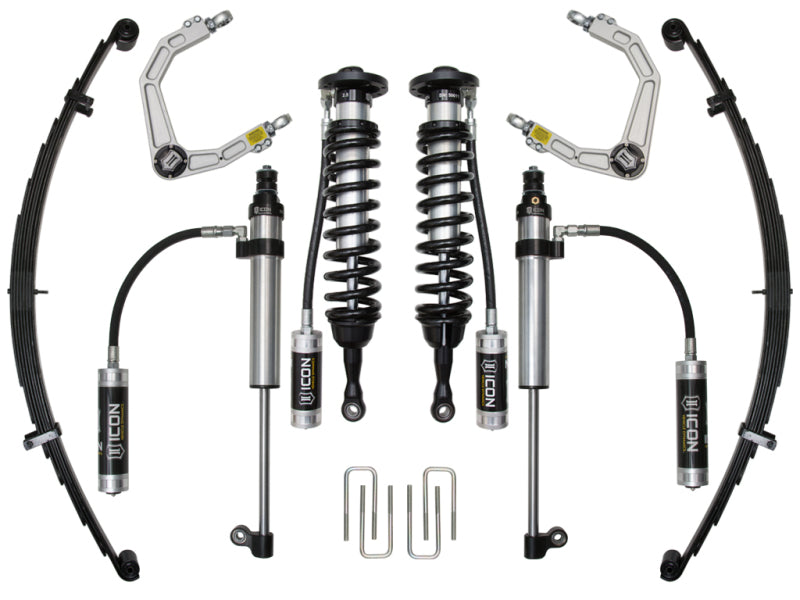

What's Included

Pair of 2.5 Series front coilovers with remote reservoirs
ICON-engineered Eibach front coil springs
Billet aluminum upper control arms with Delta Joint
RXT multi-rate rear leaf springs with add-in leaf
Pair of RXT-specific 2.5 Aluminum Series rear shocks with remote reservoirs
Rear u-bolt kit and installation hardware

Specifications

Front lift: 1-3 inches, height adjustable
Rear: RXT multi-rate leaf pack with add-in leaf tunes rear lift and load capacity
Front shock: 2.5 Series remote reservoir, V.S. velocity-sensitive
Rear shock: 2.5 Aluminum Series RXT remote reservoir
Upper control arms: billet aluminum with Delta Joint
Install: bolt-on, no cutting or welding; trimming required for 35 inch tire fitment

Fitment

Fits the second-generation platform. Verified against ICON for this exact part number (K53028):

2007-2021 Toyota Tundra (front and rear)
2008-2022 Toyota Sequoia (front and rear)

FAQ

Does this ICON Stage 8 system fit the 2022 or newer Tundra?

No. It is built for the 2007-2021 second-generation Toyota Tundra and 2008-2022 Sequoia; the 2022 and newer third-generation Tundra uses a different ICON system.

How much lift does the ICON K53028 provide?

The 2.5 Series front coilovers are height-adjustable from 1 to 3 inches. Fender trimming may be required to run the recommended 35x12.50 tire.

What is the difference between this Stage 8 system and the other ICON Tundra stages?

Stage 8 replaces the expansion pack with an RXT multi-rate leaf pack and RXT rear shocks and adds ICON upper control arms; the front stays non-adjustable V.S. This complete system includes ICON billet Delta Joint upper control arms. This is the billet upper-control-arm version; ICON K53028T is the tubular-UCA version.
