ICON 2.5 VS Front Coilover Kit for 2024-2025 Toyota Land Cruiser 250

Name: ICON 2.5 VS Front Coilover Kit for 2024-2025 Toyota Land Cruiser 250
Brand: ICON
SKU: 58791
Price: 1975.95 USD
Availability: InStock

$1,975.95 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58791

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adjustable front lift for the 2024-2025 Land Cruiser 250 Series
2.5-inch remote-reservoir shocks for controlled, fade-free damping
ICON-engineered springs and valving for the LC250 platform
Fixed valving; step up to CDCV 58791C or CDXS 58791X for adjustability
Delta Joint Pro UCA recommended above 2 in of lift
Bolt-on front pair; fits 2024-2025 Land Cruiser 250

The ICON Vehicle Dynamics 58791 is a 2.5 Series VS remote-reservoir front coilover kit for the 2024-2025 Toyota Land Cruiser 250 Series, providing adjustable front lift with ICON-engineered springs and vehicle-specific valving.

Key Benefits

Adjustable front lift to clear larger wheel and tire packages
2.5-inch remote-reservoir shocks with increased piston area for controlled damping
ICON-engineered vehicle-specific springs and valving for the Land Cruiser 250 platform
Remote reservoirs add oil capacity and run cooler under hard use
Bolt-on install in the factory front shock locations

What's Included

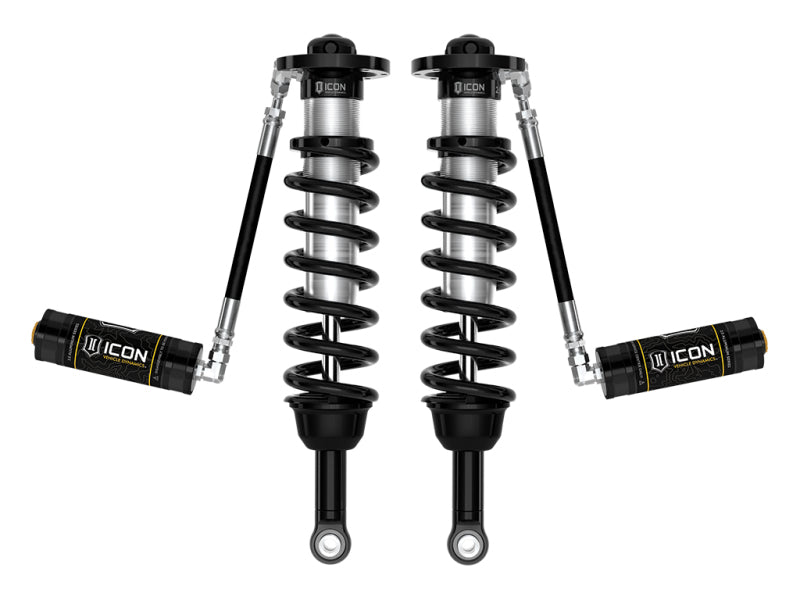

Pair of ICON 2.5 Series VS remote-reservoir front coilovers (driver and passenger)
ICON-engineered coil springs, preassembled

Specifications

Brand: ICON Vehicle Dynamics
Series: 2.5 Series VS remote reservoir
Valving: Vehicle-specific non-adjustable valving (no external knob)
Lift range: Adjustable front lift over stock
Position: Front (sold as a pair)
Construction: CNC-machined 6061 aluminum bodies, 7/8-inch induction-hardened chrome shafts, and FK rod-end bearings
Upper control arms: ICON Delta Joint Pro UCA recommended above 2 in of lift
4WD/AWD note: Front differential drop kit may be required (sold separately)

Fitment

Fits the 2024-2025 Toyota Land Cruiser 250 Series. ICON recommends a Delta Joint Pro upper control arm above 2 inches of lift. Does not fit the 2008-2021 Land Cruiser 200 Series or the 2022-2023 300 Series. This base kit has non-adjustable valving; for a manual compression knob choose the CDCV 58791C, and for dual-speed adjustment the CDXS 58791X.

FAQ

Which Land Cruiser does the 58791 fit?

It fits the 2024-2025 Toyota Land Cruiser 250 Series, the newest-generation Land Cruiser sold in North America.

Is this coilover adjustable?

The 58791 uses fixed vehicle-specific valving. For a hand-adjustable compression knob, choose the CDCV 58791C; for dual-speed adjustment, the CDXS 58791X.

Do I need upper control arms?

ICON recommends a Delta Joint Pro upper control arm above 2 inches of lift to maintain proper alignment.
