ICON 3.0 VS RR CDCV Front Coilover Kit for 2007-2021 Toyota Tundra

Name: ICON 3.0 VS RR CDCV Front Coilover Kit for 2007-2021 Toyota Tundra
Brand: ICON
SKU: 58755
Price: 3932.32 USD
Availability: InStock

$3,932.32 USD

Sale Sold out

Final Sale — no returns or exchanges

Shipping calculated at checkout.

SKU:58755

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Flagship 3.0-inch shock body with remote reservoirs resists fade during towing and desert running
CDCV single-knob adjuster gives 10 manual compression settings
1.63-3.5 inches of adjustable front lift
Engineered for trucks carrying bumpers and winches
Requires aftermarket upper control arms
Fits 2007-2021 Tundra and 2008-2022 Sequoia

The ICON Vehicle Dynamics 58755 is a 3.0 Series VS remote-reservoir CDCV front coilover kit for the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia, delivering 1.63-3.5 inches of adjustable front lift from ICON's largest Toyota shock body.

Key Benefits

Large 3.0-inch shock body with more piston area and oil volume than 2.5 shocks for superior damping and fade resistance
CDCV single-knob adjuster with 10 external compression settings
1.63-3.5 inches of adjustable front lift to clear larger tires and level the stance
10-inch aluminum remote reservoirs add cooling for desert running and towing
Built for trucks carrying added front-end weight such as bumpers and winches

What's Included

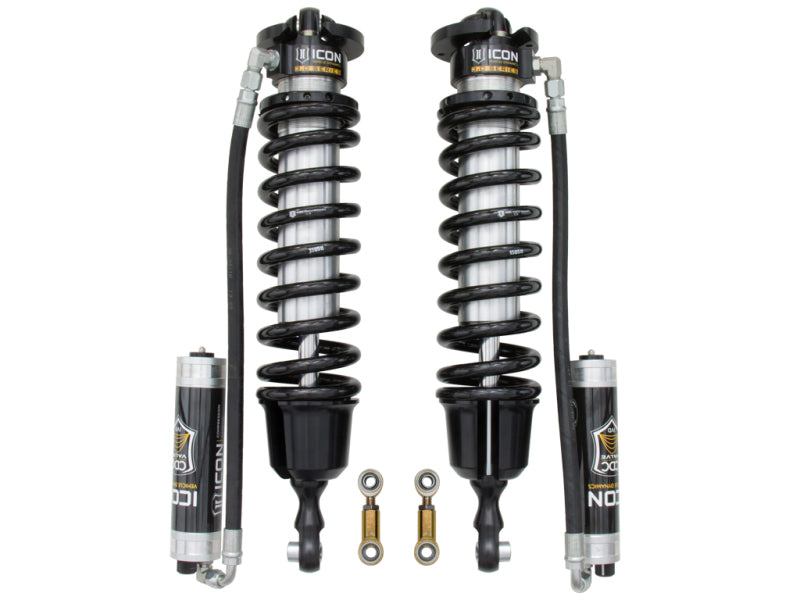

Pair of ICON 3.0 Series VS remote-reservoir CDCV front coilovers (driver and passenger)
ICON-engineered coil springs, preassembled

Specifications

Brand: ICON Vehicle Dynamics
Series: 3.0 Series VS remote reservoir
Valving: ICON CDCV (Compression Damping Control Valve) single-knob adjuster with 10 external compression settings
Lift range: 1.63-3.5 inches of front lift over stock
Position: Front (sold as a pair)
Construction: CNC-machined 6061 aluminum bodies, 7/8-inch induction-hardened chrome shafts, and FK rod-end bearings
Upper control arms: Aftermarket UCAs required

Fitment

Fits the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia. ICON specifies that this 3.0 Series system must be run with aftermarket upper control arms. Does not fit 2022 and newer Tundra or 2023 and newer Sequoia. Requires aftermarket upper control arms; it is not a drop-in for the factory UCA. For a smaller 2.5-inch body that runs on the stock UCA at moderate lift, choose the 58750C.

FAQ

Do I need upper control arms for the 58755?

Yes. ICON specifies this 3.0 Series coilover be used only with aftermarket upper control arms.

How much lift does the 3.0 kit provide?

It offers 1.63 to 3.5 inches of adjustable front lift over stock.

How is the 58755 different from the 58750C?

The 58755 uses the larger 3.0-inch shock body with more oil volume and requires aftermarket UCAs, while the 58750C uses the 2.5-inch body and runs on the factory UCA at moderate lift.
