ICON 2.5 VS IR Front Coilover Kit for 2024+ Toyota Land Cruiser 250

Name: ICON 2.5 VS IR Front Coilover Kit for 2024+ Toyota Land Cruiser 250
Brand: ICON
SKU: 58691
Price: 1518.35 USD
Availability: InStock

$1,518.35 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58691

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Provides 1.25-3 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
2.5-inch internal reservoir shock body adds oil capacity and resists heat fade on long trails
Velocity-sensitive valving tunes damping to terrain for a smooth street ride and firm off-road control
100% rebuildable and revalveable for long service life

The ICON Vehicle Dynamics V.S. 2.5 Series internal-reservoir front coilover kit (MPN 58691) is a bolt-in front suspension upgrade for the 2024-2026 Toyota Land Cruiser, providing 1.25-3 inches of front lift. It replaces the factory front struts with rebuildable, 2.5-inch internal reservoir shocks featuring velocity-sensitive (V.S.) non-adjustable valving for improved ride quality and control on-road and off.

Key Features

Provides 1.25-3 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
2.5-inch internal reservoir shock body adds oil capacity and resists heat fade on long trails
Velocity-sensitive valving tunes damping to terrain for a smooth street ride and firm off-road control
100% rebuildable and revalveable for long service life

What's Included

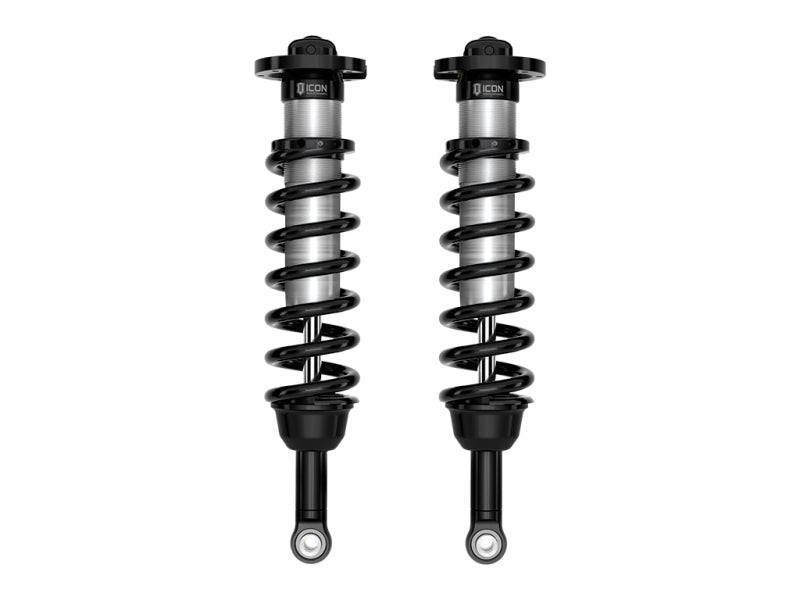

Sold as a front pair of preassembled coilovers (shock and coil spring per side).

Fitment

This kit is a direct front-suspension fit for 2024-2026 Toyota Land Cruiser. ICON Delta Joint Pro front upper control arms are recommended to maintain proper alignment above 2 inches of lift. This is the front coilover kit only; rear shocks are sold separately.

FAQ

How much lift does the ICON 58691 provide?

It provides 1.25-3 inches of front lift, adjustable on the vehicle by turning the coilover's spring collar.

Do I need aftermarket upper control arms?

ICON Delta Joint Pro front upper control arms are recommended to maintain proper alignment above 2 inches of lift.

Is this sold as a pair or a single coilover?

It is sold as a complete front pair (left and right); rear shocks are sold separately.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2024–2026	Toyota	Land Cruiser	—	Front

Specifications

material: billet 6061 aircraft-grade aluminum components with a corrosion-resistant CAD-plated 2.5-inch shock body and 7/8-inch shaft
valve: IR (internal reservoir, vehicle-specific non-adjustable; not CDCV/CDEV)
travel: Standard travel
damping: Velocity-sensitive (V.S.) non-adjustable valving
sold as: front pair with springs
diff drop: ICON front differential drop recommended for maximum travel
reservoir: Internal Reservoir
lift range: 1.25-3 in front
rear shocks: sold separately
product line: ICON V.S. 2.5 Series
front lift range: 1.25-3 inches of front lift
mounting position: Front (sold as a pair)
shock body diameter: 2.5 in
