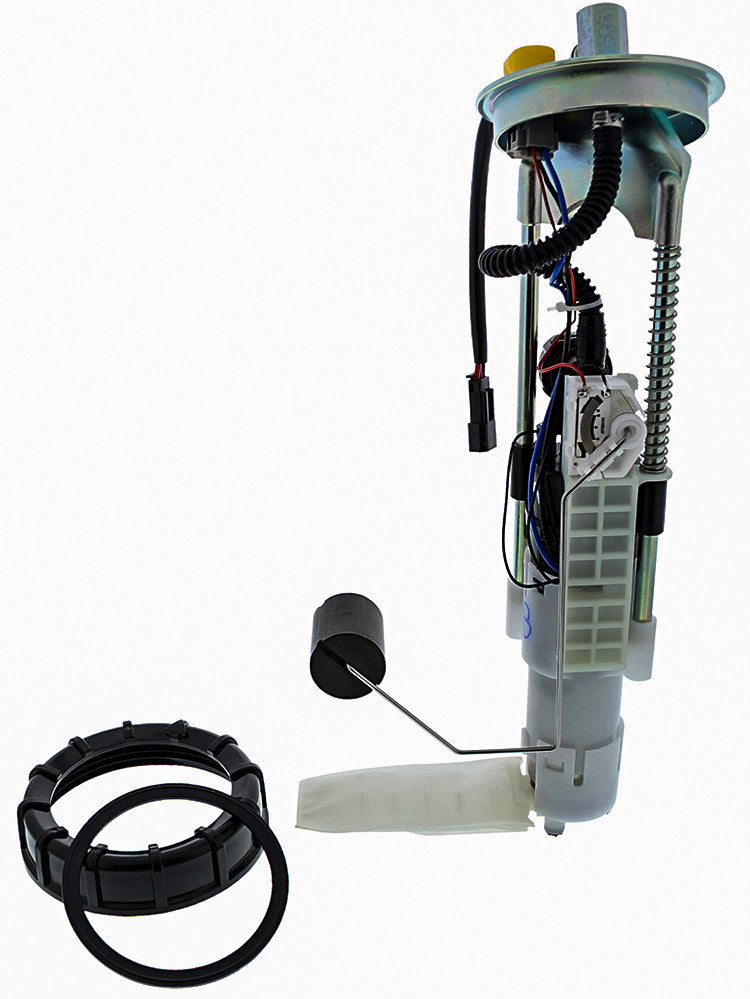

The All Balls Racing 47-1014 Fuel Pump Module is a complete in-tank fuel pump assembly for 2008-2015 Polaris Sportsman 500, 700, and 800 EFI ATVs, including X2, 6x6, Touring, and Forest models, replacing Polaris OEM fuel pump part numbers 2204308 and 2520947. It replaces the entire factory pump module in one step and ships with the tank retaining nut and gasket needed for installation.
Why Choose the All Balls 47-1014
-
Complete drop-in module - replaces the whole in-tank assembly rather than just the pump, so there is no rebuilding of factory internals.
-
Lower current draw - the pump draws less current than the OEM unit while maintaining the same flow rate at working pressure, which reduces operating temperature and extends pump life.
-
Hardware included - comes with the tank retaining nut and gasket for a one-visit install.
-
Verified OEM cross-references - replaces Polaris fuel pump part numbers 2204308 and 2520947.
What's Included
- 1 complete in-tank fuel pump module
- Tank retaining nut
- Tank gasket
Sold as one complete module.
Specifications
-
Brand: All Balls Racing
-
Part number: 47-1014
-
Type: Complete in-tank fuel pump module (full assembly, not a bare pump)
-
Mounting: Drops into the fuel tank using the included retaining nut and gasket
-
Output: Matches the OEM flow rate at working pressure; All Balls does not publish numeric PSI or flow figures for this module
-
Replaces Polaris OEM part numbers: 2204308, 2520947
Fitment
The 47-1014 fits the Polaris Sportsman 800 family: Sportsman 800 EFI 2009-2014, Sportsman 800 HO EFI 2009, Sportsman 800 EFI 6x6 2009-2014, Sportsman 800 EFI 6x6 Forest 2013-2014, Sportsman 800 EFI Forest 2014, Sportsman Forest 800 EFI 2012-2013, Forest 800 6x6 2015, Sportsman X2 800 EFI 2008-2009, and Sportsman Touring 800 EFI 2009.
It fits the Polaris Sportsman 500 family: Sportsman 500 EFI 2008-2009, Sportsman 500 Tractor EFI 2009-2010, Sportsman 500 X2 2009, Sportsman Forest 500 Tractor 2011-2014, and Sportsman Touring 500 2008-2009.
It also fits the 2008 Polaris Sportsman X2 700 EFI.
Does not fit 2005-2007 Sportsman 800 EFI models - this module's coverage begins with the 2008 model year. It is not listed for the carbureted Sportsman 500 H.O., and it is not the module for later Sportsman platforms: 2011-2014 Sportsman 550/850 use All Balls 47-1003, and 2014-2022 Sportsman 450-1000 use All Balls 47-1002.
Is the All Balls 47-1014 a complete fuel pump assembly or just the pump?
It is a complete in-tank fuel pump module. The entire factory assembly is replaced as one unit, and the tank retaining nut and gasket are included.
Which Polaris OEM part numbers does the 47-1014 replace?
It replaces Polaris fuel pump part numbers 2204308 and 2520947.
Will the 47-1014 fit a 2005-2007 Sportsman 800 EFI?
No. Its Sportsman 800 EFI coverage begins with the 2008 model year (X2 800 EFI) and runs through 2014-2015 depending on the trim. 2005-2007 machines are not listed for this part number.
Does the 47-1014 fit carbureted Sportsman 500 models?
No. It is listed for EFI-equipped applications such as the Sportsman 500 EFI and 500 Tractor EFI; the carbureted Sportsman 500 H.O. is not in the application list.
