The All Balls Racing 47-1002 Fuel Pump Module is a complete in-tank fuel pump assembly for 2014-2026 Polaris ATVs, covering the Sportsman 570, 850, and 1000, Scrambler 850 and 1000, and select Hawkeye 325, Sportsman 325/450/550, Touring, and Forest models. It replaces the entire factory pump module in one step and ships with the tank retaining nut and gasket needed for installation.
Why Choose the All Balls 47-1002
-
Complete drop-in module - replaces the whole in-tank assembly rather than just the pump, so there is no rebuilding of factory internals.
-
Lower current draw - the pump draws less current than the OEM unit while maintaining the same flow rate at working pressure, which reduces operating temperature and extends pump life.
-
Hardware included - comes with the tank retaining nut and gasket for a one-visit install.
-
OEM cross-reference coverage - replaces Polaris fuel pump part numbers 2205469, 2207670, 2208325, 2208326, 2208595, 2208596, 2521706, and 2522236.

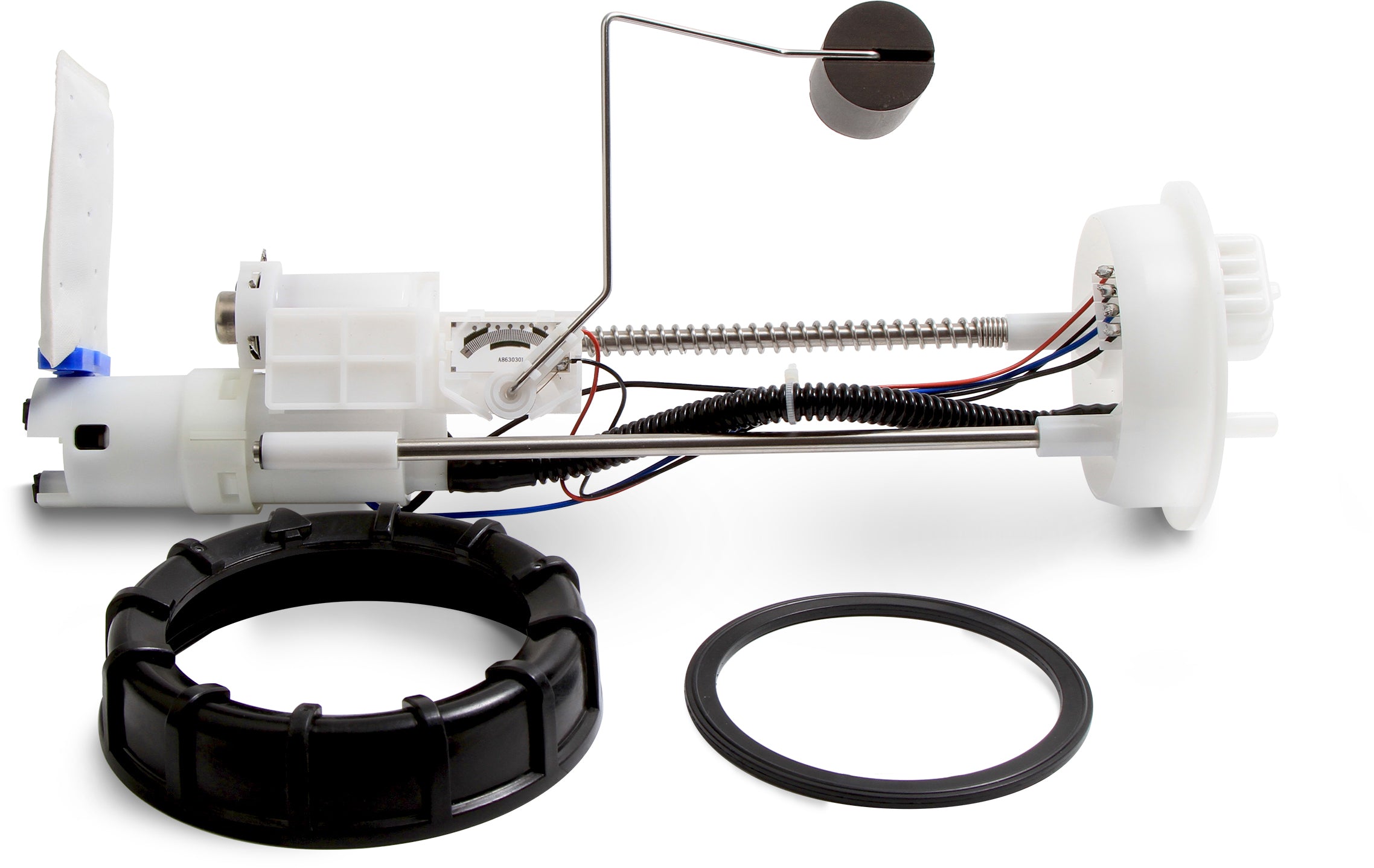

What's Included
- 1 complete in-tank fuel pump module
- Tank retaining nut
- Tank gasket
Sold as one complete module.
Specifications
-
Brand: All Balls Racing
-
Part number: 47-1002
-
Type: Complete in-tank fuel pump module (full assembly, not a bare pump)
-
Mounting: Drops into the fuel tank using the included retaining nut and gasket
-
Output: Matches the OEM flow rate at working pressure; All Balls does not publish numeric PSI or flow figures for this module
-
Replaces Polaris OEM part numbers: 2205469, 2207670, 2208325, 2208326, 2208595, 2208596, 2521706, 2522236
Fitment
The 47-1002 fits 2014-2016 Polaris Sportsman 570 models (EFI, EPS, SP, HD, UTE, X2, Touring, and Forest trims), the Polaris Scrambler 850 from 2015 through 2026, and the Scrambler 1000 family (XP HO EPS 2014-2015, MD 2015-2017, XP 2015-2018, XP EU 2015-2020, Tractor 2016-2019, ZUG 2017-2019). It fits the Polaris Sportsman 850 family from 2015 through 2026, including SP, High Lifter, Premium, Trail, Mud Edition, and Touring variants, and the Sportsman 1000 family from 2015 through 2026, including XP, High Lifter, Tractor, ZUG, Hunt, Mud, S, and Ultimate editions plus Sportsman Touring 1000 (2015-2025). It also fits the 2015 Sportsman 325 ETX EFI and Hawkeye 325 2x4 and the 2016 Sportsman 450 and 450 HO models.
Is the All Balls 47-1002 a complete fuel pump assembly or just the pump?
It is a complete in-tank fuel pump module. The entire factory assembly is replaced as one unit, and the tank retaining nut and gasket are included.
Which Polaris OEM part numbers does the 47-1002 replace?
It replaces Polaris fuel pump part numbers 2205469, 2207670, 2208325, 2208326, 2208595, 2208596, 2521706, and 2522236.
What is the flow rate or fuel pressure of the 47-1002?
All Balls does not publish numeric PSI or flow figures for this module. It is designed to maintain the OEM flow rate at working pressure while drawing less current than the original pump.
Does the 47-1002 fit a 2017 or newer Sportsman 570?
No. Its Sportsman 570 coverage runs 2014-2016 only; 2017-and-newer 570s are not listed for this part number.
