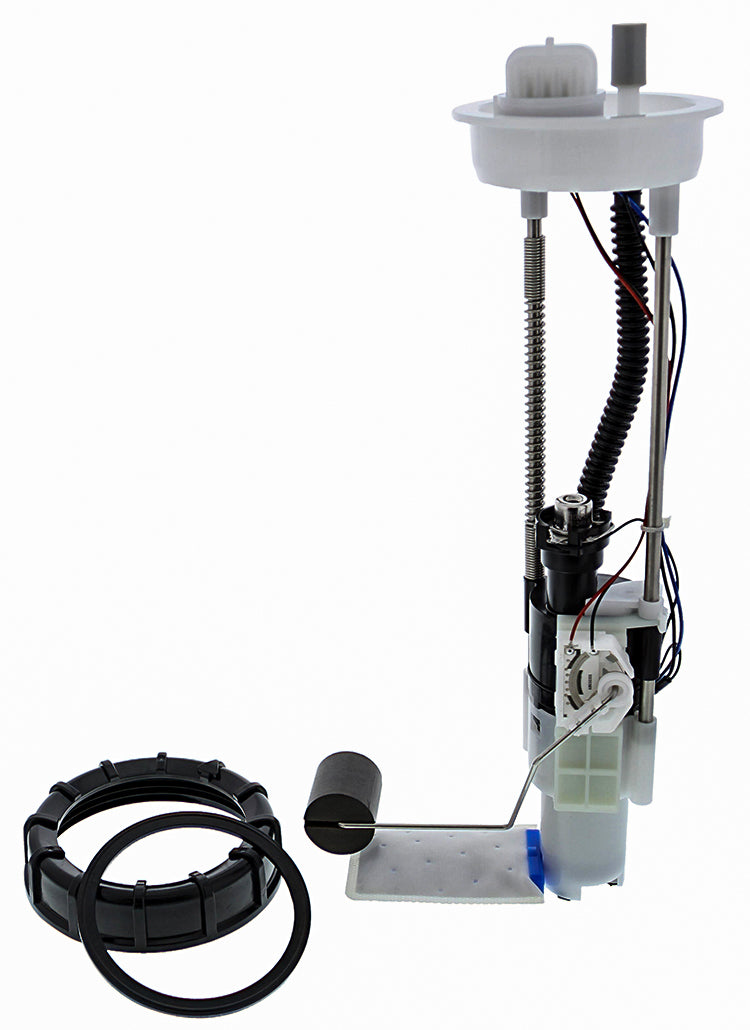

The All Balls Racing 47-1003 Fuel Pump Module is a complete in-tank fuel pump assembly for 2011-2014 Polaris Sportsman 550 and Sportsman 850 ATVs and 2013-2014 Scrambler 850 models, replacing Polaris OEM fuel pump part number 2204401. It replaces the entire factory pump module in one step and ships with the tank retaining nut and gasket needed for installation.
Why Choose the All Balls 47-1003
-
Complete drop-in module - replaces the whole in-tank assembly rather than just the pump, so there is no rebuilding of factory internals.
-
Lower current draw - the pump draws less current than the OEM unit while maintaining the same flow rate at working pressure, which reduces operating temperature and extends pump life.
-
Hardware included - comes with the tank retaining nut and gasket for a one-visit install.
-
Verified OEM cross-reference - replaces Polaris fuel pump part number 2204401.
What's Included
- 1 complete in-tank fuel pump module
- Tank retaining nut
- Tank gasket
Sold as one complete module.
Specifications
-
Brand: All Balls Racing
-
Part number: 47-1003
-
Type: Complete in-tank fuel pump module (full assembly, not a bare pump)
-
Mounting: Drops into the fuel tank using the included retaining nut and gasket
-
Output: Matches the OEM flow rate at working pressure; All Balls does not publish numeric PSI or flow figures for this module
-
Replaces Polaris OEM part number: 2204401
Fitment
The 47-1003 fits the Polaris Sportsman 550 family: base Sportsman 550 2011-2013, Sportsman 550 EPS 2011-2014, Sportsman 550 X2 2011-2014, Sportsman 550 XP 2013-2014, Sportsman Forest 550 2011-2014, and Sportsman Touring 550 EPS 2011-2014.
It fits the Polaris Sportsman 850 family: Sportsman XP 850 2011-2013, Sportsman XP 850 EPS 2011-2014, Sportsman X2 850 2011, Sportsman Touring EPS 850 2011-2013, Sportsman Touring EPS 850 HO 2013, Sportsman Touring 850 EPS and INTL 2014, Sportsman Forest 850 2011-2014, and the 2014 Sportsman 850 WV.
It fits the Polaris Scrambler 850 HO/EPS 2013-2014, Scrambler 850 XP HO EPS 2014, and Scrambler 850 XP HO EPS INTL 2014.
Does not fit 2009-2010 Polaris Sportsman 550 models - this module's coverage begins with the 2011 model year. It is also not listed for 2015-and-later Sportsman 850 or Scrambler 850 machines; those use All Balls 47-1002.
Is the All Balls 47-1003 a complete fuel pump assembly or just the pump?
It is a complete in-tank fuel pump module. The entire factory assembly is replaced as one unit, and the tank retaining nut and gasket are included.
Which Polaris OEM part number does the 47-1003 replace?
It replaces Polaris fuel pump part number 2204401.
Will the 47-1003 fit a 2009 or 2010 Sportsman 550?
No. The 47-1003 is listed for Sportsman 550 models from 2011 onward (2011-2013 base, 2011-2014 EPS, X2, Forest, and Touring). 2009-2010 machines are not listed for this part number.
What fuel pump fits 2015 and newer Sportsman 850 models?
Not this one - the 47-1003 ends at the 2014 model year. For 2015-2022 Sportsman 850 and Scrambler 850 machines, All Balls lists the 47-1002 module, also sold in this store.
