ICON Stage 3 Suspension System for 95.5-04 Toyota Tacoma 4WD

Name: ICON Stage 3 Suspension System for 95.5-04 Toyota Tacoma 4WD
Brand: ICON
SKU: K53013
Price: 2760.4 USD
Availability: InStock

$2,760.40 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53013

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0-3" of adjustable front lift to fit larger wheels and tires
2.5" remote reservoir coilovers resist heat fade on long off-road runs
Vehicle-specific valving balances ride quality front to rear
ICON-engineered Eibach springs for precise feel through travel
2.0 aluminum series remote reservoir rear shocks for added control
1.5" rear add-a-leaf kit levels the stance and supports added load
100% bolt-on install with no drilling, cutting, or welding

Transform your first-generation Toyota Tacoma with the ICON Vehicle Dynamics Stage 3 Suspension System. Engineered for the serious driver, this complete front and rear package maximizes wheel travel and damping control for outstanding ride quality and capability on the highway and off the beaten path.

Key Benefits

0-3" of adjustable front lift to clear larger, more aggressive wheel and tire combinations
2.5" remote reservoir coilovers deliver superior cooling and fade-free damping on demanding terrain
Vehicle-specific tuned valving front to rear for a balanced, controlled ride
ICON-engineered Eibach coil springs provide precise feel through the full range of travel
100% bolt-on installation with no drilling, cutting, or welding

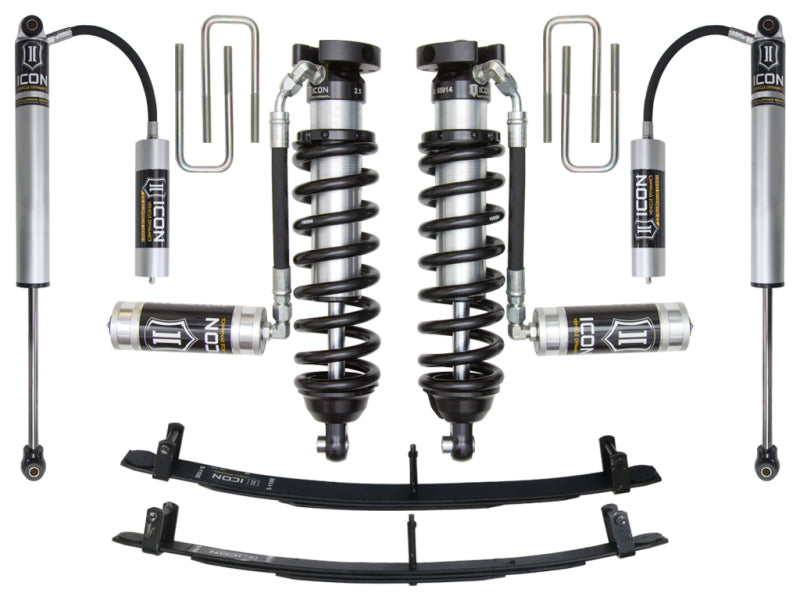

What's Included

(1) 2.5" Remote Reservoir Front Coilover Shocks with Eibach coil springs (height adjustable 0-3")
(2) 2.0 Aluminum Series Remote Reservoir Rear Shocks
(1) 1.5" Rear Add-A-Leaf Kit

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53013
Front Lift: 0-3" adjustable
Front Shocks: 2.5" diameter, remote reservoir coilover
Rear Shocks: 2.0" Aluminum Series, remote reservoir
Springs: ICON-engineered Eibach
Installation: 100% bolt-on

Fitment

Fits the 1995.5-2004 Toyota Tacoma in 4WD and PreRunner configurations. Will not fit 2WD Tacoma models with 5-lug wheel studs. Aftermarket upper control arms are recommended for maximum alignment range and performance but are sold separately.

1995.5-2004 Toyota Tacoma 4WD
1995.5-2004 Toyota Tacoma PreRunner

FAQ

Does this ICON Stage 3 system fit a 2WD Tacoma?

No. It fits the 1995.5-2004 Toyota Tacoma in 4WD and 6-lug PreRunner form only and will not fit 2WD Tacoma with 5-lug wheel studs. It does not fit the 2005 and newer second-generation Tacoma.

How much lift does the ICON K53013 provide?

The front coilovers are height-adjustable up to 3 inches with about 1.5 inches of rear lift from the add-a-leaf. Larger tires are supported up to 33x11.50, and fender trimming may be required beyond that.

What is the difference between this Stage 3 system and the other ICON Tacoma stages?

Stage 3 upgrades the front coilovers to remote-reservoir over Stage 2's internal-reservoir units.
