ICON Stage 2 Suspension System for 1995.5-2004 Toyota Tacoma 4WD

Name: ICON Stage 2 Suspension System for 1995.5-2004 Toyota Tacoma 4WD
Brand: ICON
SKU: K53012
Price: 2406.8 USD
Availability: InStock

$2,406.80 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53012

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adjustable 0-3 inch front lift fits larger wheel and tire setups
2.5 inch internal-reservoir coilovers stay cool for fade-free damping
Eibach coil springs tuned for a smooth, controlled ride
2.0 Series remote-reservoir rear shocks balance the truck front to rear
Included 1.5 inch add-a-leaf restores rear ride height and capacity
Complete matched front and rear system, no guesswork
100% bolt-on, no drilling, cutting, or welding required

Take your 1995.5-2004 Toyota Tacoma from stock to trail-ready with the ICON Vehicle Dynamics Stage 2 Suspension System (K53012). This complete front-and-rear package delivers up to 3 inches of front lift while dramatically improving wheel travel, damping, and ride quality on and off the pavement.

Key Benefits

Height-adjustable 0-3 inch front lift to clear larger wheel and tire combinations
Vehicle-specific tuned 2.5 inch coilovers with internal reservoir for cooler, more consistent damping
Eibach coil springs engineered for superior feel through the full range of travel
2.0 Series aluminum remote-reservoir rear shocks balance the truck front to rear
1.5 inch add-a-leaf restores rear height and load capacity
100% bolt-on installation with no drilling, cutting, or welding

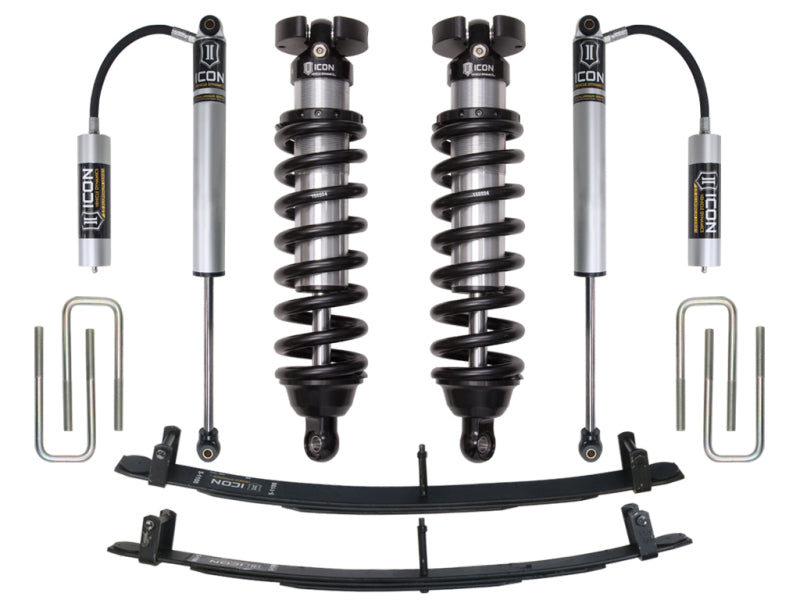

What's Included

Pair of front 2.5 inch VS internal-reservoir coilovers with Eibach springs
Pair of 2.0 Series VS remote-reservoir rear shocks
1.5 inch add-a-leaf kit
Mounting hardware

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53012
System: Stage 2
Front lift: 0-3 inches (adjustable)
Front shock: 2.5 inch coilover, internal reservoir
Rear shock: 2.0 Series, remote reservoir
Position: Front and rear (complete system)
Install: 100% bolt-on

Fitment

Engineered specifically for the 1995.5-2004 Toyota Tacoma 4WD and PreRunner. Does not fit 2WD models with five-lug wheel studs. Aftermarket upper control arms are not included; ICON offers optional Delta Joint UCAs for maximized travel and alignment correction.

1995.5-2004 Toyota Tacoma (4WD / PreRunner)

FAQ

Does this ICON Stage 2 system fit a 2WD Tacoma?

No. It fits the 1995.5-2004 Toyota Tacoma in 4WD and 6-lug PreRunner form only and will not fit 2WD Tacoma with 5-lug wheel studs. It does not fit the 2005 and newer second-generation Tacoma.

How much lift does the ICON K53012 provide?

The front coilovers are height-adjustable up to 3 inches with about 1.5 inches of rear lift from the add-a-leaf. Larger tires are supported up to 33x11.50, and fender trimming may be required beyond that.

What is the difference between this Stage 2 system and the other ICON Tacoma stages?

Stage 2 adds a 1.5 inch rear add-a-leaf and upgrades the rear shocks to 2.0 remote-reservoir over Stage 1.
