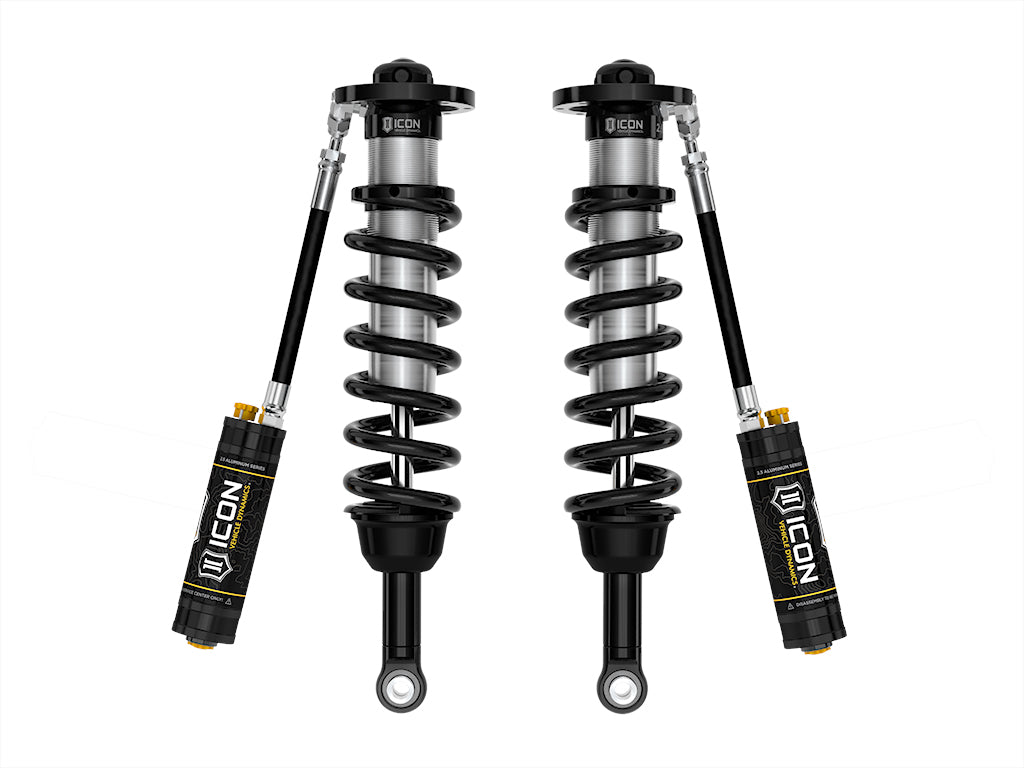

ICON 2.5 VS RR CDCV Front Coilover Kit for 2025-2026 Toyota 4Runner

Take command of your 2025-2026 Toyota 4Runner 4WD with the ICON Vehicle Dynamics 58795C front coilover kit. These 2.5 Series VS (Velocity Sensitive) remote-reservoir coilovers feature ICON's exclusive Compression Damping Control Valve (CDCV) technology, letting you dial in the perfect tune for the street, the rock crawl, or wide-open desert running.

Key Benefits

• 1.25 to 3 inches of adjustable front lift for larger, more aggressive wheel and tire combinations
• CDCV technology with 10 compression settings for on-the-fly ride tuning
• 2.5 Series remote reservoirs add fluid capacity and cooling for fade-free performance
• Velocity Sensitive valving balances comfort and control across varied terrain
• ICON-engineered coil springs matched to the 4Runner chassis

What's Included

• Pair of front 2.5 Series VS remote-reservoir coilovers
• ICON-engineered coil springs (pre-assembled)
• CDCV adjusters
• Mounting hardware

Specifications

• Series: 2.5 VS RR (remote reservoir)
• Valve type: CDCV (manual compression damping control, 10 settings)
• Position: Front (pair)
• Lift range: 1.25 to 3 inches adjustable
• Recommended tire: 33 x 11.50 in (trimming may be required for larger)
• 4WD models require ICON front differential drop kit 55160 (sold separately)
• ICON Delta Joint Pro upper control arms recommended above 2 inches of lift
• Rear shocks sold separately; not compatible with AVS-equipped vehicles; ADAS recalibration required after install

Fitment

Engineered specifically for the 6th-generation Toyota 4Runner 4WD. Front application only.

• 2025-2026 Toyota 4Runner 4WD
