ICON 2.5 Ext Travel CDCV Front Coilover Kit for 96-04 Toyota Tacoma

Name: ICON 2.5 Ext Travel CDCV Front Coilover Kit for 96-04 Toyota Tacoma
Brand: ICON
SKU: 58715C-700
Price: 2412.75 USD
Availability: InStock

$2,412.75 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58715C-700

Available to order — typically ships in ~1–2 weeks

Calculated shipping — oversized item
Typically ships in ~1–2 weeks
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Provides 0-3 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDCV manual adjuster gives 10 external compression settings to tune the ride by hand
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

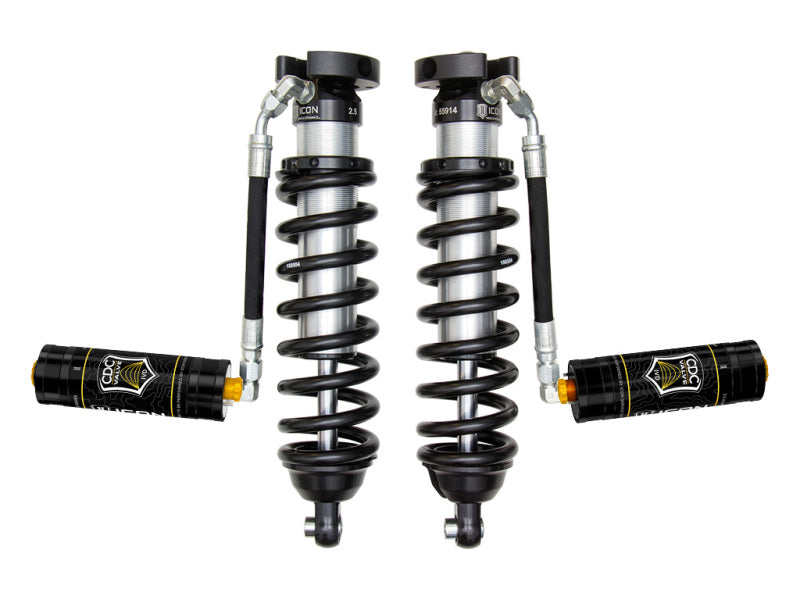

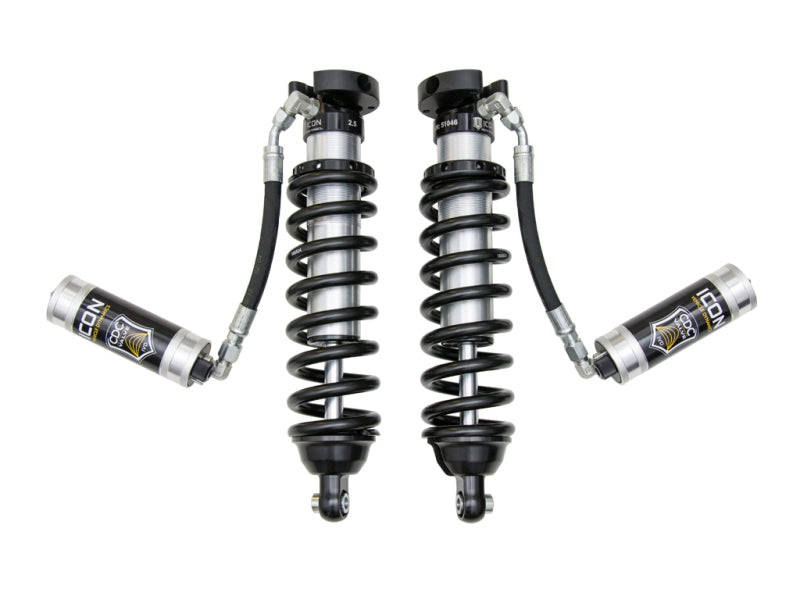

The ICON Vehicle Dynamics V.S. 2.5 Series remote-reservoir extended-travel CDCV front coilover kit (MPN 58715C-700) is a bolt-in front suspension upgrade for the 1996-2004 Toyota Tacoma, providing 0-3 inches of front lift. It replaces the factory front struts with rebuildable, 2.5-inch remote reservoir shocks featuring CDCV manual compression adjuster with 10 external settings for improved ride quality and control on-road and off.

Key Features

Provides 0-3 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDCV manual adjuster gives 10 external compression settings to tune the ride by hand
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

What's Included

Sold as a front pair of preassembled CDCV coilovers with 700 lb/in coil springs.

Fitment

This kit is a direct front-suspension fit for 1996-2004 Toyota Tacoma. Its extended-travel length requires aftermarket front upper control arms. This is the front coilover kit only; rear shocks are sold separately. Does not fit 2WD Tacoma models with 5 lug studs; this kit is for 4WD and Prerunner models only.

FAQ

How much lift does the ICON 58715C-700 provide?

It provides 0-3 inches of front lift, adjustable on the vehicle by turning the coilover's spring collar.

Do I need aftermarket upper control arms?

Yes. The extended-travel length of the 58715C-700 requires aftermarket front upper control arms for correct alignment and clearance.

Is this sold as a pair or a single coilover?

It is sold as a complete front pair (left and right); rear shocks are sold separately.

Vehicle Fitment

Years	Make	Model	Submodel	Position
1996–2004	Toyota	Tacoma	—	Front

Specifications

material: billet 6061 aircraft-grade aluminum components with a corrosion-resistant CAD-plated 2.5-inch shock body and a 7/8-inch induction-hardened, chrome-plated shaft
lug: 6-lug (4WD/PreRunner) only
travel: Extended travel
damping: CDCV manual compression adjuster with 10 external settings
sold as: pair (front)
reservoir: Remote Reservoir
front lift: 0-3in
shock body: 2.5 inch V.S. Series extended travel
spring rate: 700 lb/in
product line: ICON V.S. 2.5 Series
front lift range: 0-3 inches of front lift
mounting position: Front (sold as a pair)
requires aftermarket uca: Yes
