ICON V.S. 2.5 Ext Travel Front Coilovers for 96-04 Toyota Tacoma

Name: ICON V.S. 2.5 Ext Travel Front Coilovers for 96-04 Toyota Tacoma
Brand: ICON
SKU: 58715
Price: 1871.95 USD
Availability: InStock

$1,871.95 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58715

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Provides 0-3 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
Velocity-sensitive valving tunes damping to terrain for a smooth street ride and firm off-road control
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

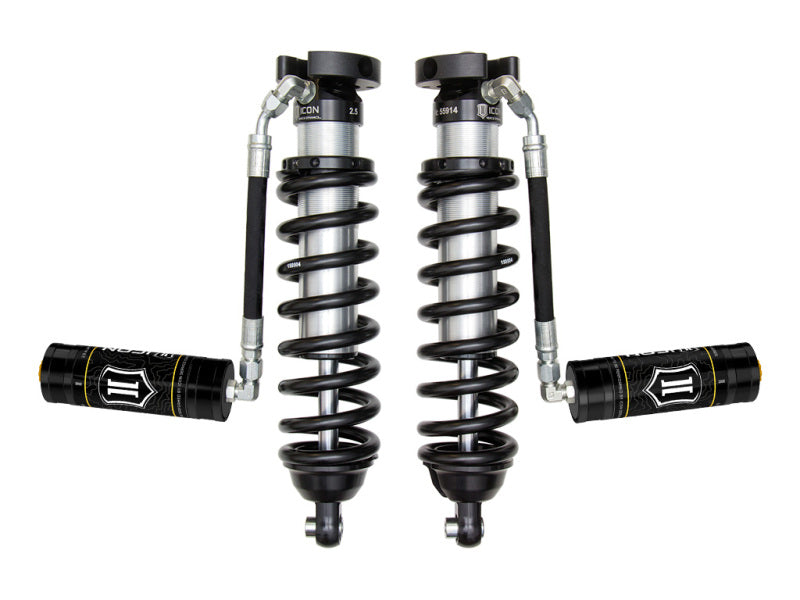

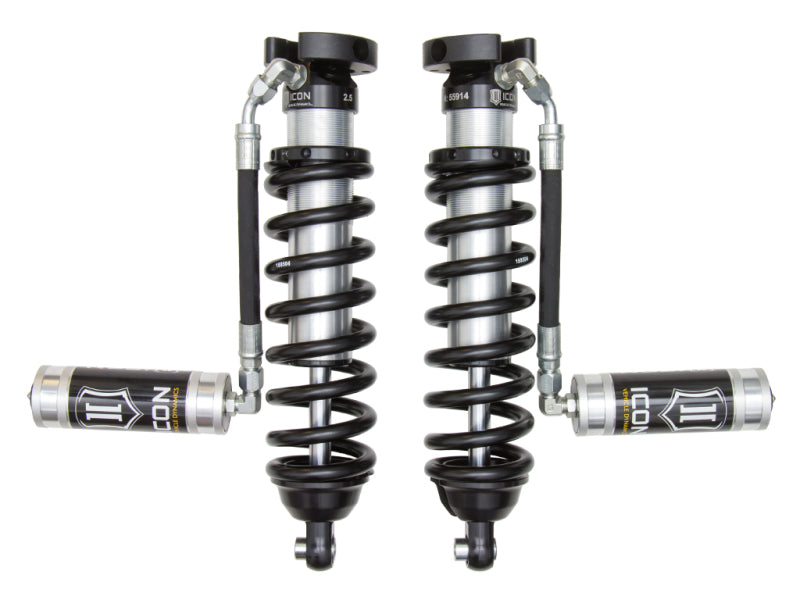

The ICON Vehicle Dynamics V.S. 2.5 Series remote-reservoir extended-travel front coilover kit (MPN 58715) is a bolt-in front suspension upgrade for the 1996-2004 Toyota Tacoma, providing 0-3 inches of front lift. It replaces the factory front struts with rebuildable, 2.5-inch remote reservoir shocks featuring velocity-sensitive (V.S.) non-adjustable valving for improved ride quality and control on-road and off.

Key Features

Provides 0-3 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
Velocity-sensitive valving tunes damping to terrain for a smooth street ride and firm off-road control
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

What's Included

Sold as a front pair of preassembled coilovers with 700 lb/in coil springs.

Fitment

This kit is a direct front-suspension fit for 1996-2004 Toyota Tacoma. Its extended-travel length requires aftermarket front upper control arms. This is the front coilover kit only; rear shocks are sold separately. Does not fit 2WD Tacoma models with 5 lug studs; this kit is for 4WD and Prerunner models only.

FAQ

How much lift does the ICON 58715 provide?

It provides 0-3 inches of front lift, adjustable on the vehicle by turning the coilover's spring collar.

Do I need aftermarket upper control arms?

Yes. The extended-travel length of the 58715 requires aftermarket front upper control arms for correct alignment and clearance.

Is this sold as a pair or a single coilover?

It is sold as a complete front pair (left and right); rear shocks are sold separately.

Vehicle Fitment

Years	Make	Model	Submodel	Position
1996–2004	Toyota	Tacoma	—	Front

Specifications

material: billet 6061 aircraft-grade aluminum components with a corrosion-resistant CAD-plated 2.5-inch shock body and a 7/8-inch induction-hardened, chrome-plated shaft
valve: VS
series: V.S. 2.5 Extended Travel
travel: Extended travel
damping: Velocity-sensitive (V.S.) non-adjustable valving
sold as: front pair
reservoir: Remote Reservoir
lift range: 0-3 inches
shock body: 2.5 inch remote reservoir
rear shocks: sold separately
spring rate: 700 lb/in
uca required: aftermarket front upper control arms required
front lift range: 0-3 inches of front lift
mounting position: Front (sold as a pair)
