ICON Stage 2 EXP Suspension System for 07-21 Toyota Tundra

Transform the ride and stance of your 2007-2021 Toyota Tundra with the ICON Stage 2 EXP Suspension System (K53227). This bolt-on package pairs ICON's race-proven 2.5 EXP series front coilovers with matched rear damping to deliver up to 2.25 inches of front lift and 1.5 inches of rear lift, leveling the truck and adding off-road capability without sacrificing factory towing and payload.

Key Benefits

• 2.5 EXP series front coilovers deliver superior heat management and consistent damping on long off-road runs
• 0-2.25 inches of front lift levels the stance and improves approach angle
• 1.5 inches of rear lift while maintaining factory load and towing capacity
• Clears up to 35-inch tires for a more aggressive footprint
• Complete front-and-rear system for balanced ride quality and control
• Reuses factory coil springs and hardware for a true bolt-on install

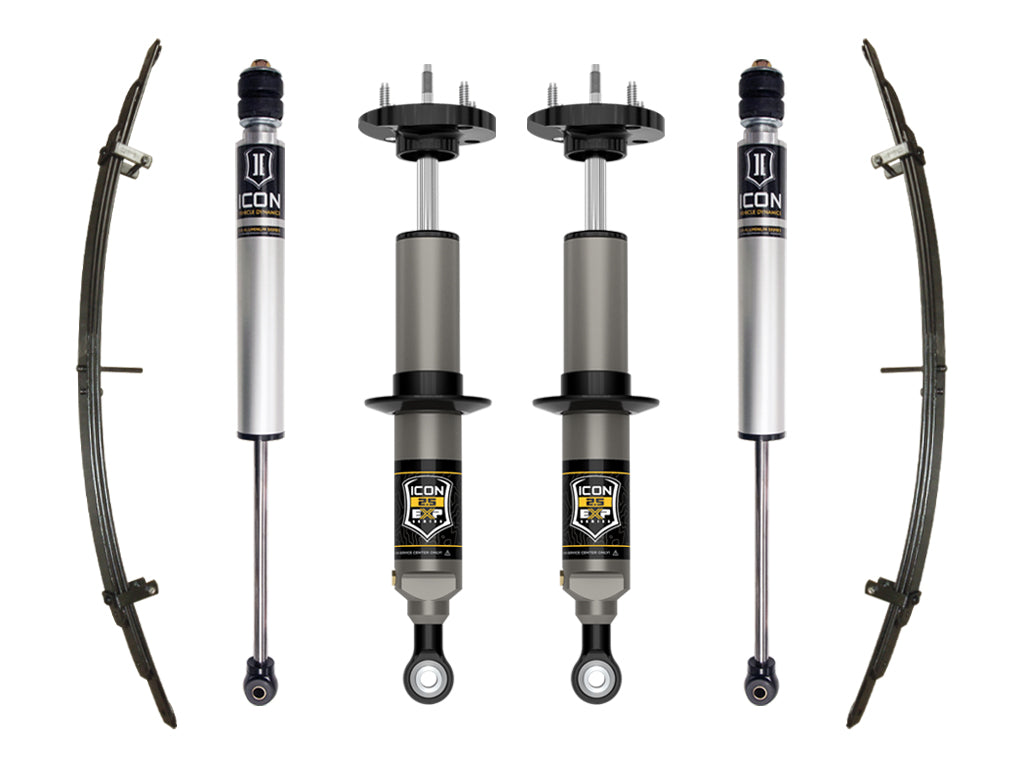

What's Included

• 2x ICON 2.5 EXP series front coilover shocks with internal reservoirs
• 2x ICON 2.0 aluminum series rear shocks
• 1x rear leaf spring expansion pack (add-a-leaf)
• Mounting hardware

Specifications

• Front lift: 0-2.25 inches
• Rear lift: 1.5 inches
• Front shock: 2.5 EXP series coilover with internal reservoir
• Rear shock: 2.0 aluminum series monotube, nitrogen charged
• Valving: non-adjustable (fixed performance tune)
• Max tire size: up to 35 inches (minor trimming may be required)
• Upper control arms: factory UCAs retained, no aftermarket arms required

Fitment

Fits all 2007-2021 Toyota Tundra cab and drive configurations (Regular, Double, and CrewMax; 2WD and 4WD). Not compatible with TRD Pro models or the rear TRD sway bar kit.

• 2007-2021 Toyota Tundra (front and rear)
