ICON Stage 1 EXP Suspension System for 07-21 Toyota Tundra

Upgrade your 2007-2021 Toyota Tundra with the ICON Vehicle Dynamics Stage 1 EXP Suspension System (K53226) - an entry-level performance package that bridges the gap between spacer lifts and full threaded-body coilovers without breaking the bank.

Key Benefits

• Levels the front end and delivers 0-2.25in of lift to eliminate factory rake and improve stance
• Reuses your factory coil springs to keep cost down while transforming ride quality
• Rebuildable 2.5 EXP Series front shocks with internal reservoirs for consistent on- and off-road performance
• Clears up to 35in tires (Body Mount Mod may be required at full compression)
• 100% bolt-on installation - no drilling, cutting, or welding required

What's Included

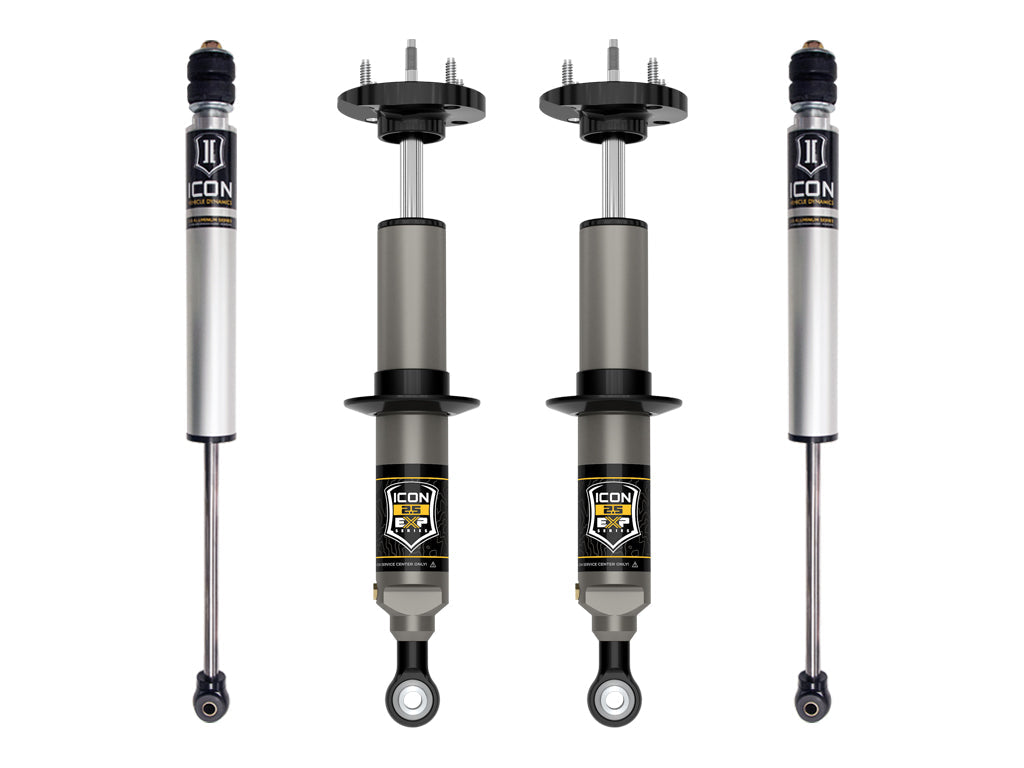

• Two (2) 2.5 EXP Series front coilover shocks with internal reservoirs
• Two (2) 2.0 Aluminum Series nitrogen-charged monotube rear shocks
• All necessary mounting hardware

Specifications

• Front lift: 0-2.25in (snap-ring height adjustable)
• Rear lift: 0-1.5in over stock
• Front shock: 2.5 EXP Series, internal reservoir, reuses factory coil spring
• Rear shock: 2.0 Aluminum Series monotube
• Recommended tire: 34in with 5in backspacing
• Recommended wheel: 17x8.5in, 5.75in backspace / 25mm offset
• Stock upper control arms retained - no aftermarket UCAs required for Stage 1

Fitment

Fits all 2007-2021 Toyota Tundra cab and drivetrain configurations (Standard Cab, Double Cab, CrewMax; 2WD and 4x4). Not compatible with TRD Pro package models.

• 2007-2021 Toyota Tundra (front and rear)
