ICON RXT Stage 1 Rear Suspension System for 2007-2021 Toyota Tundra

Name: ICON RXT Stage 1 Rear Suspension System for 2007-2021 Toyota Tundra
Brand: ICON
SKU: K53155
Price: 3401.18 USD
Availability: InStock

$3,401.18 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53155

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Up to 20% more rear wheel travel than stock for a smoother, more controlled ride
Three user-adjustable leaf spring rates to tune for towing, hauling, or trail use
ICON 2.5 Aluminum Series rear shocks are fully rebuildable and revalveable
Hydraulic rear bump stop kit absorbs hard impacts and protects the chassis
Complete standalone system with leaf springs, shocks, bump stops, and U-bolts
Direct bolt-in to OEM spring and bump stop locations for straightforward installation
Race-proven ICON Vehicle Dynamics engineering and build quality

The ICON K53155 RXT Stage 1 Rear Suspension System is a bolt-in rear-only kit for the 2007-2021 Toyota Tundra, replacing the factory leaf packs with RXT multi-rate leaf springs, 2.5 Aluminum Series rear shocks, a hydraulic bump-stop kit, and U-bolts.

Key Benefits

Up to 20% more rear wheel travel over stock without sacrificing up-travel

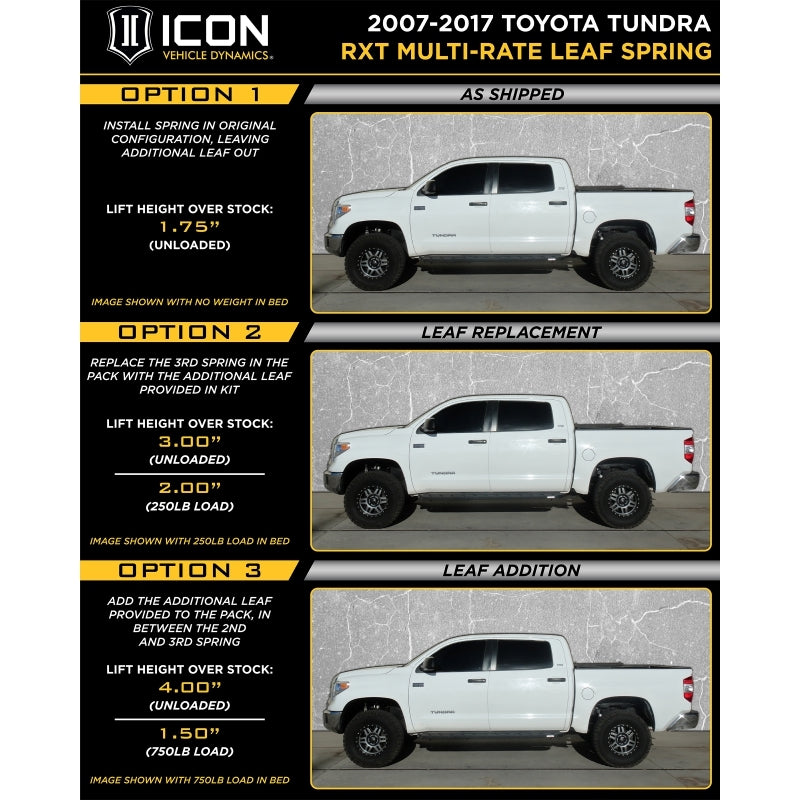

RXT multi-rate leaf springs offer three user-adjustable spring rates to match your load and setup
2.5 Aluminum Series rear shocks are fully rebuildable and revalveable for long-term serviceability
Hydraulic rear bump stop kit smooths out big hits and protects the chassis
Direct bolt-in to OEM spring and bump stop locations

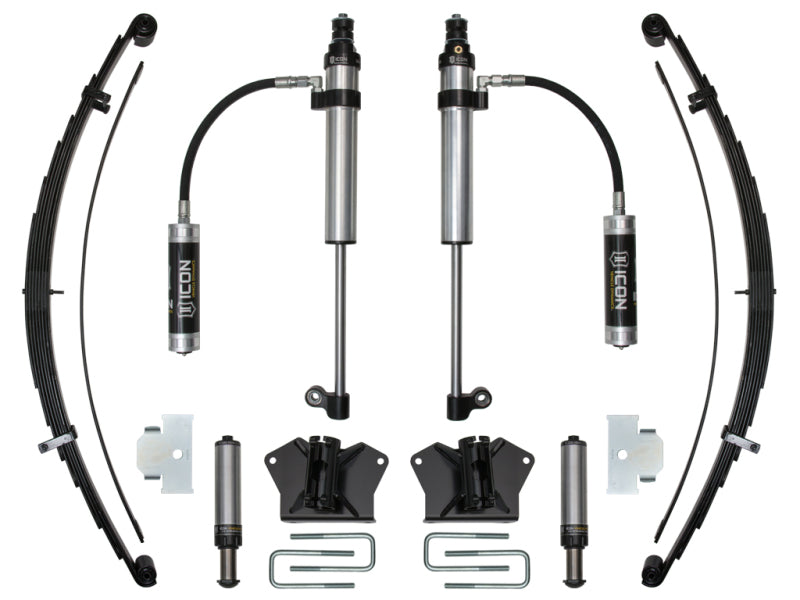

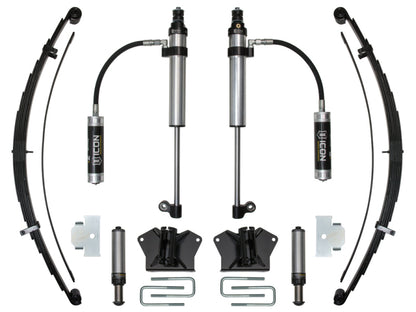

What's Included

ICON RXT multi-rate leaf springs (pair)
ICON RXT rear 2.5 Aluminum Series shocks (pair)
ICON hydraulic rear bump stop kit
Toyota rear 8.0 in. U-bolt kit

Specifications

Position: Rear
Shock body: 2.5 in. Aluminum Series, rebuildable and revalveable
Leaf spring: RXT multi-rate, three adjustable rates
Rear wheel travel: up to 20% over stock
Recommended max tire: 35 x 12.50 in. (trimming may be required)

Fitment

This system is engineered for the rear of the 2007-2021 (2nd generation) Toyota Tundra. It is a standalone kit and must not be combined with other aftermarket rear suspension kits. Not compatible with the TRD rear sway bar kit.

2007-2021 Toyota Tundra (rear)

FAQ

Is the ICON K53155 a front and rear kit?

No. K53155 is a rear-only RXT system with multi-rate leaf springs, 2.5 rear shocks, a hydraulic bump-stop kit, and U-bolts for the 2007-2021 Tundra. It does not include front components.

Does the ICON K53155 fit a Toyota Sequoia?

No. It is built for the 2007-2021 Tundra leaf-spring rear suspension. The second-generation Sequoia uses a coil-sprung rear and is not compatible.

Are the ICON K53155 leaf springs adjustable?

Yes. The RXT multi-rate leaf springs offer three user-selectable spring rates to tune for daily driving, towing, or trail use.
