ICON Stage 2 Suspension System for 00-06 Tundra / 01-07 Sequoia

Name: ICON Stage 2 Suspension System for 00-06 Tundra / 01-07 Sequoia
Brand: ICON
SKU: K53032
Price: 2180.2 USD
Availability: InStock

$2,180.20 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53032

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Height-adjustable 2.5" coilovers provide 0-2.5" of front lift for a leveled, capable stance
Internal-reservoir coilovers resist heat fade for consistent control on long off-road runs
Vehicle-specific tuned valving blends on-road comfort with off-road performance
Complete front-and-rear package with 2.0 VS rear shocks and rear add-a-leaf
Makes room for larger, more aggressive wheel and tire combinations
100% bolt-on with no drilling, cutting, or welding required
No aftermarket upper control arms needed for installation

Transform the ride and stance of your 2000-2006 Toyota Tundra or 2001-2007 Sequoia with the ICON Vehicle Dynamics K53032 Stage 2 Suspension System. This complete front-and-rear package delivers up to 2.5 inches of adjustable front lift, improved off-road performance, and the clearance to run larger wheel and tire combinations.

Key Benefits

Height-adjustable 2.5" coilovers dial in 0-2.5" of front lift for a leveled, aggressive stance
Internal reservoir coilovers shed heat for fade-resistant performance on rough terrain
Vehicle-specific tuned valving balances on-road comfort with off-road control
Clears larger wheel and tire setups for added capability and presence
100% bolt-on installation with no drilling, cutting, or welding

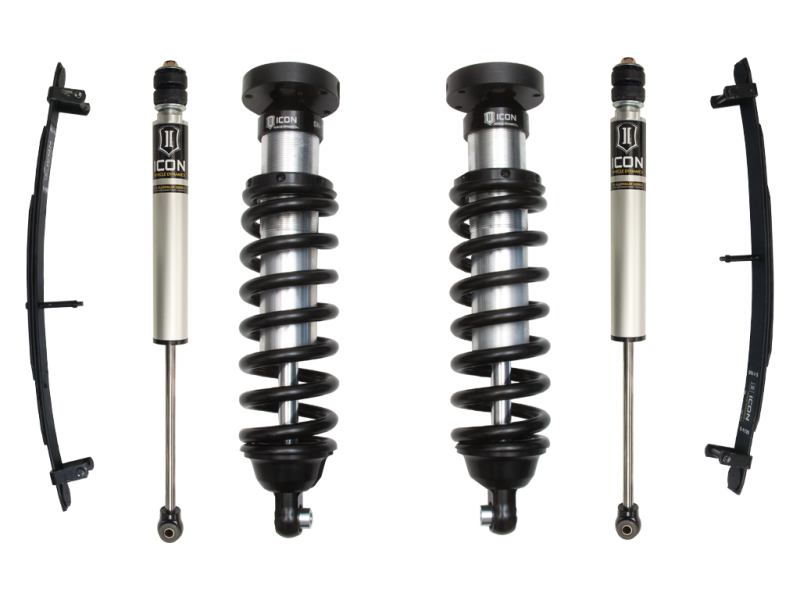

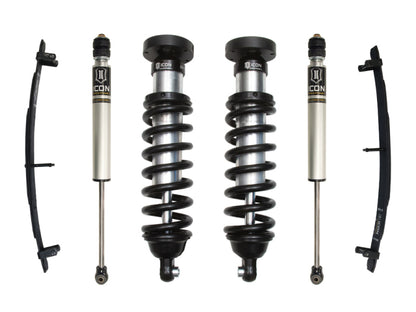

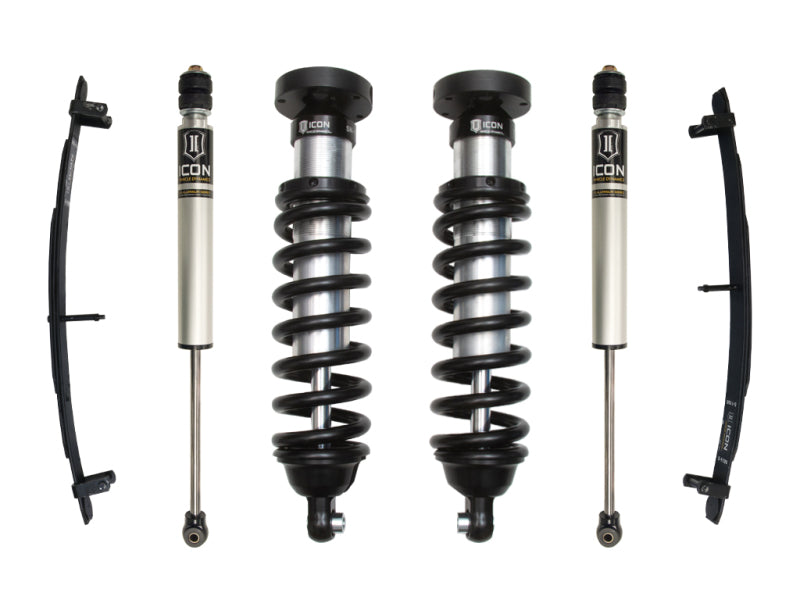

What's Included

Pair of 2.5" coilover shocks with internal reservoir (front, 0-2.5" lift)
Pair of 2.0 VS aluminum-series monotube rear shocks
1.5 inch rear add-a-leaf kit
Vehicle-specific mounting hardware

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53032
Stage: 2
Front lift: 0-2.5" (adjustable)
Front shock: 2.5" internal-reservoir coilover
Rear shock: 2.0 VS aluminum-series monotube
Valving: vehicle-specific passive (non-electronic)
Position: front and rear (complete system)
Installation: 100% bolt-on, no aftermarket upper control arms required

Fitment

Verified for the exact ICON part number K53032 against ICON Vehicle Dynamics and authorized dealers. Fits both Tundra and the matching Sequoia chassis:

2000-2006 Toyota Tundra (2WD and 4WD)
2001-2007 Toyota Sequoia

FAQ

Will this ICON Stage 2 system fit a 2007 or newer Tundra?

No. It fits the 2000-2006 first-generation Toyota Tundra and 2001-2007 Sequoia; the 2007 and newer second-generation Tundra uses a different ICON system.

How much lift does the ICON K53032 provide?

The 2.5 Series front coilovers are height-adjustable from 0 to 2.5 inches. An optional 700 lb/in Expedition coil is available for heavily equipped vehicles.

What is the difference between this Stage 2 system and the other ICON Tundra stages?

Stage 2 adds a 1.5 inch rear add-a-leaf over Stage 1.
