ICON

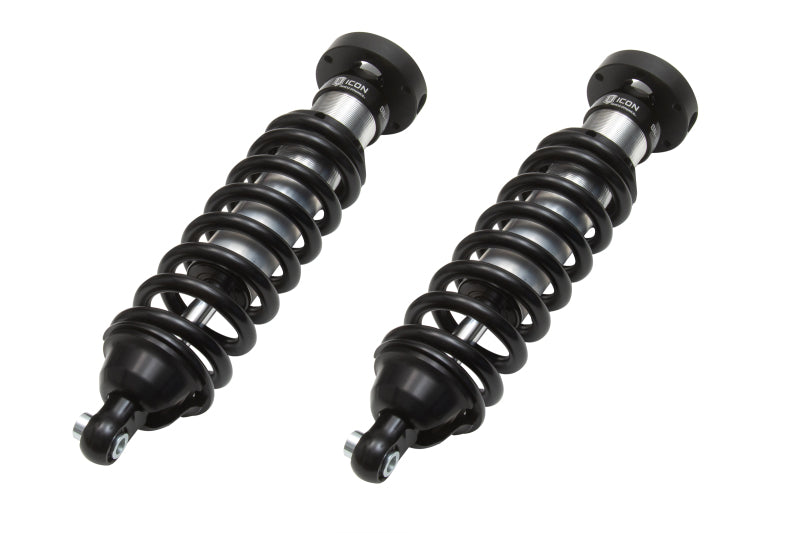

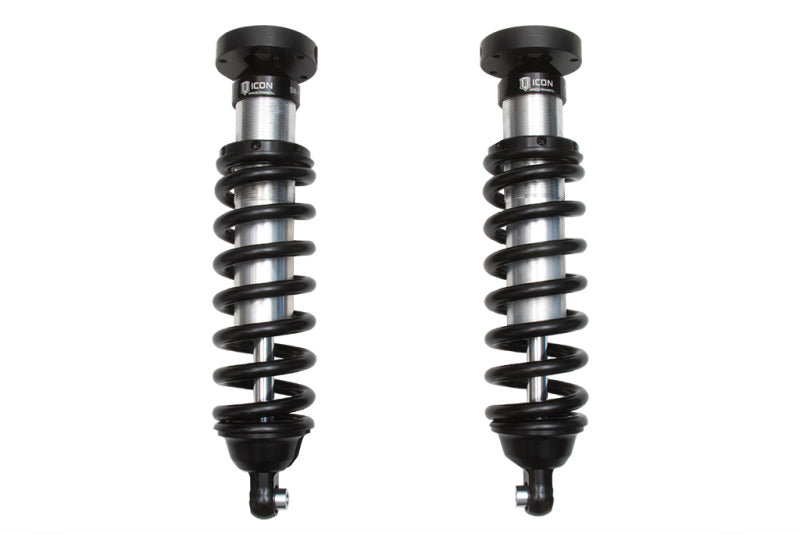

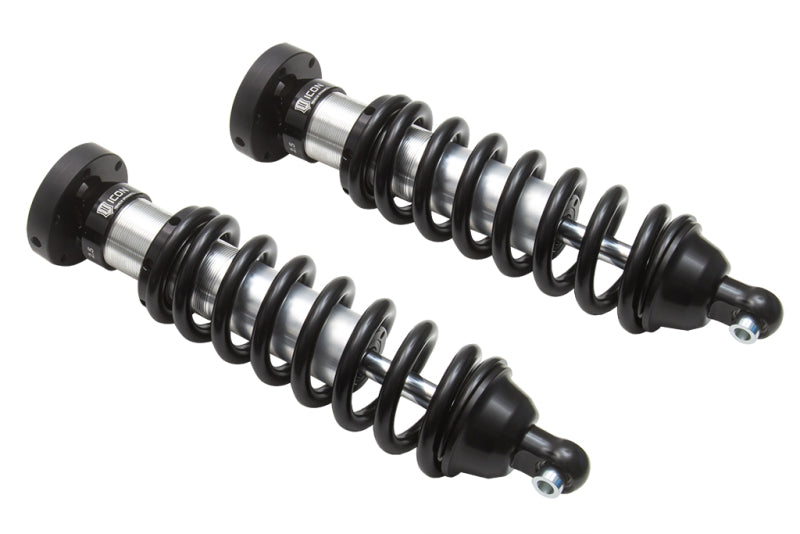

ICON 2.5 VS Extended Travel Coilover Kit for 00-06 Tundra / Sequoia

Name: ICON 2.5 VS Extended Travel Coilover Kit for 00-06 Tundra / Sequoia
Brand: ICON
SKU: 58625-700
Price: 1726.35 USD
Availability: InStock

$1,726.35 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58625-700

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0-2.5 inches of ICON-tuned adjustable front lift via the threaded lower spring seat
700 lb/in expedition coil springs support the added front-end weight of steel bumpers, winches and skid plates
Extended-travel length maximizes front wheel travel off-road (requires aftermarket upper control arms)
2.5-inch shock body with increased piston area for better heat management and fade resistance
Internal-reservoir (IR) design adds oil capacity without external plumbing
Vehicle Specific (V.S.) length and damping tune configured for this exact platform — non-adjustable (no CDCV knob or CDEV electronic controller)
CNC-machined 6061 aluminum components, CAD-plated shock body and 7/8-inch shaft

The ICON Vehicle Dynamics 58625-700 is a Vehicle Specific (V.S.) 2.5 Series extended-travel front coilover kit for the 2001-2007 Toyota Sequoia and 2000-2006 Toyota Tundra.

It replaces the tired factory front struts with a rebuildable 2.5-inch internal-reservoir coilover tuned specifically for this platform.

Key Features

0-2.5 inches of ICON-tuned adjustable front lift via the threaded lower spring seat
700 lb/in expedition coil springs support the added front-end weight of steel bumpers, winches and skid plates
Extended-travel length maximizes front wheel travel off-road (requires aftermarket upper control arms)
2.5-inch shock body with increased piston area for better heat management and fade resistance
Internal-reservoir (IR) design adds oil capacity without external plumbing
Vehicle Specific (V.S.) length and damping tune configured for this exact platform — non-adjustable (no CDCV knob or CDEV electronic controller)
CNC-machined 6061 aluminum components, CAD-plated shock body and 7/8-inch shaft
Fully rebuildable and revalvable for long service life
Shocks are fully rebuildable and revalvable; ICON coil springs are guaranteed for life against sagging or breakage (shock bodies carry ICON's 12-month manufacturer-defect warranty).

What's Included

Pair of assembled front coilovers (left and right) with pre-installed ICON 700 lb/in coil springs
Mounting hardware
Front kit only — rear shocks are sold separately

Fitment

Fits the following applications, verified for ICON part number 58625-700: 2001-2007 Toyota Sequoia, 2000-2006 Toyota Tundra. Extended-travel version with 700 lb/in expedition coils; the standard-travel kit for stock UCAs is ICON 58620. The extended-travel length requires aftermarket front upper control arms (sold separately). If you are keeping the factory upper control arms, choose the standard-travel ICON 58620 instead. Front kit only where applicable; rear shocks and any required control arms are sold separately.

2001-2007 Toyota Sequoia
2000-2006 Toyota Tundra

FAQ

What does the -700 mean on 58625-700?

It is fitted with 700 lb/in expedition coil springs to support added front-end weight from steel bumpers, winches and skid plates.

Do these need aftermarket upper control arms?

Yes. This is the extended-travel kit and requires aftermarket front upper control arms; the standard-travel 58620 runs on stock UCAs.

How much lift do they provide?

0-2.5 inches of adjustable front lift.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2001–2007	Toyota	Sequoia	—	Front
2000–2006	Toyota	Tundra	—	Front

Specifications

valve: VS (Vehicle-Specific, non-adjustable)
series: ICON 2.5 VS
sold as: front pair
valving: Vehicle Specific, non-adjustable (no CDCV or CDEV)
reservoir: internal (IR)
lift range: 0-2.5 in
shock body: 2.5-inch diameter, CNC-machined 6061 aluminum, CAD-plated, 7/8-inch shaft
rear shocks: sold separately
spring rate: 700 lb/in expedition coils
front lift range: 0-2.5 inches
mounting position: Front (sold as a pair)
shock body diameter: 2.5 in
requires aftermarket uca: yes
