ICON 2.5 VS IR Front Coilover Kit for 00-06 Tundra / 01-07 Sequoia

Upgrade the front suspension of your 2000-2006 Toyota Tundra or 2001-2007 Toyota Sequoia with the ICON 58620 2.5 Series VS Internal Reservoir Coilover Kit. This bolt-on standard-travel pair replaces the tired factory front struts with a large 2.5-inch shock body for dramatically improved ride quality, wheel travel, and control both on the road and off.

Key Benefits

• 0 to 2.5 inches of adjustable front lift to level the stance and clear larger tires
• Large 2.5-inch shock body increases piston surface area for cooler, more consistent damping
• Velocity-sensitive (VS) valving tunes the ride for both highway comfort and off-road control
• Internal reservoir design adds oil capacity and fade resistance without external plumbing
• 100% bolt-on installation with no cutting, drilling, or welding
• Designed to run with the factory upper control arms

What's Included

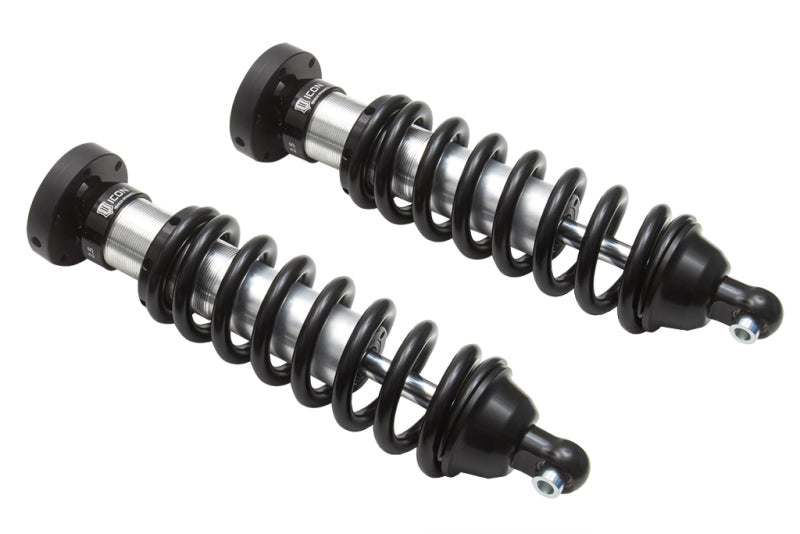

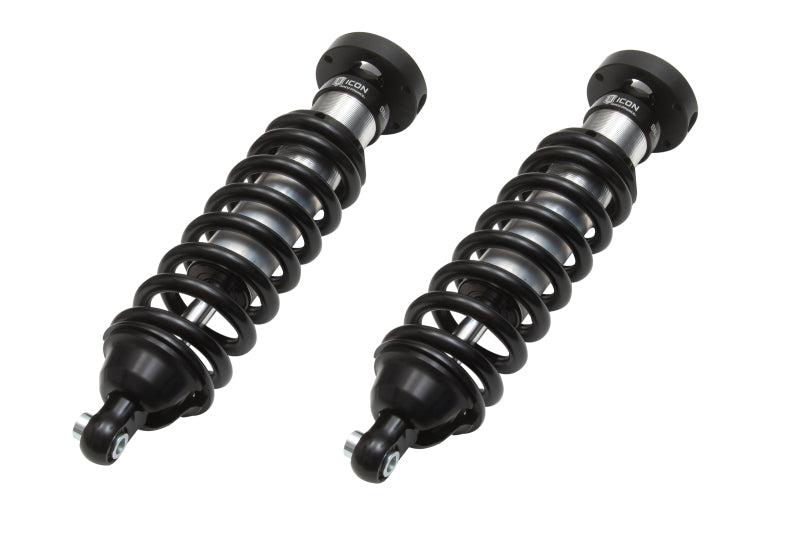

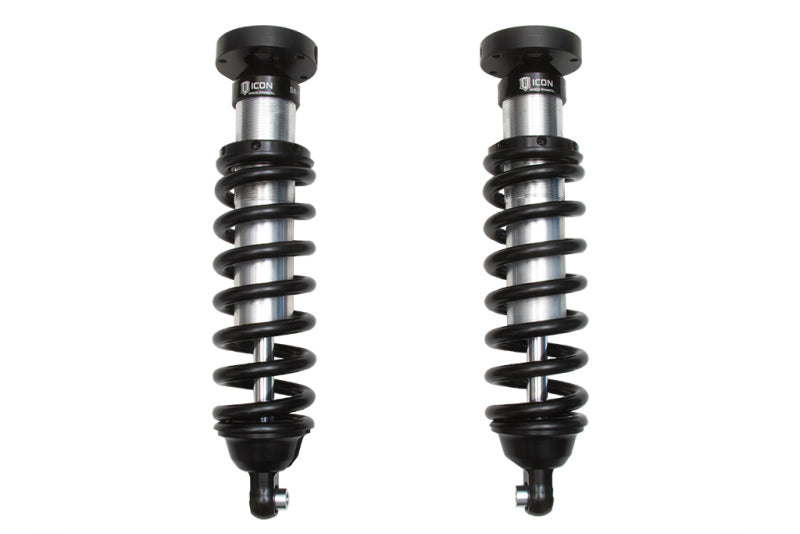

• Pair (left and right) of ICON 2.5 Series VS internal-reservoir front coilovers
• ICON-engineered coil springs, pre-assembled
• Mounting hardware

Specifications

• Position: Front
• Series: ICON 2.5 Series VS (Velocity Sensitive)
• Reservoir: Internal Reservoir (IR)
• Travel: Standard travel (optimized for stock upper control arms)
• Lift range: 0 to 2.5 inches
• Shock body: 6061 aircraft-grade CNC-machined aluminum, CAD-plated body, 7/8 inch shaft
• Sold as: Front pair

Fitment

This kit fits the following vehicles when running stock front upper control arms. If you run aftermarket upper control arms with high-angle ball joints, choose the extended-travel version (ICON 58625) instead. Rear shocks are sold separately.

• 2000-2006 Toyota Tundra (Front)
• 2001-2007 Toyota Sequoia (Front)
