ICON Stage 9 2.5 CDC Suspension System 1-3in for 07-21 Toyota Tundra

Name: ICON Stage 9 2.5 CDC Suspension System 1-3in for 07-21 Toyota Tundra
Brand: ICON
SKU: K53029T
Price: 5756.75 USD
Availability: InStock

$5,756.75 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53029T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete front-and-rear Stage 9 system for maximum Tundra performance
2.5 Series remote-reservoir coilovers resist heat fade on long trails
10-position CDC knob lets you tune ride firmness without tools
Tubular Delta Joint upper control arms add articulation and durability
RXT multi-rate rear leaf springs support heavier loads and towing
Adjustable 1-3in front lift clears larger wheel and tire setups
Bolt-on install with no cutting or welding

Take your 2007-2021 Toyota Tundra to the highest tier of ICON's bolt-on suspension lineup with the Stage 9 Suspension System. This is a complete front-and-rear package engineered for maximum wheel travel, damping control, and ride quality whether you're towing, hauling, or hammering the trail.

Key Benefits

Adjustable 1-3in of front lift to clear larger, more aggressive wheel and tire combinations
2.5 Series coilovers with remote reservoirs for exceptional heat management and fade resistance
CDC (Compression Damping Control) valve with 10 detented settings and a large knob for tool-free on-the-fly tuning
Tubular upper control arms with ICON's patented Delta Joint for high-angle articulation and ball-joint durability
RXT multi-rate rear leaf springs with an add-in leaf to dial in load capacity
Bolt-on installation with no cutting or welding required

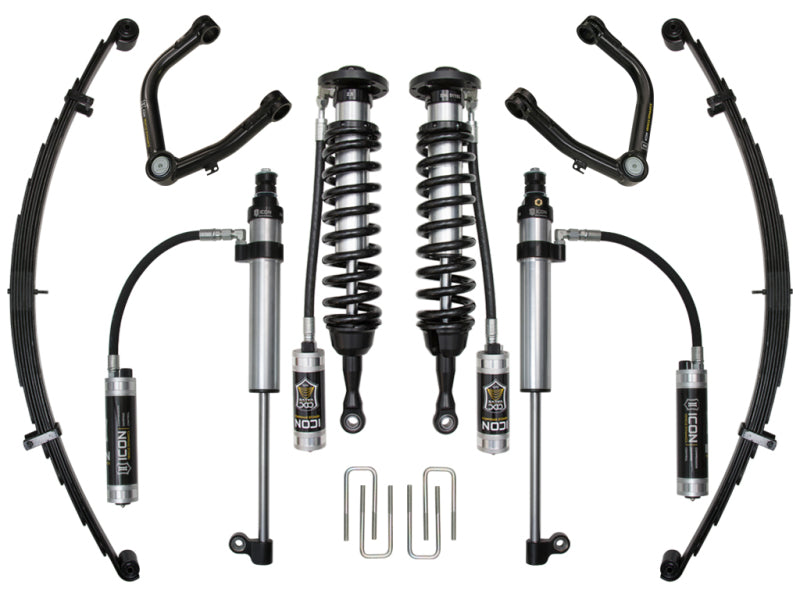

What's Included

Front 2.5 Series CDC coilover shocks with remote reservoirs (height adjustable 1-3in)
Tubular upper control arms with Delta Joint technology
RXT multi-rate rear leaf spring packs with add-in leaf
Rear 2.5 Series CDC reservoir shocks
U-bolt kit and necessary mounting hardware

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53029T
System Stage: Stage 9
Front Lift: 1-3in adjustable
Shock Body: 2.5 Series with remote reservoirs
Valve: CDC (manual Compression Damping Control), 10-position
Upper Control Arms: Tubular with Delta Joint
Rear: RXT multi-rate leaf springs + 2.5 Series CDC reservoir shocks
Install: Bolt-on, no cutting or welding

Fitment

Engineered specifically for the second-generation Toyota Tundra. Verified for this exact part number:

2007-2021 Toyota Tundra (front and rear)

Note: the tubular upper control arm is not compatible with all subframe-drop lift kits; ICON's billet upper control arm may be required for those applications. Trimming may be required for the largest recommended tire sizes.

FAQ

Does this ICON Stage 9 system fit the 2022 or newer Tundra?

No. It is built for the 2007-2021 second-generation Toyota Tundra; the 2022 and newer third-generation Tundra uses a different ICON system.

How much lift does the ICON K53029T provide?

The 2.5 Series front coilovers are height-adjustable from 1 to 3 inches. Fender trimming may be required to run the recommended 35x12.50 tire.

What is the difference between this Stage 9 system and the other ICON Tundra stages?

Stage 9 adds CDCV (CDC Valve) compression adjustment front and rear over the V.S. Stage 8. This complete system includes ICON tubular Delta Joint upper control arms. This is the tubular upper-control-arm version; ICON K53029 is the billet-UCA version.
