ICON

ICON Stage 8 Suspension System for 2007-2021 Toyota Tundra

Name: ICON Stage 8 Suspension System for 2007-2021 Toyota Tundra
Brand: ICON
SKU: K53028T
Price: 5178.03 USD
Availability: InStock

$5,178.03 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53028T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete front and rear standalone lift system, 1-3 inches of adjustable front height
2.5 Series remote-reservoir front coilovers run cooler and resist fade off-road
ICON-engineered Eibach coil springs deliver consistent feel through full travel
Tubular upper control arms with Delta Joint add articulation and durability
RXT multi-rate rear leaf springs with add-in leaf to tune for loaded hauling
Matched rear remote-reservoir shocks keep ride balanced front to rear
Bolt-on install, no cutting or welding and no extra aftermarket UCAs needed

Transform your 2007-2021 Toyota Tundra with the ICON Stage 8 Suspension System, a complete front-and-rear package engineered to maximize wheel travel, damping control, and ride quality both on-road and on the trail. This is a full standalone system that lifts the truck on its own and includes everything front and rear.

Key Benefits

1-3 inches of adjustable front lift to clear larger, more aggressive wheel and tire packages
2.5 Series remote-reservoir front coilovers with ICON-engineered Eibach coil springs for superior feel through the full range of travel
Tubular upper control arms with ICON's Delta Joint high-angle ball joint for durability and increased articulation
RXT multi-rate rear leaf springs with an exchangeable add-in leaf to tune rear spring rate for loaded or unloaded driving
Matched rear remote-reservoir shocks for balanced front-to-rear performance
Bolt-on installation with no cutting or welding and no separately purchased aftermarket upper control arms required

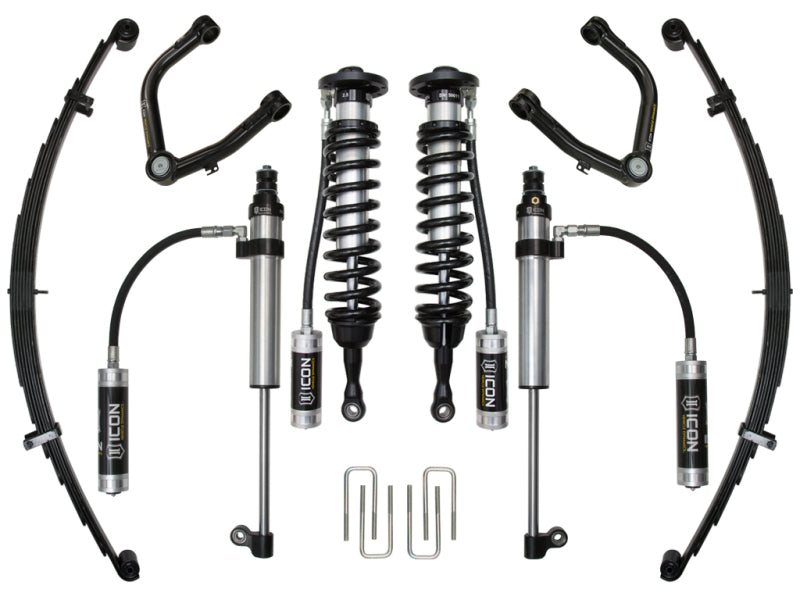

What's Included

Pair of front 2.5 Series remote-reservoir coilover shocks (height adjustable 1-3 inches)
Pair of tubular upper control arms with Delta Joint
RXT multi-rate rear leaf springs with included add-in leaf
Pair of rear 2.5 Aluminum Series RXT remote-reservoir shocks
U-bolts and mounting hardware

Fitment

Direct-fit for all drivetrain configurations of the 2nd-generation Toyota Tundra.

2007-2021 Toyota Tundra (2WD and 4WD)

Not compatible with the TRD rear sway bar kit. The tubular upper control arm is not compatible with all subframe-drop lift kits; those applications may require the billet upper control arm version instead.

FAQ

Does this ICON Stage 8 system fit the 2022 or newer Tundra?

No. It is built for the 2007-2021 second-generation Toyota Tundra; the 2022 and newer third-generation Tundra uses a different ICON system.

How much lift does the ICON K53028T provide?

The 2.5 Series front coilovers are height-adjustable from 1 to 3 inches. Fender trimming may be required to run the recommended 35x12.50 tire.

What is the difference between this Stage 8 system and the other ICON Tundra stages?

Stage 8 replaces the expansion pack with an RXT multi-rate leaf pack and RXT rear shocks and adds ICON upper control arms; the front stays non-adjustable V.S. This complete system includes ICON tubular Delta Joint upper control arms. This is the tubular upper-control-arm version; ICON K53028 is the billet-UCA version.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2007–2021	Toyota	Tundra	—	Front

Specifications

rear: RXT multi-rate leaf springs with add-in leaf and 2.5 Aluminum Series RXT remote-reservoir shocks
valve: standard 2.5 Series remote reservoir (non-CDCV)
system: Stage 8 complete front and rear
install: bolt-on, no cutting/welding, no aftermarket UCAs required
front lift: 1-3 inches adjustable
generation: 2nd-gen Tundra
front shocks: 2.5 Series remote reservoir coilovers with Eibach springs (standard valving, non-CDCV)
front lift range: 1-3 inches adjustable
recommended tire: up to 35x12.50 (trimming required)
upper control arms: tubular with Delta Joint
recommended tire size: up to 35x12.50 (trimming required)
