ICON Stage 4 Suspension System for 2007-2021 Toyota Tundra

Name: ICON Stage 4 Suspension System for 2007-2021 Toyota Tundra
Brand: ICON
SKU: K53024
Price: 3551.9 USD
Availability: InStock

$3,551.90 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53024

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Front coilovers adjustable from 1-3" of lift for a tunable stance and added tire clearance
2.5" remote-reservoir front shocks add oil capacity for superior heat management off-road
Vehicle-specific tuned valving balances aggressive trail performance with daily comfort
2.5 VS piggyback rear shocks plus rear expansion pack level and control the rear end
Increased wheel travel for confident high-speed desert and washboard driving
Clearance for up to 35" tires for a more aggressive wheel-and-tire setup
100% bolt-on install with no cutting, drilling, or welding required

Transform the ride and stance of your 2007-2021 Toyota Tundra with the ICON K53024 Stage 4 Suspension System. This complete front-and-rear package pairs 2.5" remote-reservoir front coilovers with 2.5 VS piggyback rear shocks and a rear expansion pack, delivering serious off-road capability and a planted on-road feel.

Key Benefits

Front coilovers adjustable from 1-3" of lift for tunable stance and clearance
Vehicle-specific tuned valving balances trail performance with daily-driver comfort
Remote-reservoir front shocks add oil capacity for superior heat management on long, rough runs
Increased wheel travel and damping control for confident high-speed desert and washboard driving
Clearance for up to 35" tires for a more aggressive wheel-and-tire package
100% bolt-on install with no cutting, drilling, or welding required

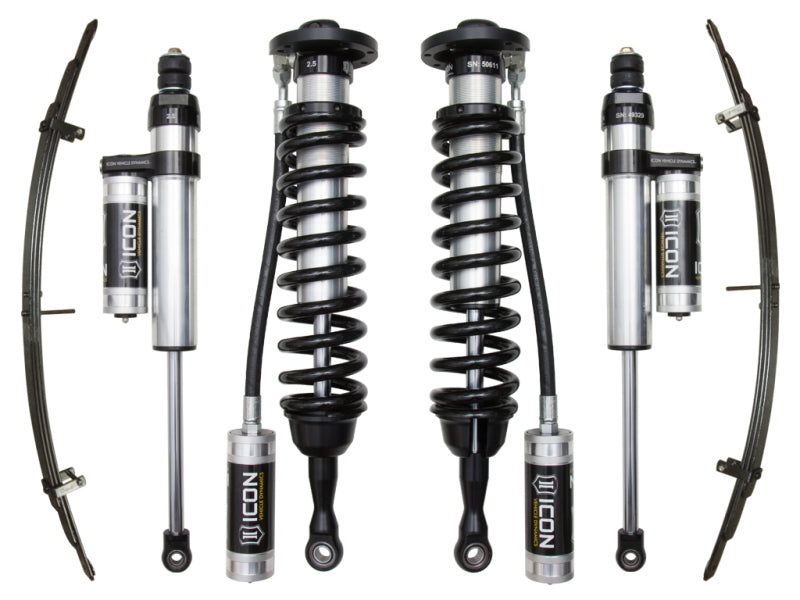

What's Included

Front 2.5" remote-reservoir coilover kit (pair)
Rear 2.5 VS piggyback series shocks (pair)
Rear expansion pack (adds approx. 1.5" rear lift)
Bushings and mounting hardware

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53024
System: Stage 4
Front lift: 1-3" (adjustable, up to 3.5")
Front shocks: 2.5" remote-reservoir coilovers
Rear shocks: 2.5 VS piggyback series
Position: Front and rear
Install: 100% bolt-on

Fitment

Engineered specifically for the second-generation Toyota Tundra. Fits Standard Cab, Double Cab, and CrewMax in both 2WD and 4WD.

2007-2021 Toyota Tundra

Factory upper control arms will not align properly past 2.5" of lift; an aftermarket upper control arm is recommended when running above 2.5" (sold separately).

FAQ

Does this ICON Stage 4 system fit the 2022 or newer Tundra?

No. It is built for the 2007-2021 second-generation Toyota Tundra; the 2022 and newer third-generation Tundra uses a different ICON system.

How much lift does the ICON K53024 provide?

The 2.5 Series front coilovers are height-adjustable from 1 to 3 inches. Fender trimming may be required to run the recommended 35x12.50 tire. Factory upper control arms will not align properly past 2.5 inches of lift, so an aftermarket upper control arm is recommended above that height.

What is the difference between this Stage 4 system and the other ICON Tundra stages?

Stage 4 upgrades the front coilovers to remote-reservoir and the rear to 2.5 piggyback over Stage 3.
