ICON Stage 3 Suspension System for 2007-2021 Toyota Tundra

Name: ICON Stage 3 Suspension System for 2007-2021 Toyota Tundra
Brand: ICON
SKU: K53023
Price: 2727.15 USD
Availability: InStock

$2,727.15 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53023

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Provides 1 to 3 inches of adjustable front lift for larger tire and wheel fitment
2.5 inch internal-reservoir coilovers run cooler for fade-free performance
Vehicle-specific valving tuned for the Tundra chassis
Matched rear shock kit and expansion pack balance ride height front to rear
Increased wheel travel improves control and comfort off-road
Complete bolt-on system requires no cutting, drilling, or welding
Improves ride quality both loaded and unloaded

Take your 2007-2021 Toyota Tundra further with the ICON Vehicle Dynamics Stage 3 Suspension System (K53023). This complete front-and-rear package combines vehicle-tuned 2.5 inch VS internal-reservoir coilovers with a matched rear shock kit and rear expansion pack, delivering 1-3 inches of front lift, increased wheel travel, and confident damping control on the street and on the trail.

Key Benefits

Height-adjustable front coilovers provide 1 to 3 inches of lift to clear larger, more aggressive wheel and tire combinations
2.5 inch internal-reservoir shocks add fluid capacity for superior cooling and consistent fade-free performance
Balanced front-and-rear package levels the stance and improves ride quality loaded or unloaded
Increased wheel travel for better control and comfort over rough terrain
100% bolt-on installation with no cutting, drilling, or welding required

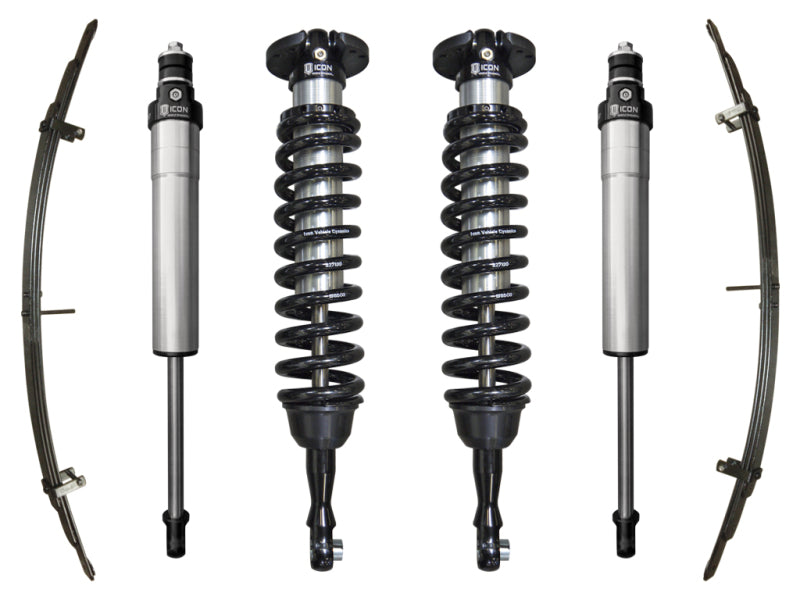

What's Included

Pair of 2.5 inch VS internal-reservoir front coilovers (model 58650), pre-assembled with vehicle-tuned valving and springs
2.5 inch VS smooth-body rear shock kit (model 57620P)
Rear expansion pack for up to 1.5 inches of rear lift and improved ride quality (model 51200)
All required mounting hardware and bushings

Fitment

Engineered specifically for the second-generation Toyota Tundra. The front 2.5 VS coilover component is also compatible with 2008-2022 Toyota Sequoia; the rear shock kit and expansion pack are Tundra-specific.

2007-2021 Toyota Tundra (complete system, front and rear)

FAQ

Does this ICON Stage 3 system fit the 2022 or newer Tundra?

No. It is built for the 2007-2021 second-generation Toyota Tundra; the 2022 and newer third-generation Tundra uses a different ICON system.

How much lift does the ICON K53023 provide?

The 2.5 Series front coilovers are height-adjustable from 1 to 3 inches. Fender trimming may be required to run the recommended 35x12.50 tire. Factory upper control arms will not align properly past 2.5 inches of lift, so an aftermarket upper control arm is recommended above that height.

What is the difference between this Stage 3 system and the other ICON Tundra stages?

Stage 3 upgrades the rear shocks to the 2.5 Series over Stage 2's 2.0.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2007–2021	Toyota	Tundra	—	Front

Specifications

note: factory upper control arms will not align properly past 2.5 inches of lift; aftermarket UCAs recommended above 2.5 inches
stage: Stage 3
valve: 2.5 VS internal reservoir (manual height-adjustable, non-electronic)
install: 100% bolt-on; aftermarket UCAs recommended above 2.5 in lift
rear lift: up to 1.5 in
front lift: 1-3 in (0-3.5 in range)
front shock: 2.5 inch VS internal reservoir, vehicle-specific tuned
recommended tire: 35 x 12.50
mounting position: front coilovers and rear shocks
