AMP Research

AMP PowerStep Plug N Play for 2008-2016 Ford Super Duty All Cabs

Name: AMP PowerStep Plug N Play for 2008-2016 Ford Super Duty All Cabs
Brand: AMP Research
SKU: 76234-01A
Price: 1849.99 USD
Availability: BackOrder

$1,849.99 USD

Sale Sold out

Shipping calculated at checkout.

SKU:76234-01A

On the way — ships by Aug 23

Calculated shipping — oversized item
Ships by Aug 23
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Auto-deploys when a door opens and retracts flush under the rocker when the doors close
Plug-N-Play harness plugs into the factory OBD-II connector - no wire cutting or splicing
Extruded aluminum step, 6 in. wide with non-slip tread, rated to support 600 lb per side
Die-cast aluminum PTFE-coated linkage with stainless steel pivot pins
Weather-sealed electric motors and integrated LED step lights
Complete two-side kit with vehicle-specific brackets, harness, and hardware
Backed by AMP Research's 5-year/60,000-mile limited warranty

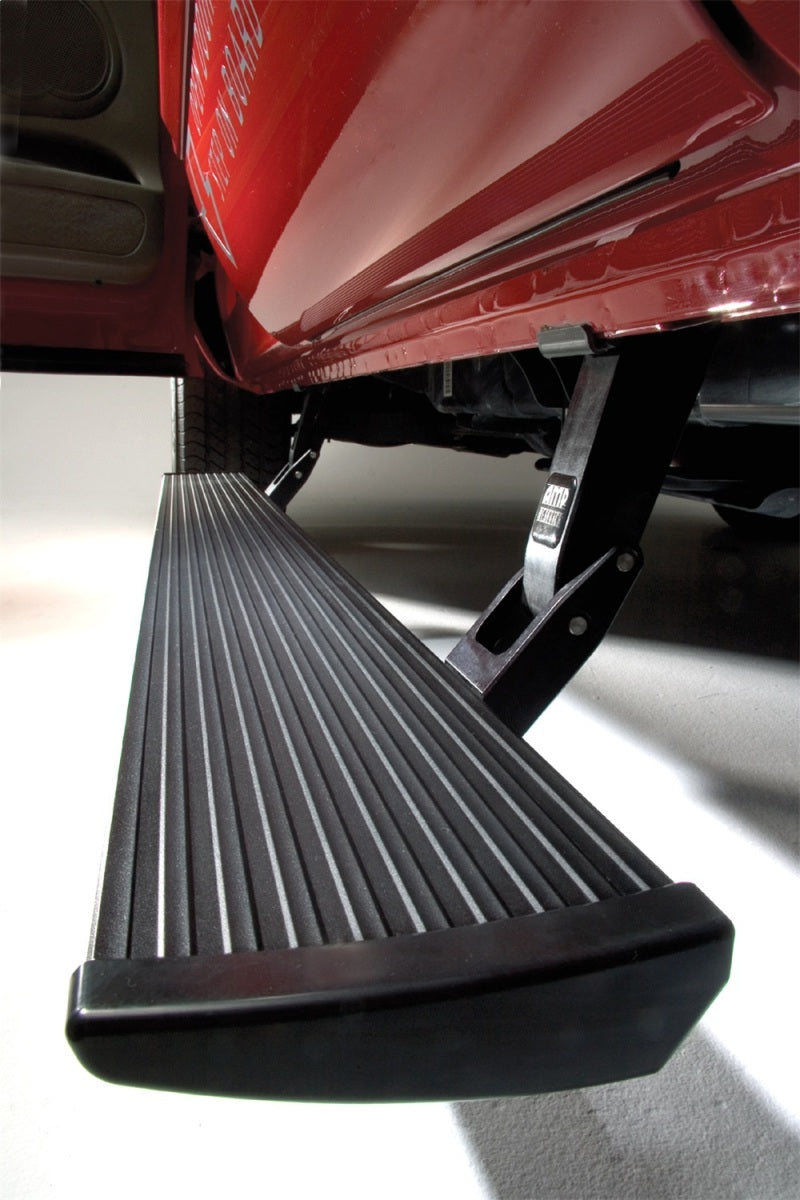

The AMP Research PowerStep Plug-N-Play (76234-01A) is a complete pair of electric retractable running boards for the 2008-2016 Ford F-250, F-350, and F-450 Super Duty in all cab configurations. Each board deploys the instant a door opens and retracts flush under the cab when the doors close, and the harness plugs into the factory OBD-II connector with no wire splicing.

Why owners choose it

Auto-deploys the instant a door opens, then retracts flush under the rocker a few seconds after the doors close.
Plug-N-Play wiring: the vehicle-specific harness plugs into the factory OBD-II connector, so no factory wires are cut or spliced.
Extruded aluminum step board, 6 in. wide with a non-slip tread, rated to support 600 lb per side.
Die-cast aluminum linkage with PTFE coating and stainless steel pivot pins resist corrosion.
Weather-sealed electric motors and integrated LED step lights for all-weather, night-time use.

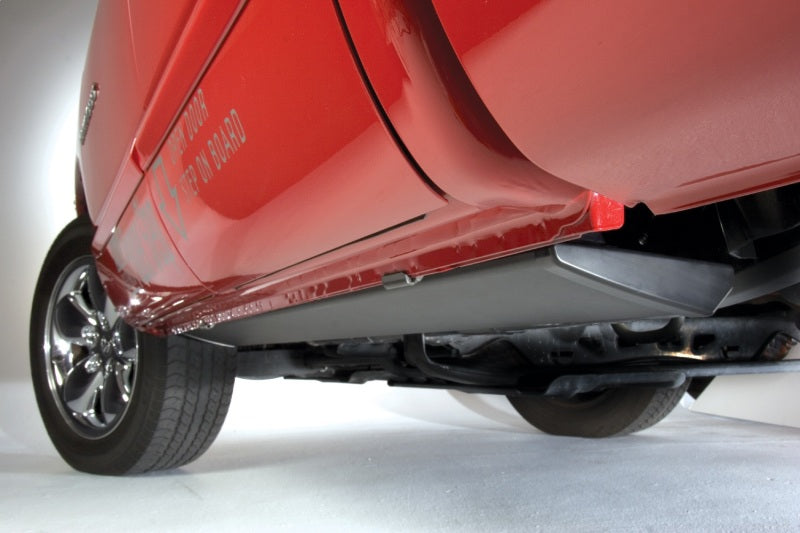

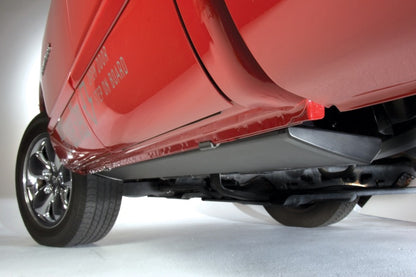

Hidden under the rocker when retracted for full ground clearance and a clean factory look.

What's included

Sold as a complete kit for both sides of the truck. Includes the driver- and passenger-side PowerStep assemblies with motors, a vehicle-specific Plug-N-Play wiring harness and control module that connect to the factory OBD-II connector with no splicing, mounting brackets and hardware, integrated LED step lights, and an installation guide. Crew Cab installs without modification; SuperCab and Regular Cab require trimming the boards to length.

Specifications

Type: Electric retractable running boards, Plug-N-Play (sold as a pair)
Wiring: Vehicle-specific plug-in harness to the factory OBD-II connector — no splicing
Material: Extruded aluminum step with textured black powdercoat finish
Linkage: Die-cast aluminum, anodized and PTFE-coated, with stainless steel pivot pins
Step width: 6 in. with non-slip tread
Load rating: 600 lb per side
Motors: Two (one per side), weather-sealed
Lighting: Integrated LED step lights
Warranty: 5-year/60,000-mile limited manufacturer warranty

Fitment

Fits 2008-2016 Ford F-250, F-350, and F-450 Super Duty. Crew Cab installs with no modification; SuperCab and Regular Cab require trimming the boards to length. Does not fit the 2017-and-newer Super Duty.

Which AMP step fits your truck

This 76234-01A covers the 2008-2016 Super Duty; the 2017-2019 Super Duty and the 2020-2022 (Sync 3, 76236-01A) and 2022-2025 (Sync 4, 76242-01A) trucks use different applications. Match your model year before ordering.

FAQ

Do I have to cut or splice any factory wires?

No. The PowerStep Plug-N-Play uses a vehicle-specific harness that plugs into the factory OBD-II connector, so no wire cutting or splicing is required.

Do the boards need trimming on my cab?

Crew Cab installs with no modification. SuperCab and Regular Cab require trimming the boards to length.

Is the PowerStep sold as a pair?

Yes. This part number includes both the driver- and passenger-side PowerStep assemblies as a complete two-side kit.

What warranty does AMP Research provide?

AMP backs the PowerStep with a 5-year/60,000-mile limited warranty against defects in materials and workmanship.
