AMP Research

AMP PowerStep for 2009-2018 Ram 1500/2500/3500 All Cabs

Name: AMP PowerStep for 2009-2018 Ram 1500/2500/3500 All Cabs
Brand: AMP Research
SKU: 75138-01A-B
Price: 1599.99 USD
Availability: InStock

$1,599.99 USD

Sale Sold out

Shipping calculated at checkout.

SKU:75138-01A-B

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Auto-deploys the instant a door opens and retracts flush under the rocker when the doors close
Extruded aluminum step, 6 in. wide with non-slip tread, rated to support 600 lb per side
Die-cast aluminum linkage with PTFE coating and stainless steel pivot pins resist corrosion
Weather-sealed electric motors and weathertight connectors for all-weather operation
Integrated LED step lights illuminate the step area at night
Complete two-side kit with vehicle-specific brackets, hardware, and wiring harness
Backed by AMP Research's 5-year/60,000-mile limited warranty

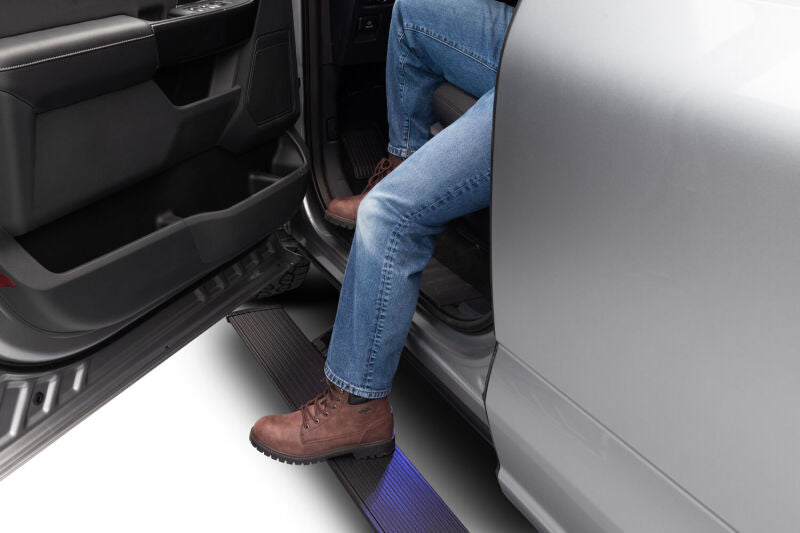

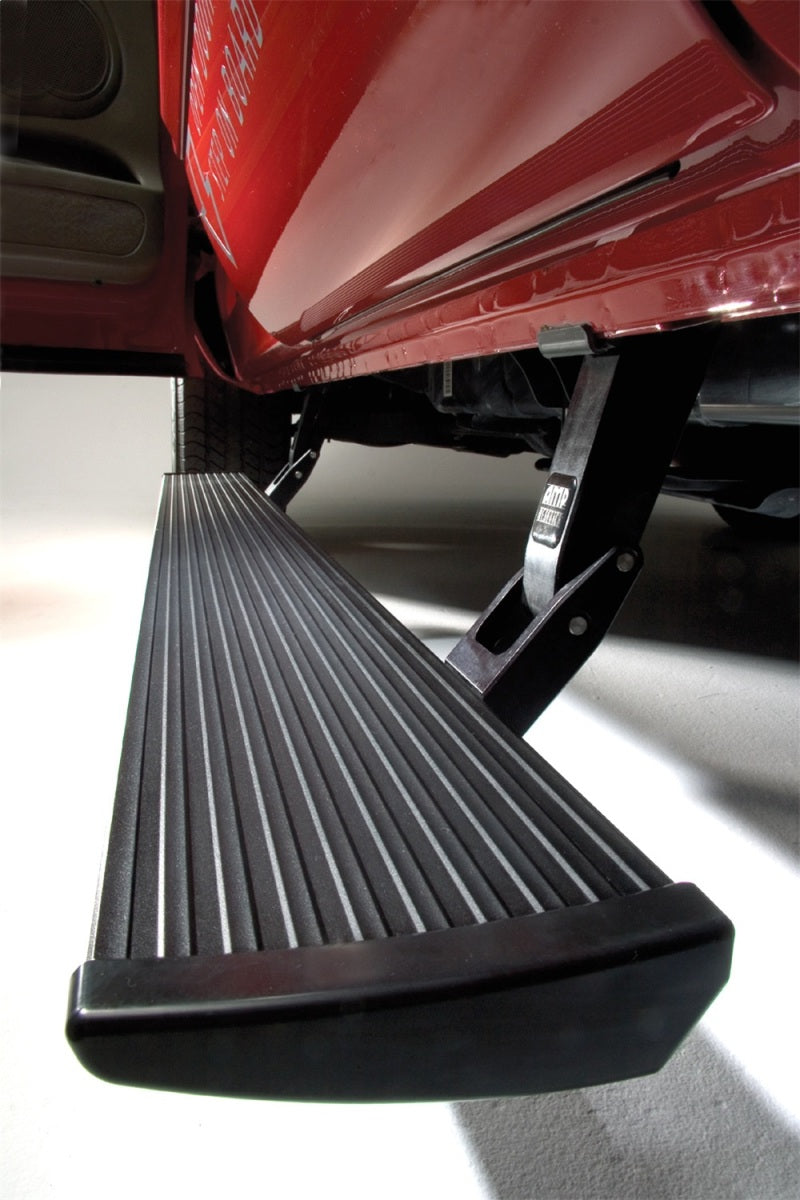

The AMP Research PowerStep (75138-01A) is a complete pair of electric retractable running boards for the 2009-2018 Ram 1500, 2500, and 3500 (all cab configurations) and the 2019-2020 Ram 1500 Classic. Each board drops down the instant a door opens and retracts flush under the cab a few seconds after the doors close.

Why owners choose it

Auto-deploys the instant a door opens, then retracts flush under the rocker a few seconds after the doors close — out of sight when not in use.
Extruded aluminum step board, 6 in. wide with a non-slip tread, rated to support 600 lb per side.
Die-cast aluminum linkage with PTFE coating and stainless steel pivot pins resist corrosion.
Weather-sealed electric motors and weathertight wiring connectors stand up to mud, salt, and all-weather use.
Integrated LED step lights illuminate the step area at night.

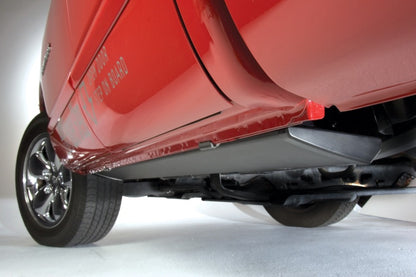

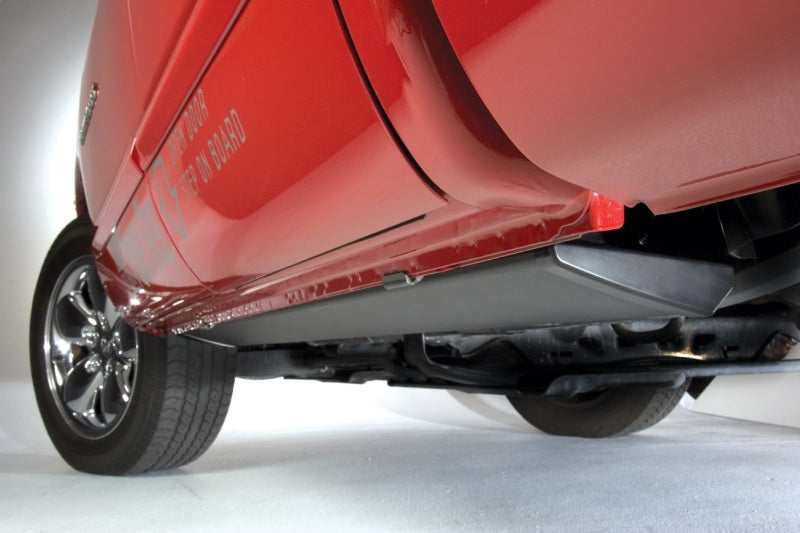

Hidden under the rocker when retracted for full ground clearance and a clean factory look.

What's included

Sold as a complete kit for both sides of the truck. Includes the driver- and passenger-side PowerStep assemblies with motors, a vehicle-specific wiring harness and control module, mounting brackets and hardware, integrated LED step lights, and an installation guide. Drilling is required and professional installation is recommended.

Specifications

Type: Electric retractable running boards (sold as a pair)
Material: Extruded aluminum step with textured black powdercoat finish
Linkage: Die-cast aluminum, anodized and PTFE-coated, with stainless steel pivot pins
Step width: 6 in. with non-slip tread
Load rating: 600 lb per side
Motors: Two (one per side), weather-sealed
Lighting: Integrated LED step lights
Warranty: 5-year/60,000-mile limited manufacturer warranty

Fitment

Fits 2009-2018 Ram 1500, 2500, and 3500 in all cab configurations, plus the 2019-2020 Ram 1500 Classic (DS body). 2009-2010 trucks carry Dodge Ram badging. Does not fit trucks with factory air-ride suspension, and does not fit the 2019-and-newer Ram 1500 (DT body).

Which AMP step fits your truck

This 75138-01A is the standard hardwired PowerStep for the fourth-generation Ram (and the DS-body 1500 Classic). The newer DT-body 2019-2024 Ram 1500 uses PowerStep 76240-01A (Plug-N-Play), and factory air-ride trucks require a different setup — match your body and suspension before ordering.
