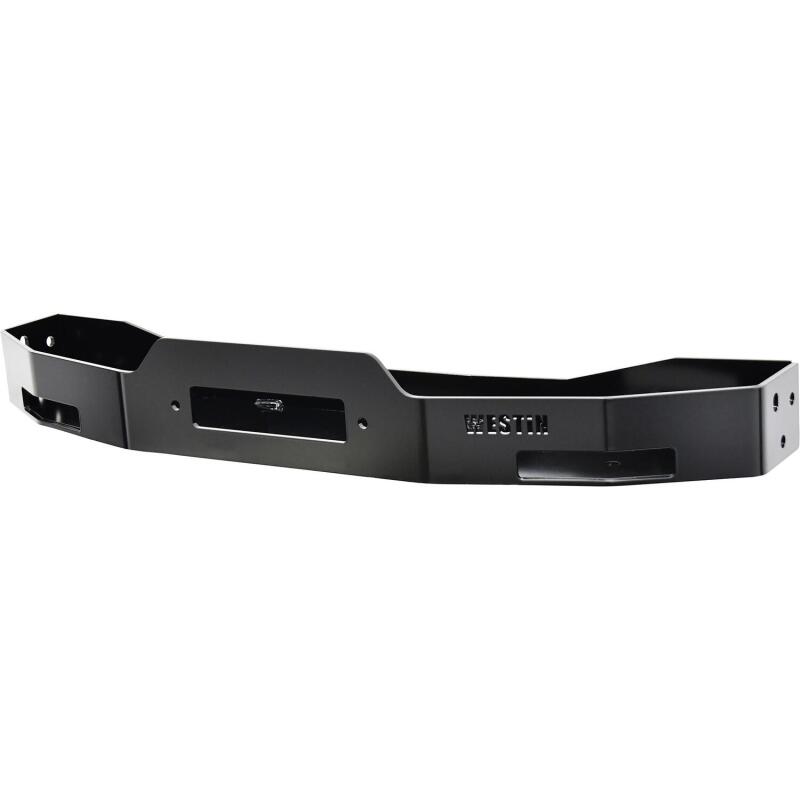

• Westin WES MAX Winch System

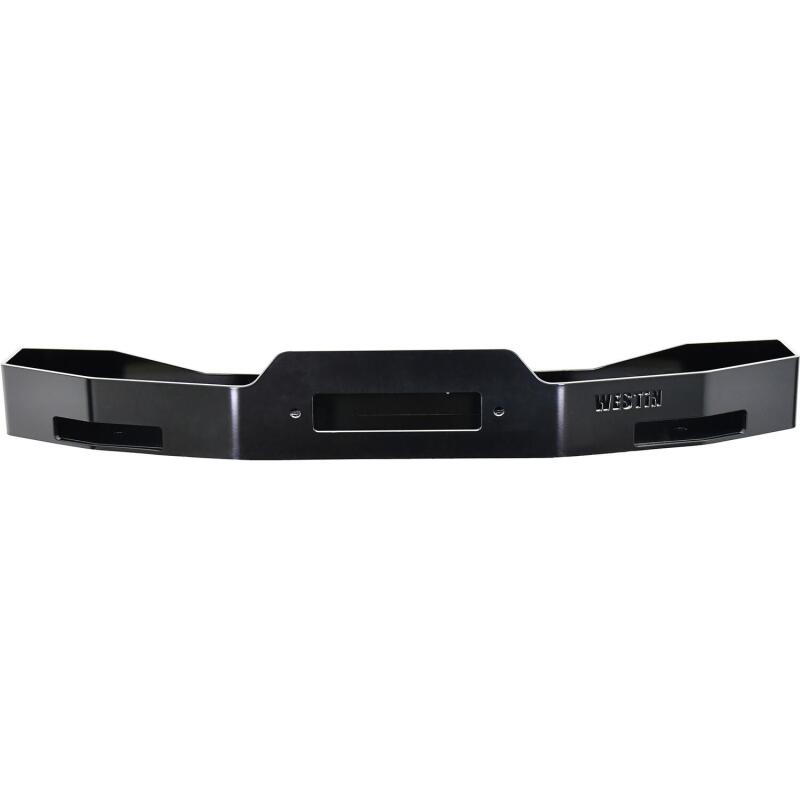

  • Westin WES MAX Winch System — alternate view 2

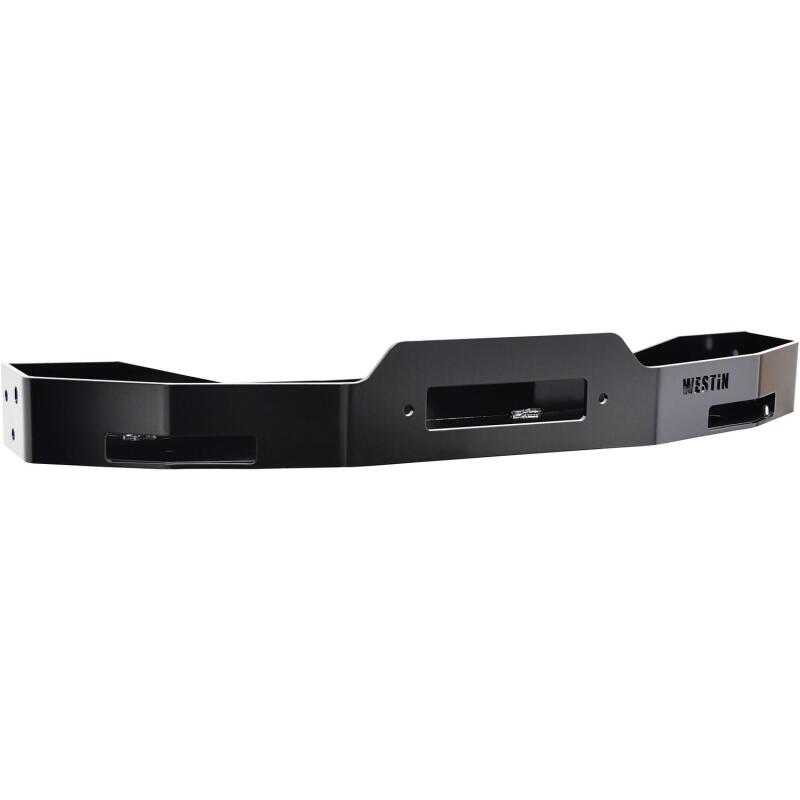

  • Westin WES MAX Winch System — alternate view 3

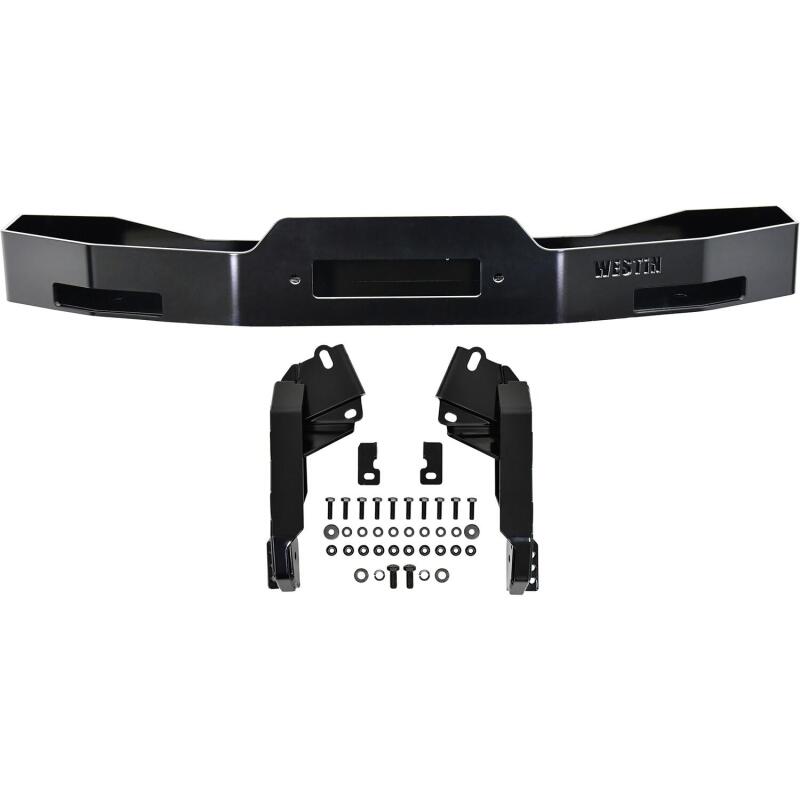

  • Westin WES MAX Winch System — alternate view 4
1 4

Westin

Westin MAX Winch System Mount Tray 46-23975

Westin MAX Winch System Mount Tray 46-23975

$486.87 USD
$486.87 USD
Sale Sold out
Shipping calculated at checkout.

46-23975

In stock
  • Calculated shipping — oversized item
  • Ships in 1–2 business days
  • 30-day hassle-free returns
  • Price match — found it cheaper?
  • Secure checkout — SSL encrypted

Key Features

  • Mounts directly to the frame with heavy-duty brackets; no drilling required
  • Steel construction with a durable powder-coat finish
  • Accepts winches rated 8,000-12,000 lbs and up to 10.25 inches tall
  • Tested to a maximum straight-line pull of 16,500 lbs
  • Pre-drilled for fairlead mounting; integrates with Westin MAX front-end protection

The Westin MAX Winch Mount Tray (46-23975) is a heavy-duty, frame-mounted steel winch tray for the 2019-2026 Ram 1500, accepting winches rated 8,000-12,000 lbs.

Key Benefits

  • Mounts directly to the frame with heavy-duty brackets; no drilling required
  • Steel construction with a durable powder-coat finish
  • Accepts winches rated 8,000-12,000 lbs and up to 10.25 inches tall
  • Tested to a maximum straight-line pull of 16,500 lbs
  • Pre-drilled for fairlead mounting; integrates with Westin MAX front-end protection

What's Included

  • Westin MAX winch mount tray
  • Heavy-duty frame-mount brackets and hardware

Specifications

  • Material: Steel
  • Finish: Powder coat
  • Winch capacity: 8,000-12,000 lbs, up to 10.25 in. tall
  • Tested pull: 16,500 lbs maximum straight-line
  • Installation: Frame-mount, no drilling
  • Fairlead: Pre-drilled mounting

Fitment

Fits the 2019-2026 Ram 1500 (new-body DT, all listed trims). It does not fit the Ram 1500 Classic (old DS body). The Westin MAX bull bar/light bar and faceplate are optional add-ons and are not required to use the tray.

Frequently Asked Questions

What size winch does it accept?

It accepts winches rated 8,000 to 12,000 lbs and up to 10.25 inches tall, and it is tested to a maximum straight-line pull of 16,500 lbs.

Does it fit the Ram 1500 Classic?

No. The 46-23975 fits the new-body (DT) 2019-2026 Ram 1500 only; it does not fit the Ram 1500 Classic.

Does installation require drilling?

No. The tray mounts directly to the frame with the included heavy-duty brackets and is pre-drilled for the fairlead, so no drilling is required.

FAQ
What size winch does it accept?

It accepts winches rated 8,000 to 12,000 lbs and up to 10.25 inches tall, and it is tested to a maximum straight-line pull of 16,500 lbs.

Does it fit the Ram 1500 Classic?

No. The 46-23975 fits the new-body (DT) 2019-2026 Ram 1500 only; it does not fit the Ram 1500 Classic.

Does installation require drilling?

No. The tray mounts directly to the frame with the included heavy-duty brackets and is pre-drilled for the fairlead, so no drilling is required.

Vehicle Fitment
Years Make Model Submodel
2019–2026 Ram 1500 —

Shipping & Returns

Free shipping on orders $250+ (standard items). Oversized items ship at calculated rates.

30-day returns with RMA required. 15% restocking fee, buyer pays return shipping. Defective items returned free with full refund.
