ICON Stage 3 Suspension System for 2024-2026 Lexus GX550

Name: ICON Stage 3 Suspension System for 2024-2026 Lexus GX550
Brand: ICON
SKU: K53353T
Price: 3888.67 USD
Availability: InStock

$3,888.67 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53353T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete front-and-rear suspension system, no other lift components required
1.25-3 inches of adjustable front lift for larger wheel and tire fitment
Vehicle-specific 2.5 Series front coilovers tuned for the GX550
Tubular upper control arms with Delta Joint PRO restore proper alignment geometry
Front diff drop and poly bushings prevent CV bind and reduce diff movement
Billet adjustable rear track bar re-centers the rear axle after lift
Fully serviceable and rebuildable ICON shocks for long-term performance

The ICON Vehicle Dynamics K53353T Stage 3 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2026 Lexus GX550, providing 1.25 to 3 inches of adjustable front lift and clearing up to a 34x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with tubular upper control arms and the Delta Joint PRO.

Key Benefits

1.25-3 inches of adjustable front lift to clear larger, more aggressive wheel and tire setups
Vehicle-specific 2.5 Series internal-reservoir coilovers tuned for the GX550 chassis
Tubular upper control arms with patented Delta Joint PRO for added strength and corrected alignment geometry
Front differential drop and polyurethane bushings prevent CV bind and limit diff movement under load
Adjustable rear track bar re-centers the rear axle after lift

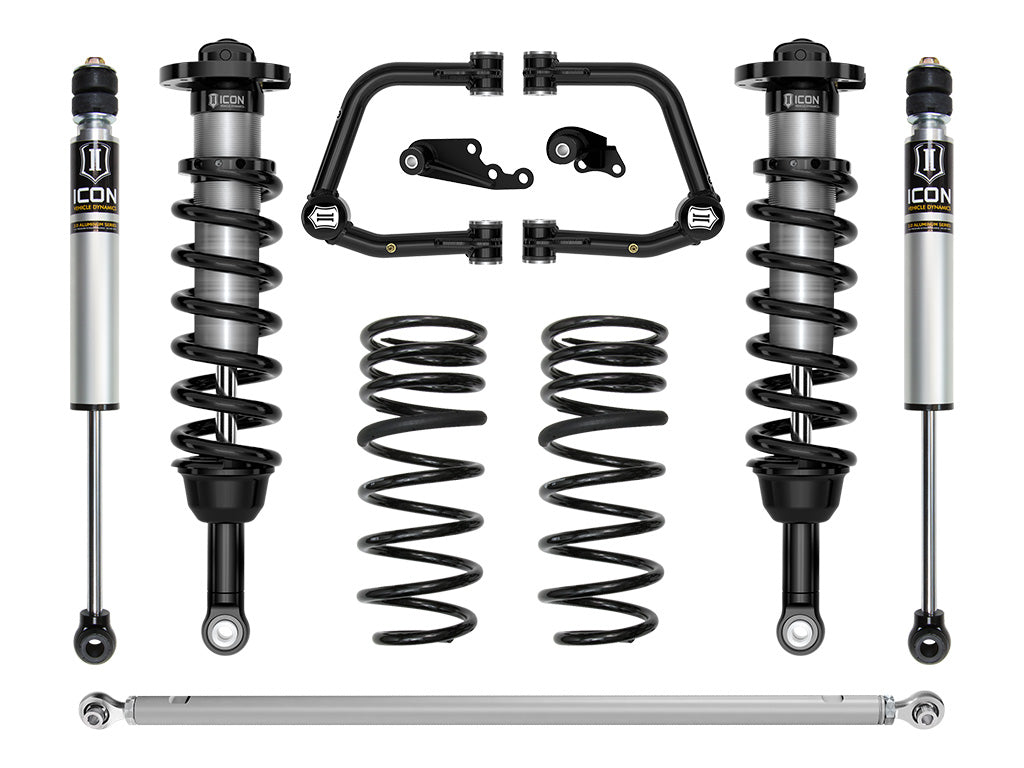

What's Included

2.5 Series front coilover shocks with internal reservoirs (height adjustable)
Tubular upper control arms with Delta Joint PRO
Front differential drop brackets and polyurethane differential bushings
2.0 Aluminum Series internal-reservoir rear shocks (pair)
Dual-rate rear coil springs
Billet adjustable rear track bar

Specifications

Front lift: 1.25-3 inches (adjustable)
Rear lift: approximately 2 inches
Front shock: ICON 2.5 Series coilover, internal reservoir, manual tune
Rear shock: ICON 2.0 Aluminum Series, internal reservoir
Upper control arms: tubular, Delta Joint PRO
Fully serviceable and rebuildable shocks

Fitment

Direct fit for the 2024-2026 Lexus GX550. Does NOT fit GX550 Overtrail trim and is not compatible with Adaptive Variable Suspension (AVS). ADAS recalibration is recommended after installation.

2024-2026 Lexus GX550 (excludes Overtrail)

FAQ

Will the ICON K53353T fit a GX550 Overtrail?

No. It fits the 2024-2026 Lexus GX550 but does not fit the GX550 Overtrail trim and is not compatible with Adaptive Variable Suspension (AVS). On 4WD it uses the ICON differential drop (part #55156), and ADAS recalibration is required after installation.

How much lift does the ICON K53353T provide, and is it adjustable?

It provides 1.25 to 3 inches of adjustable front lift and about 2 inches of rear lift, clearing up to a 34x11.50 tire. The 2.5 Series front coilovers use ICON's non-adjustable Vehicle Specific (V.S.) valving tuned for the GX550.

What does the Stage 3 system include, and how does it differ from the other ICON stages?

Stage 3 adds a billet adjustable rear track bar to re-center the axle over the Stage 2 (K53352T); both use tubular upper control arms and V.S. 2.5 Series coilovers.
