ICON 2.5 VS CDXS Front Coilover Kit for 2024-2025 Land Cruiser 250

Name: ICON 2.5 VS CDXS Front Coilover Kit for 2024-2025 Land Cruiser 250
Brand: ICON
SKU: 58791X
Price: 2495.95 USD
Availability: InStock

$2,495.95 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58791X

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

CDXS dual-speed valving with independent low- and high-speed compression knobs
Fits both the 2024-2025 Land Cruiser 250 and Lexus GX550
2.5-inch remote-reservoir shocks for fade-free damping
Delta Joint Pro UCA recommended above 2 in of lift
Top-tier tuning; CDCV 58791C and fixed 58791 also available
Bolt-on front pair; fits 2024-2025 LC250 and GX550

The ICON Vehicle Dynamics 58791X is a 2.5 Series VS remote-reservoir CDXS front coilover kit for the 2024-2025 Toyota Land Cruiser 250 Series and 2024-2025 Lexus GX550, featuring dual-speed compression adjustment for the finest tuning control.

Key Benefits

CDXS dual-speed valving with independent low-speed and high-speed compression knobs, 10 settings each
Fine low-speed control for on-road comfort plus high-speed control for big off-road impacts
Adjustable front lift to clear larger wheel and tire packages
2.5-inch remote-reservoir shocks with increased piston area for controlled damping
ICON-engineered vehicle-specific springs and valving

What's Included

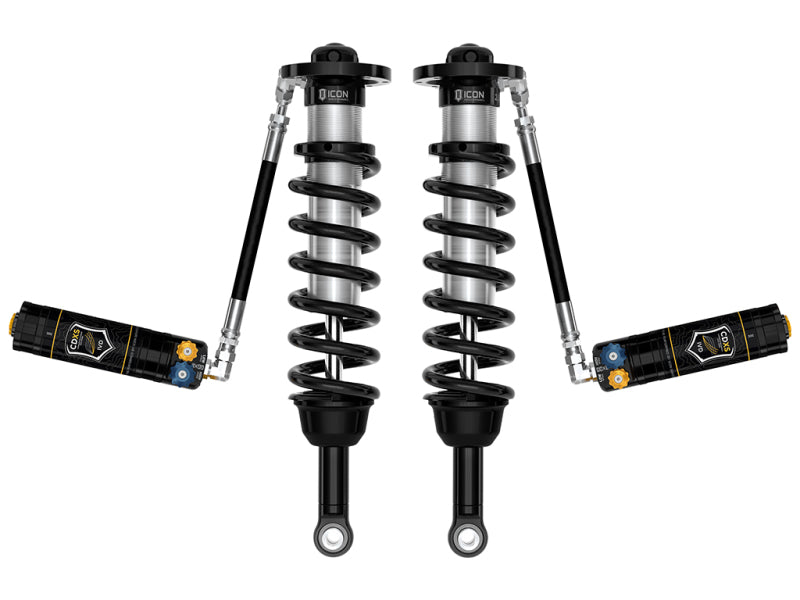

Pair of ICON 2.5 Series VS remote-reservoir CDXS front coilovers (driver and passenger)
ICON-engineered coil springs, preassembled

Specifications

Brand: ICON Vehicle Dynamics
Series: 2.5 Series VS remote reservoir
Valving: ICON CDXS dual-speed valving with independent low-speed and high-speed compression knobs (10 settings each)
Lift range: Adjustable front lift over stock
Position: Front (sold as a pair)
Construction: CNC-machined 6061 aluminum bodies, 7/8-inch induction-hardened chrome shafts, and FK rod-end bearings
Upper control arms: ICON Delta Joint Pro UCA recommended above 2 in of lift
4WD/AWD note: Front differential drop kit may be required (sold separately)

Fitment

Fits the 2024-2025 Toyota Land Cruiser 250 Series and the 2024-2025 Lexus GX550, which share the TNGA-F platform. ICON recommends a Delta Joint Pro upper control arm above 2 inches of lift. Does not fit the GX550 Overtrail or AVS-equipped vehicles, and does not fit earlier Land Cruiser 200/300 Series or GX460/GX470. This is the top-tier CDXS dual-speed version; the 58791C offers single-knob CDCV and the 58791 has fixed valving.

FAQ

What is CDXS dual-speed adjustment?

CDXS uses two knobs to independently tune low-speed compression (ride and body control) and high-speed compression (big impacts), each with 10 settings.

How is the 58791X different from the 58791C?

The 58791X (CDXS) has separate low-speed and high-speed compression knobs; the 58791C (CDCV) has a single compression knob.

Does it fit both the Land Cruiser and GX550?

Yes. It fits the 2024-2025 Toyota Land Cruiser 250 Series and the 2024-2025 Lexus GX550.

Do I need upper control arms?

ICON recommends a Delta Joint Pro upper control arm above 2 inches of lift.
