ICON 2.5 VS CDCV Front Coilover Kit for 2024-2025 Toyota Land Cruiser

Name: ICON 2.5 VS CDCV Front Coilover Kit for 2024-2025 Toyota Land Cruiser
Brand: ICON
SKU: 58791C
Price: 2287.95 USD
Availability: InStock

$2,287.95 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58791C

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

CDCV single-knob adjuster with 10 hand-set compression settings
Fits both the 2024-2025 Land Cruiser 250 and Lexus GX550
2.5-inch remote-reservoir shocks for controlled, fade-free damping
Step up to CDXS 58791X for dual-speed adjustment
Delta Joint Pro UCA recommended above 2 in of lift
Bolt-on front pair; fits 2024-2025 LC250 and GX550

The ICON Vehicle Dynamics 58791C is a 2.5 Series VS remote-reservoir CDCV front coilover kit for the 2024-2025 Toyota Land Cruiser and 2024-2025 Lexus GX550, adding a 10-setting external compression adjuster to the TNGA-F platform.

Key Benefits

CDCV single-knob adjuster with 10 external compression settings, soft to firm
Adjustable front lift to clear larger wheel and tire packages
2.5-inch remote-reservoir shocks with increased piston area for controlled damping
ICON-engineered vehicle-specific springs and valving
Bolt-on install in the factory front shock locations

What's Included

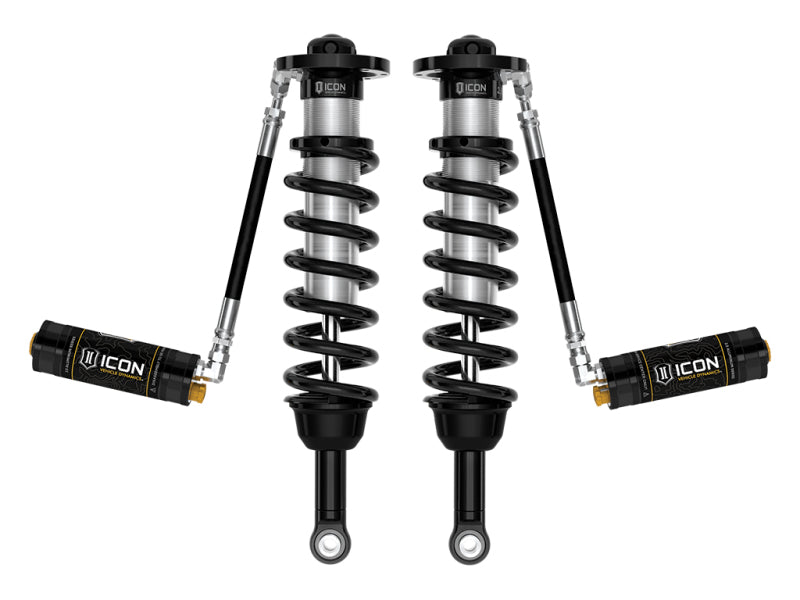

Pair of ICON 2.5 Series VS remote-reservoir CDCV front coilovers (driver and passenger)
ICON-engineered coil springs, preassembled

Specifications

Brand: ICON Vehicle Dynamics
Series: 2.5 Series VS remote reservoir
Valving: ICON CDCV (Compression Damping Control Valve) single-knob adjuster with 10 external compression settings
Lift range: Adjustable front lift over stock
Position: Front (sold as a pair)
Construction: CNC-machined 6061 aluminum bodies, 7/8-inch induction-hardened chrome shafts, and FK rod-end bearings
Upper control arms: ICON Delta Joint Pro UCA recommended above 2 in of lift
4WD/AWD note: Front differential drop kit may be required (sold separately)

Fitment

Fits the 2024-2025 Toyota Land Cruiser 250 Series and the 2024-2025 Lexus GX550, which share the TNGA-F platform. ICON recommends a Delta Joint Pro upper control arm above 2 inches of lift. Does not fit the GX550 Overtrail or AVS-equipped vehicles. Does not fit earlier Land Cruiser 200/300 Series or the GX460/GX470. This is the manual CDCV version; the 58791 has fixed valving and the 58791X adds dual-speed CDXS adjustment.
