ICON Stage 2 Tubular Suspension System for 2024-2026 Lexus GX550

Name: ICON Stage 2 Tubular Suspension System for 2024-2026 Lexus GX550
Brand: ICON
SKU: K53352T
Price: 3299.7 USD
Availability: InStock

$3,299.70 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53352T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete front and rear bolt-on lift system engineered specifically for the 2024-2026 Lexus GX550
Adjustable 1.25-3 in front lift clears larger tires for a level, aggressive stance
2.5 Series internal-reservoir front coilovers resist heat fade on long off-road runs
Included tubular upper control arms with Delta Joint PRO correct geometry and add caster
Dual-rate rear coil springs blend daily-driver comfort with off-road bottoming resistance
2.0 Aluminum Series reservoir rear shocks tuned to balance front-to-rear handling
No aftermarket upper control arms to buy separately - everything needed is included

The ICON Vehicle Dynamics K53352T Stage 2 Suspension System is a complete bolt-on front-and-rear lift kit for the 2024-2026 Lexus GX550, providing 1.25 to 3 inches of adjustable front lift and clearing up to a 34x11.50 tire. It uses ICON's non-adjustable Vehicle Specific (V.S.) valving with tubular upper control arms and the Delta Joint PRO.

Key Benefits

Adjustable 1.25-3 in of front lift to clear larger wheel and tire combinations
2.5 Series internal-reservoir front coilovers tuned specifically for the GX550 for superior cooling and fade resistance
Tubular upper control arms with the ICON Delta Joint PRO correct front-end geometry, add caster, and improve travel without bind
Dual-rate rear coil springs balance on-road ride quality with excellent off-road bottoming resistance
2.0 Aluminum Series reservoir rear shocks with vehicle-specific valving balance front-to-rear performance

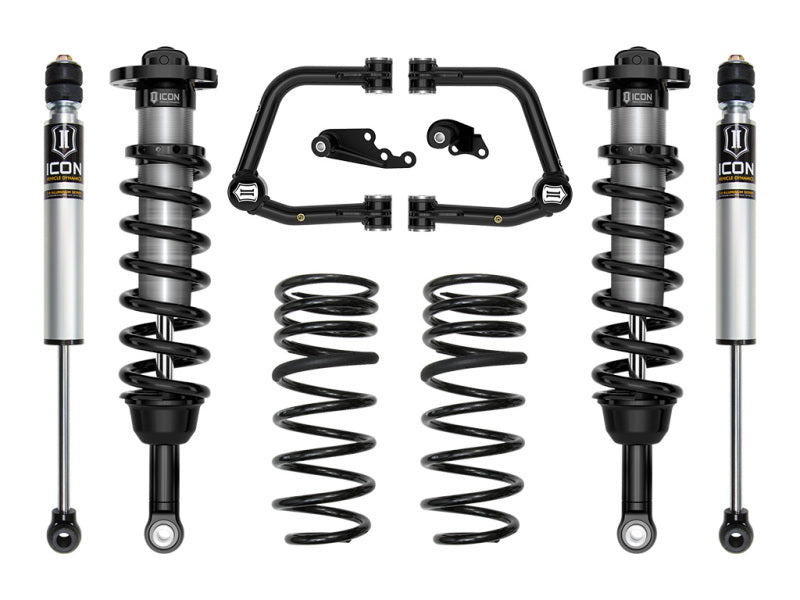

What's Included

Pair of 2.5 Series front coilover shocks with ICON-engineered coil springs
Tubular upper control arm kit with Delta Joint PRO
Pair of 2.0 Aluminum Series internal-reservoir rear shocks
Dual-rate rear coil springs
Front differential drop brackets and polyurethane differential mounting bushings
Vehicle-specific mounting hardware

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53352T
System: Stage 2, Tubular
Front Lift: 1.25-3 in adjustable
Rear Lift: 2 in
Front Shocks: 2.5 Series internal reservoir coilovers
Rear Shocks: 2.0 Aluminum Series internal reservoir
Upper Control Arms: Tubular with Delta Joint PRO (included)

Fitment

Direct fit for the 2024-2026 Lexus GX550. This system will NOT fit GX550 Overtrail models and is not compatible with Adaptive Variable Suspension (AVS) equipped vehicles. Recalibration of Advanced Driver Assistance Systems (ADAS) is required after installation.

2024-2026 Lexus GX550 (front and rear)

FAQ

Will the ICON K53352T fit a GX550 Overtrail?

No. It fits the 2024-2026 Lexus GX550 but does not fit the GX550 Overtrail trim and is not compatible with Adaptive Variable Suspension (AVS). On 4WD it uses the ICON differential drop (part #55156), and ADAS recalibration is required after installation.

How much lift does the ICON K53352T provide, and is it adjustable?

It provides 1.25 to 3 inches of adjustable front lift and about 2 inches of rear lift, clearing up to a 34x11.50 tire. The 2.5 Series front coilovers use ICON's non-adjustable Vehicle Specific (V.S.) valving tuned for the GX550.

What does the Stage 2 system include, and how does it differ from the other ICON stages?

Stage 2 pairs V.S. 2.5 Series front coilovers with tubular upper control arms (Delta Joint PRO), a front diff drop and dual-rate rear springs with 2.0 rear shocks. Stage 3 (K53353T) adds a billet adjustable rear track bar.
