ICON Stage 3 EXP Suspension System for 05-23 Toyota Tacoma

ICON Stage 3 EXP Suspension System for 05-23 Toyota Tacoma

$2,693.35 USD
$2,693.35 USD
Sale Sold out
Shipping calculated at checkout.

K53222

In stock
  • Calculated shipping — oversized item
  • Ships in 1–2 business days
  • 30-day hassle-free returns
  • Price match — found it cheaper?
  • Secure checkout — SSL encrypted

Key Features

  • Delivers 0-2 inches of front lift to level the stance and clear larger tires
  • 2.5 EXP Series front shocks with internal reservoirs bolt to the factory coil for improved control without a full coilover
  • Included billet upper control arms restore proper alignment geometry at ride height and add caster
  • Rebuildable Delta Joint pivot resists bind through full suspension travel and is fully serviceable
  • 2.0 Aluminum Series rear shocks balance the tune front-to-rear for a planted, controlled ride
  • Fully rebuildable and re-valvable ICON dampers for long-term serviceability

The ICON Vehicle Dynamics Stage 3 EXP Suspension System (K53222) is a complete front-and-rear shock package for the 2005-2023 Toyota Tacoma, delivering 0-2 inches of front lift using 2.5 EXP Series front shocks that reuse the factory coil springs and billet upper control arms.

Key Benefits

  • Delivers 0-2 inches of front lift to level the stance and clear larger tires
  • 2.5 EXP Series front shocks with internal reservoirs bolt to the factory coil for improved control without a full coilover
  • Included billet upper control arms restore proper alignment geometry at ride height and add caster
  • Rebuildable Delta Joint pivot resists bind through full suspension travel and is fully serviceable
  • 2.0 Aluminum Series rear shocks balance the tune front-to-rear for a planted, controlled ride
  • Fully rebuildable and re-valvable ICON dampers for long-term serviceability

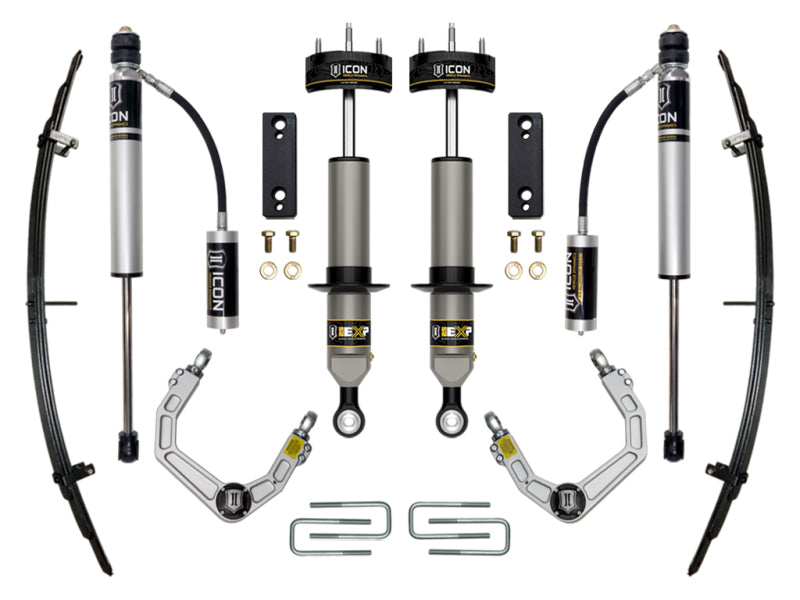

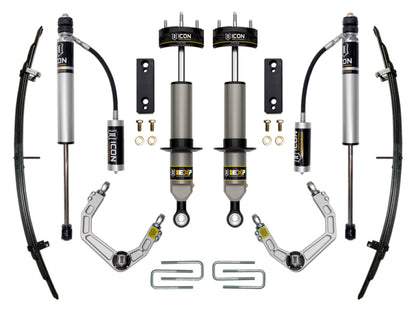

What's Included

  • Pair of 2.5 EXP Series front shocks with internal reservoirs (reuse the factory coil springs and hardware)
  • Pair of billet aluminum upper control arms with the ICON Delta Joint
  • Pair of 2.0 Aluminum Series remote-reservoir rear shocks
  • Rear 1.5 in. Add-a-Leaf spring kit
  • Sway bar relocation brackets and vehicle-specific mounting hardware

Specifications

  • Brand: ICON Vehicle Dynamics
  • Part Number: K53222
  • System: Stage 3
  • Front damper: 2.5 EXP Series internal-reservoir shock, non-adjustable velocity-sensitive valving
  • Rear damper: 2.0 Aluminum Series remote-reservoir
  • Upper control arms: billet aluminum
  • Front lift: 0-2 inches
  • Rear lift: 1.5 inches (via the included Add-a-Leaf kit)
  • Position: complete front-and-rear system

Fitment

This system is engineered for the 2005-2023 Toyota Tacoma. Does not fit TRD Pro models, or 2005-2015 rear-wheel-drive (2WD) Tacoma models.

  • 2005-2023 Toyota Tacoma (front and rear)

FAQ
Does the ICON K53222 fit a 2WD Tacoma?

It fits 4WD Tacoma models across the 2005-2023 range. It does not fit 2005-2015 rear-wheel-drive (2WD) Tacomas, and it does not fit the TRD Pro.

Does the Stage 3 kit include upper control arms?

Yes. The K53222 is a complete system that includes billet upper control arms with the ICON Delta Joint, so no separate aftermarket arms are needed.

How much rear lift does this kit provide?

Rear lift is 1.5 inches (via the included Add-a-Leaf kit).

Vehicle Fitment
Years Make Model SubmodelPosition
2005–2023 Toyota Tacoma —Front
