ICON Stage 2 EXP 0-2in Suspension System for 05-23 Toyota Tacoma

Name: ICON Stage 2 EXP 0-2in Suspension System for 05-23 Toyota Tacoma
Brand: ICON
SKU: K53221
Price: 1651.7 USD
Availability: InStock

$1,651.70 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53221

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Delivers 0-2 inches of front lift to level the stance and clear larger tires
2.5 EXP Series front shocks with internal reservoirs bolt to the factory coil for improved control without a full coilover
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

The ICON Vehicle Dynamics Stage 2 EXP Suspension System (K53221) is a complete front-and-rear shock package for the 2005-2023 Toyota Tacoma, delivering 0-2 inches of front lift using 2.5 EXP Series front shocks that reuse the factory coil springs.

Key Benefits

Delivers 0-2 inches of front lift to level the stance and clear larger tires
2.5 EXP Series front shocks with internal reservoirs bolt to the factory coil for improved control without a full coilover
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

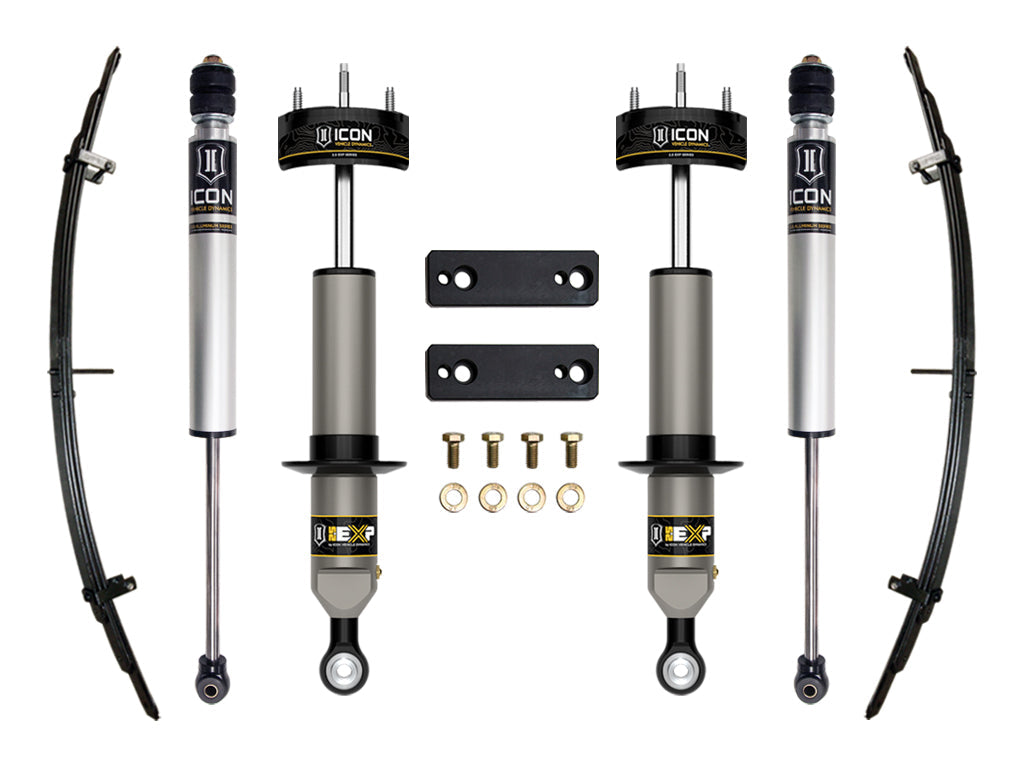

What's Included

Pair of 2.5 EXP Series front shocks with internal reservoirs (reuse the factory coil springs and hardware)
Pair of 2.0 Aluminum Series rear shocks
Rear 1.5 in. Add-a-Leaf spring kit
Sway bar relocation brackets and vehicle-specific mounting hardware

Fitment

This system is engineered for the 2005-2023 Toyota Tacoma. Does not fit TRD Pro models, or 2005-2015 rear-wheel-drive (2WD) Tacoma models.

2005-2023 Toyota Tacoma (front and rear)

FAQ

Does the ICON K53221 fit a 2WD Tacoma?

It fits 4WD Tacoma models across the 2005-2023 range. It does not fit 2005-2015 rear-wheel-drive (2WD) Tacomas, and it does not fit the TRD Pro.

What is included in this kit?

It is a complete front-and-rear system with front shocks, rear shocks, and the required brackets and hardware.

How much rear lift does this kit provide?

Rear lift is 1.5 inches (via the included Add-a-Leaf kit).

Vehicle Fitment

Years	Make	Model	Submodel	Position
2005–2023	Toyota	Tacoma	—	Front

Specifications

valve: none
system: Stage 2
rear lift: 1.5in (add-a-leaf)
drivetrain: 4WD 6-lug
front lift: 0-2in (adjustable)
rear shock: 2.0 aluminum series monotube
front shock: 2.5in EXP series, rebuildable
rear damper: 2.0 Aluminum Series
front damper: 2.5 EXP Series internal-reservoir shock, non-adjustable velocity-sensitive valving
uca required: no
max tire size: 33in
mounting position: complete front-and-rear system
