ICON Stage 1 3.0 CDCV Suspension System for 2022-2025 Toyota Tundra

Name: ICON Stage 1 3.0 CDCV Suspension System for 2022-2025 Toyota Tundra
Brand: ICON
SKU: K53211T
Price: 7023.34 USD
Availability: InStock

$7,023.34 USD

Sale Sold out

Final Sale — no returns or exchanges

Shipping calculated at checkout.

SKU:K53211T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Delivers 2-3.25 inches of front lift to level the stance and clear larger tires

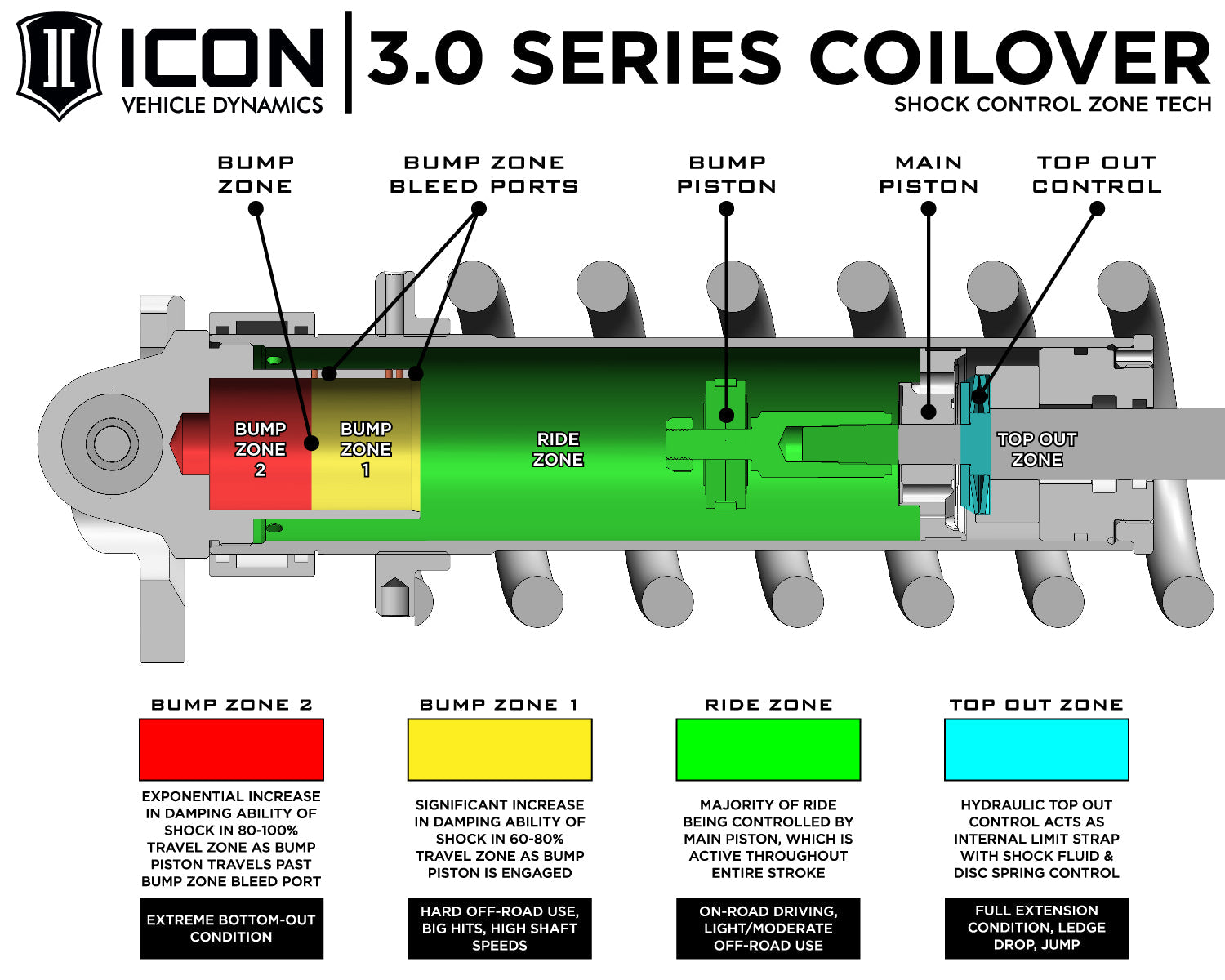

Large-bore 3.0 in. front coilovers add oil volume and piston area for cooler, fade-resistant damping on long runs
CDCV compression adjusters let you fine-tune ride firmness from soft street to firm off-road by hand
Included tubular upper control arms restore proper alignment geometry at ride height and add caster
Rebuildable Delta Joint PRO pivot resists bind through full suspension travel and is fully serviceable
2.5 Aluminum Series rear shocks balance the tune front-to-rear for a planted, controlled ride
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

The ICON Vehicle Dynamics Stage 1 3.0 Series Suspension System (K53211T) is a complete front-and-rear lift system for the 2022-2025 Toyota Tundra, delivering 2-3.25 inches of adjustable front lift with 3.0 Series front coilovers and tubular upper control arms.

Key Benefits

Delivers 2-3.25 inches of front lift to level the stance and clear larger tires
Large-bore 3.0 in. front coilovers add oil volume and piston area for cooler, fade-resistant damping on long runs
CDCV compression adjusters let you fine-tune ride firmness from soft street to firm off-road by hand
Included tubular upper control arms restore proper alignment geometry at ride height and add caster
Rebuildable Delta Joint PRO pivot resists bind through full suspension travel and is fully serviceable
2.5 Aluminum Series rear shocks balance the tune front-to-rear for a planted, controlled ride
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

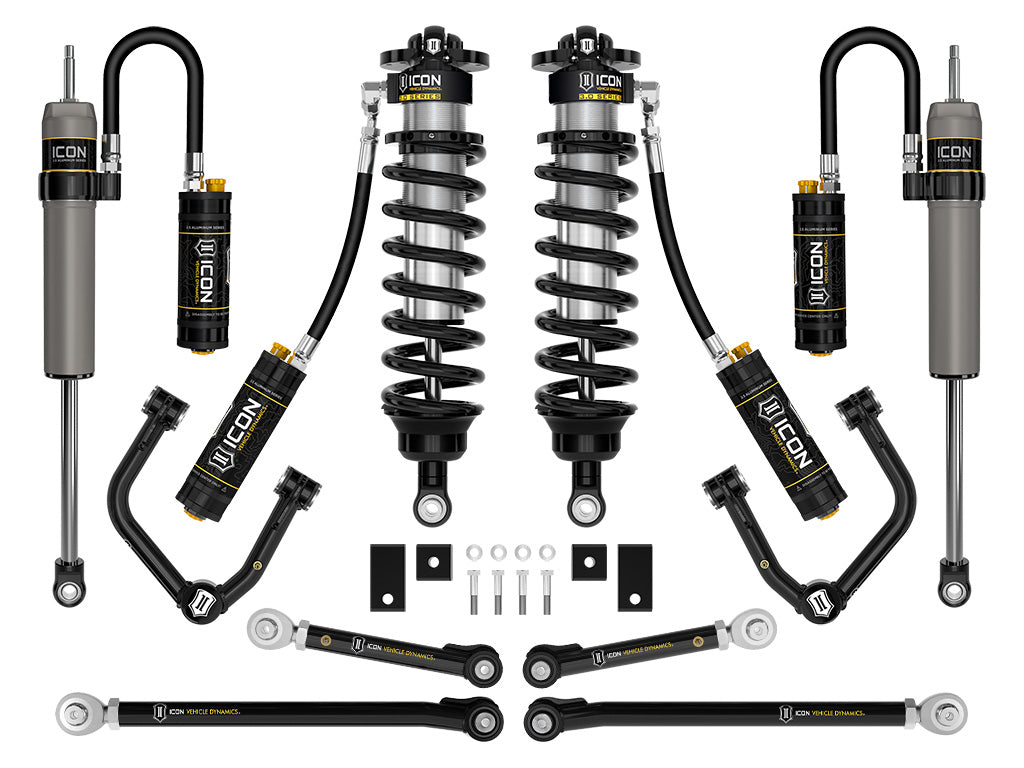

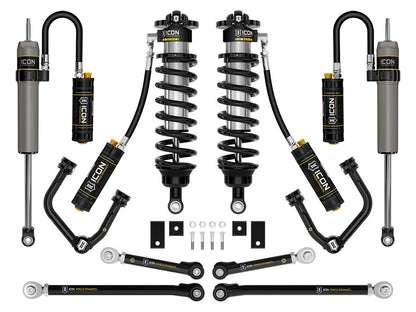

What's Included

Pair of 3.0 Series remote-reservoir front coilovers with CDCV compression adjusters
Pair of tubular upper control arms with the patented ICON Delta Joint PRO
Pair of 2.5 Aluminum Series remote-reservoir rear shocks with CDCV compression adjusters
Front sway bar drop brackets and vehicle-specific mounting hardware

Fitment

This system is engineered for the 2022-2025 Toyota Tundra. Does not fit vehicles with factory Adaptive Variable Suspension (AVS), or vehicles with the Load-Leveling Rear Height Control air suspension. Front lift range varies by powertrain (i-Force gas gets the full range; the i-Force MAX hybrid and TRD Pro see a reduced range). On 4WD models without the TRD Off-Road package, ICON recommends the ICON differential drop kit (part #55156). Recalibration of the Advanced Driver Assistance Systems (ADAS) is required after installation.

2022-2025 Toyota Tundra (front and rear)

FAQ

Does the ICON K53211T fit my Toyota Tundra?

It fits the 2022-2025 Toyota Tundra. It does not fit trucks with factory Adaptive Variable Suspension (AVS) or the Load-Leveling Rear Height Control air suspension. Front lift range varies between the i-Force gas, i-Force MAX hybrid, and TRD Pro trims.

Does the Stage 1 kit include upper control arms?

Yes. The K53211T is a complete system that includes tubular upper control arms with the ICON Delta Joint PRO, so no separate aftermarket arms are needed.

What does CDCV mean on this ICON system?

CDCV is ICON's Compression Damping Control Valve — an external, hand-adjustable compression knob (10 positions) on each shock that lets you tune ride firmness without tools.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2022–2025	Toyota	Tundra	—	Front

Specifications

stage: Stage 1
valve: CDCV
system: Stage 1
front uca: Tubular with Delta Joint PRO (included)
rear lift: 0-1.5 inches (0-1 in. with the TRD package)
front lift: 2-3.25 inches
max tire: 35 in
rear damper: 2.5 Aluminum Series remote-reservoir with CDCV adjusters
rear series: 2.5 Aluminum Series remote reservoir shock
system type: Complete front and rear suspension system
front damper: 3.0 Series remote-reservoir coilover, CDCV compression-adjustable
front series: 3.0 Series remote reservoir coilover
mounting position: complete front-and-rear system
upper control arms: tubular, with Delta Joint PRO
