ICON Stage 11 2.5 Billet Suspension System for 22-26 Toyota Tundra

Name: ICON Stage 11 2.5 Billet Suspension System for 22-26 Toyota Tundra
Brand: ICON
SKU: K53201S
Price: 8480.3 USD
Availability: InStock

$8,480.30 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53201S

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Delivers 1.25-3.5 inches of front lift to level the stance and clear larger tires
2.5 in. front coilovers add oil volume and piston area for cooler, fade-resistant damping on long runs
CDCV compression adjusters let you fine-tune ride firmness from soft street to firm off-road by hand
Included billet upper control arms restore proper alignment geometry at ride height and add caster
Rebuildable Delta Joint PRO pivot resists bind through full suspension travel and is fully serviceable
Adjustable billet rear links dial in pinion angle and axle centering at the new ride height
2.5 Aluminum Series rear shocks balance the tune front-to-rear for a planted, controlled ride

The ICON Vehicle Dynamics Stage 11 2.5 Series Suspension System (K53201S) is a complete front-and-rear lift system for the 2022-2026 Toyota Tundra, delivering 1.25-3.5 inches of adjustable front lift with 2.5 Series front coilovers and billet upper control arms.

Key Benefits

Delivers 1.25-3.5 inches of front lift to level the stance and clear larger tires
2.5 in. front coilovers add oil volume and piston area for cooler, fade-resistant damping on long runs
CDCV compression adjusters let you fine-tune ride firmness from soft street to firm off-road by hand
Included billet upper control arms restore proper alignment geometry at ride height and add caster
Rebuildable Delta Joint PRO pivot resists bind through full suspension travel and is fully serviceable
Adjustable billet rear links dial in pinion angle and axle centering at the new ride height
2.5 Aluminum Series rear shocks balance the tune front-to-rear for a planted, controlled ride
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

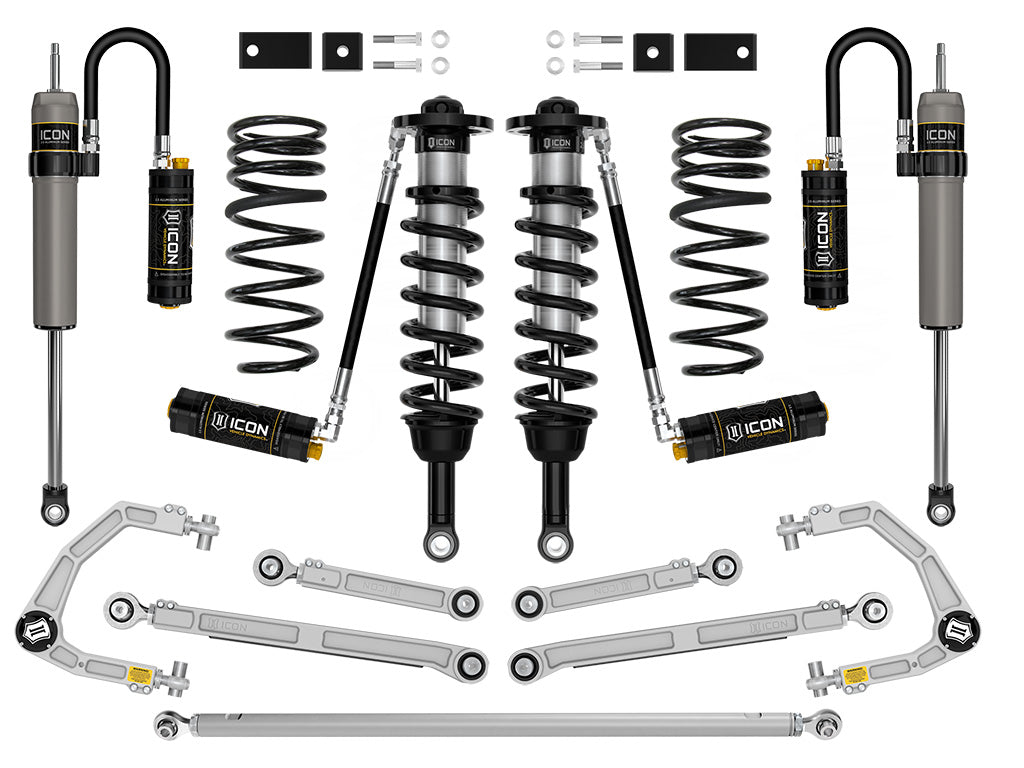

What's Included

Pair of 2.5 Series remote-reservoir front coilovers with CDCV compression adjusters
Pair of billet aluminum upper control arms with the patented ICON Delta Joint PRO
Pair of 2.5 Aluminum Series remote-reservoir rear shocks with CDCV compression adjusters
Billet aluminum adjustable rear upper and lower links, CNC-machined from 6061 aluminum and anodized
Front sway bar drop brackets and vehicle-specific mounting hardware

Fitment

This system is engineered for the 2022-2026 Toyota Tundra. Does not fit vehicles with factory Adaptive Variable Suspension (AVS), or vehicles with the Load-Leveling Rear Height Control air suspension. Front lift range varies by powertrain (i-Force gas gets the full range; the i-Force MAX hybrid and TRD Pro see a reduced range). On 4WD models without the TRD Off-Road package, ICON recommends the ICON differential drop kit (part #55156). Recalibration of the Advanced Driver Assistance Systems (ADAS) is required after installation. K53201S is ICON's TRD-suspension-package tune of the Stage 11 CDCV system; the standard Stage 11 is K53201.

2022-2026 Toyota Tundra (front and rear)

FAQ

Does the ICON K53201S fit my Toyota Tundra?

It fits the 2022-2026 Toyota Tundra. It does not fit trucks with factory Adaptive Variable Suspension (AVS) or the Load-Leveling Rear Height Control air suspension. Front lift range varies between the i-Force gas, i-Force MAX hybrid, and TRD Pro trims.

Does the Stage 11 kit include upper control arms?

Yes. The K53201S is a complete system that includes billet upper control arms with the ICON Delta Joint PRO, so no separate aftermarket arms are needed.

Which Stage 11 system should I choose, K53201 or K53201S?

K53201S is tuned for trucks with the factory TRD suspension package; the standard K53201 is for non-TRD-suspension trucks. Both are billet CDCV Stage 11 systems with adjustable rear links.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2022–2026	Toyota	Tundra	—	Front

Specifications

valve: CDCV
series: 2.5 remote reservoir
system: Stage 11
max tire: 35 in
rear lift: 0.75 in (TRD) / 1.25 in (non-TRD)
front lift: 1.25-3.5 inches
rear links: billet aluminum adjustable rear upper and lower links, CNC-machined from 6061 aluminum and anodized
rear damper: 2.5 Aluminum Series remote-reservoir with CDCV adjusters
system type: complete front and rear
front damper: 2.5 Series remote-reservoir coilover, CDCV compression-adjustable
front lift range: 1.25-3.5 in
mounting position: complete front-and-rear system
upper control arms: billet aluminum (included)
controller required: no (manual CDC Valve)
