ICON Stage 11 CDCV Suspension System for 2022-2026 Toyota Tundra

Transform your 2022-2026 Toyota Tundra with the ICON Vehicle Dynamics Stage 11 complete suspension system. Building on the Stage 10 platform, it adds triple-rate rear coil springs and an adjustable rear track bar for a dialed-in stance, superior ride quality, and serious off-road capability while clearing tires up to 35 inches.

Key Benefits

• Up to 1.25-3.5 inches of front lift adjustability over stock on i-Force gas models for an aggressive, level stance
• 2.5 Series remote-reservoir coilovers deliver up to 40% more suspension travel than stock
• CDC Valve (CDCV) technology gives 10 levels of compression damping, soft to hard, dialed in by hand
• Triple-rate rear coils combine on-road comfort with excellent bottoming resistance off-road
• Billet aluminum upper control arms with patented Delta Joint Pro for strength, durability, and corrected alignment geometry

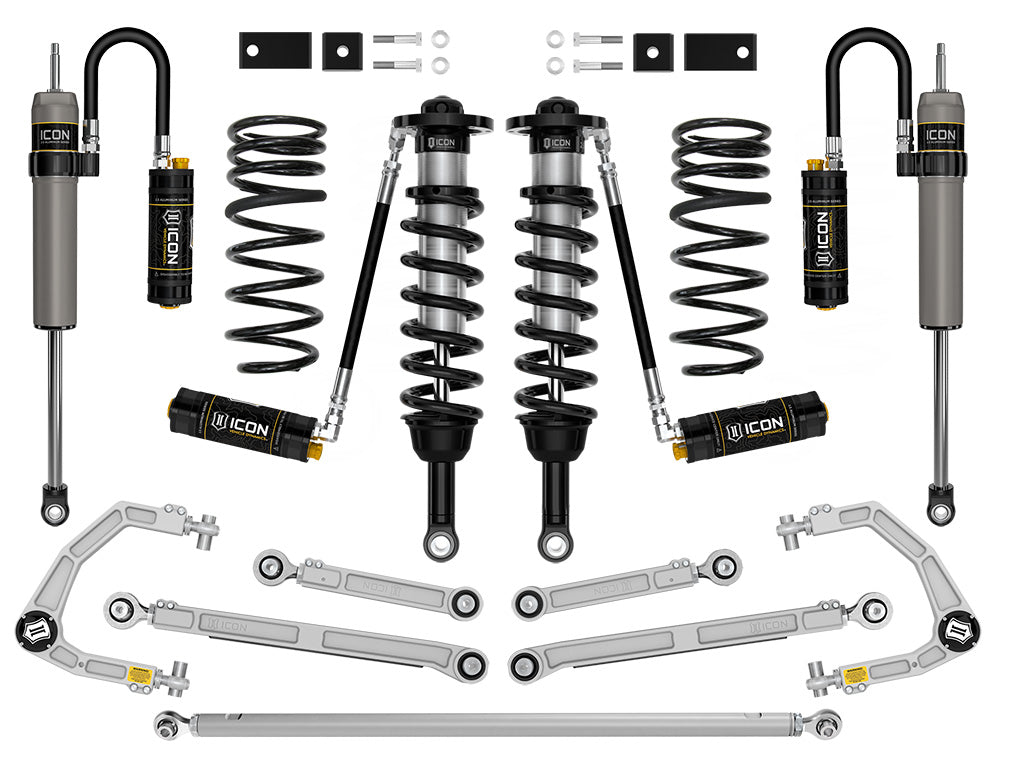

What's Included

• 2.5 Series remote-reservoir front coilovers with CDC Valves
• Billet aluminum front upper control arms (Delta Joint Pro)
• Triple-rate rear coil springs
• Billet adjustable rear track bar
• Billet aluminum adjustable rear upper and lower links
• 2.5 Aluminum Series rear remote-reservoir shocks with CDC Valves
• Front sway bar drop brackets

Specifications

• Brand: ICON Vehicle Dynamics
• Part Number: K53201
• Series: Stage 11, 2.5 Series
• Valve type: CDCV (manually adjustable CDC Valve, 10 settings)
• Front lift: 1.25-3.5 in (i-Force gas), 0.75-3 in (i-Force MAX hybrid)
• Rear lift: 0.5 in (non-TRD), 0 in (TRD / TRD Pro)
• Upper control arms: Billet aluminum, included
• Max tire size: up to 35 in

Fitment

This complete front-and-rear system is engineered for the 2022-2026 Toyota Tundra. Billet upper control arms are included, so no additional aftermarket UCAs are required. Rear lift varies by trim: non-TRD trucks net about 0.5 inch, while TRD and TRD Pro trucks remain near stock rear height.

• 2022-2026 Toyota Tundra (front and rear)
