ICON Stage 10 CDCV 2.5 Suspension System for 2022-2025 Toyota Tundra

Transform your 2022-2025 Toyota Tundra with the ICON Vehicle Dynamics Stage 10 suspension system - a complete, bolt-on package engineered for serious on- and off-road performance. Built around 2.5 Series remote-reservoir coilovers with externally adjustable CDCV compression damping, this kit delivers up to 40% more wheel travel than stock while dialing in a proper lifted stance.

Key Benefits

• Up to 2-3.5 inches of adjustable front lift over stock (2-3 inches on i-Force MAX hybrid models)
• 10-position CDCV manual knob lets you tune compression damping from soft to firm on the fly
• Tubular upper control arms with Delta Joint Pro correct alignment and improve durability
• Increases suspension travel up to 40% over factory for better control on rough terrain
• Clearance for 35-inch tires with a recommended 17x8.5 wheel
• 100% bolt-on installation - no drilling, cutting, or welding

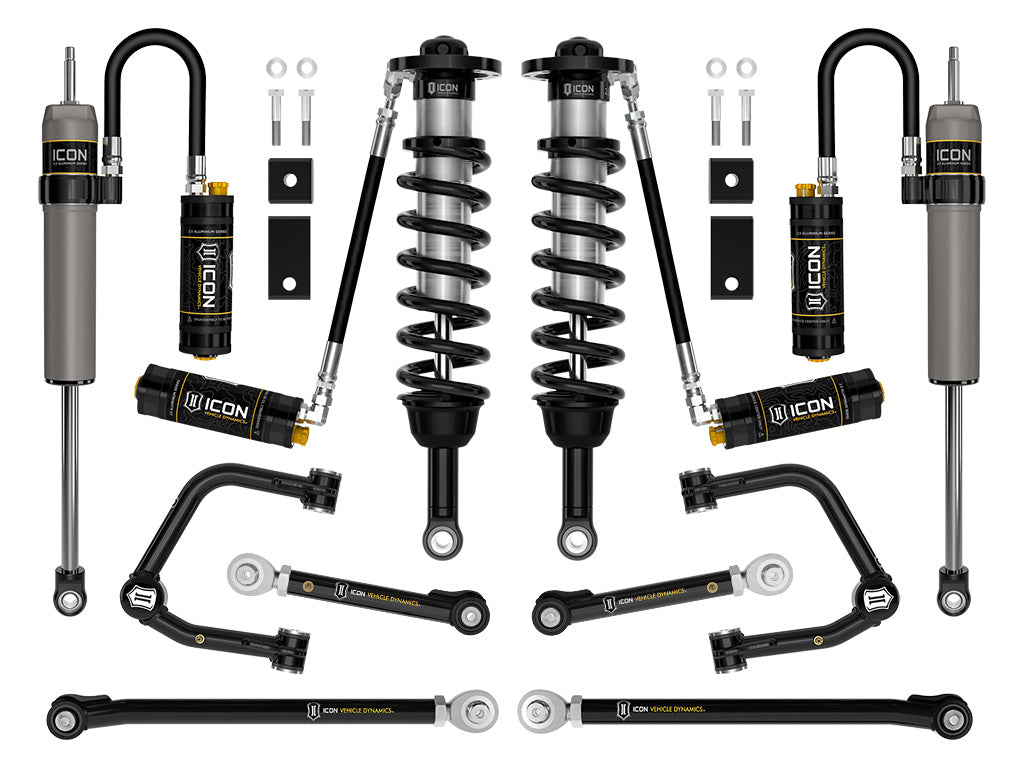

What's Included

• 2.5 Series CDCV remote-reservoir front coilovers (pair)
• Tubular front upper control arms with Delta Joint Pro
• Front sway bar drop kit
• Tubular rear upper and lower link kit
• 2.5 Aluminum Series CDCV rear remote-reservoir shocks (pair)

Specifications

• Brand: ICON Vehicle Dynamics
• Part Number: K53200T
• Series: Stage 10, 2.5 Series
• Valve Type: CDCV (manual 10-detent compression adjuster)
• Upper Control Arm: Tubular with Delta Joint Pro
• Front Lift Range: 2-3.5 inches (2-3 inches i-Force MAX)
• Rear Lift Range: 0-1.5 inches
• Recommended Tire: 35x12.50
• Recommended Wheel: 17x8.5, 5.75 in backspace / 25mm offset

Fitment

Engineered specifically for the third-generation 2022-2025 Toyota Tundra (2WD and 4WD). Not compatible with models equipped with load-leveling rear air suspension or Adaptive Variable Suspension (AVS / TRD Pro). ADAS recalibration is recommended after installation.

• 2022-2025 Toyota Tundra - Front
