ICON Stage 9 CDXS Suspension System for 2022-2025 Toyota Tundra

Name: ICON Stage 9 CDXS Suspension System for 2022-2025 Toyota Tundra
Brand: ICON
SKU: K53199TD
Price: 5346.55 USD
Availability: InStock

$5,346.55 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53199TD

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Delivers 2-3.5 inches of front lift to level the stance and clear larger tires
2.5 in. front coilovers add oil volume and piston area for cooler, fade-resistant damping on long runs
CDXS dual-speed valving separates high- and low-speed compression for precise on- and off-road tuning
Included tubular upper control arms restore proper alignment geometry at ride height and add caster
Rebuildable Delta Joint PRO pivot resists bind through full suspension travel and is fully serviceable
2.5 Aluminum Series rear shocks balance the tune front-to-rear for a planted, controlled ride
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

The ICON Vehicle Dynamics Stage 9 2.5 Series Suspension System (K53199TD) is a complete front-and-rear lift system for the 2022-2025 Toyota Tundra, delivering 2-3.5 inches of adjustable front lift with 2.5 Series front coilovers and tubular upper control arms.

Key Benefits

Delivers 2-3.5 inches of front lift to level the stance and clear larger tires
2.5 in. front coilovers add oil volume and piston area for cooler, fade-resistant damping on long runs
CDXS dual-speed valving separates high- and low-speed compression for precise on- and off-road tuning
Included tubular upper control arms restore proper alignment geometry at ride height and add caster
Rebuildable Delta Joint PRO pivot resists bind through full suspension travel and is fully serviceable
2.5 Aluminum Series rear shocks balance the tune front-to-rear for a planted, controlled ride
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

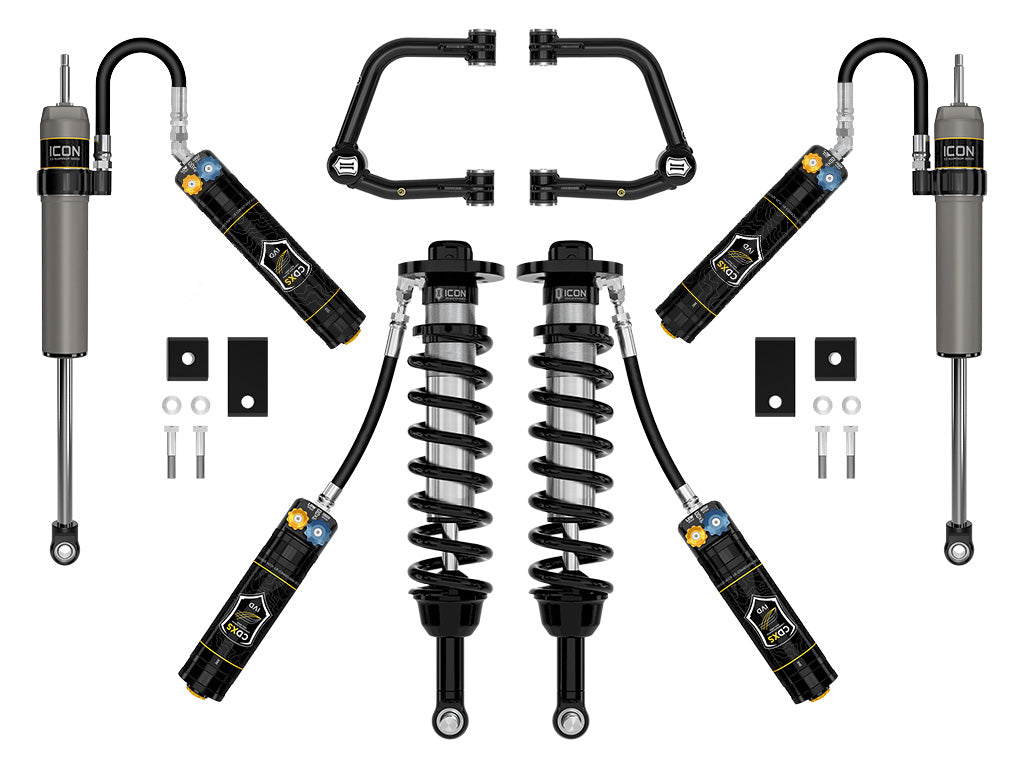

What's Included

Pair of 2.5 Series remote-reservoir front coilovers with CDXS compression adjusters
Pair of tubular upper control arms with the patented ICON Delta Joint PRO
Pair of 2.5 Aluminum Series remote-reservoir rear shocks with CDXS dual-speed compression adjusters
Front sway bar drop brackets and vehicle-specific mounting hardware

Fitment

This system is engineered for the 2022-2025 Toyota Tundra. Does not fit vehicles with factory Adaptive Variable Suspension (AVS), or vehicles with the Load-Leveling Rear Height Control air suspension. Front lift range varies by powertrain (i-Force gas gets the full range; the i-Force MAX hybrid and TRD Pro see a reduced range). On 4WD models without the TRD Off-Road package, ICON recommends the ICON differential drop kit (part #55156). Recalibration of the Advanced Driver Assistance Systems (ADAS) is required after installation.

2022-2025 Toyota Tundra (front and rear)

FAQ

Does the ICON K53199TD fit my Toyota Tundra?

It fits the 2022-2025 Toyota Tundra. It does not fit trucks with factory Adaptive Variable Suspension (AVS) or the Load-Leveling Rear Height Control air suspension. Front lift range varies between the i-Force gas, i-Force MAX hybrid, and TRD Pro trims.

Does the Stage 9 kit include upper control arms?

Yes. The K53199TD is a complete system that includes tubular upper control arms with the ICON Delta Joint PRO, so no separate aftermarket arms are needed.

What is the difference between CDXS and CDCV?

CDXS is ICON's dual-speed compression adjuster, tuning high-speed and low-speed compression independently for finer control than the single-adjustment CDCV. The CDCV sibling of this system is K53199T.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2022–2025	Toyota	Tundra	—	Front

Specifications

stage: 9
valve: CDXS
system: Stage 9
coverage: front and rear (complete system)
rear lift: 0-1.5 inches (0-1 in. with the TRD package)
front lift: 2-3.5 in (2-3 in on i-Force MAX; reduced on TRD Pro)
standalone: Yes
rear damper: 2.5 Aluminum Series remote-reservoir with CDXS adjusters
front damper: 2.5 Series remote-reservoir coilover, CDXS compression-adjustable
shock series: 2.5 Series remote reservoir
mounting position: complete front-and-rear system

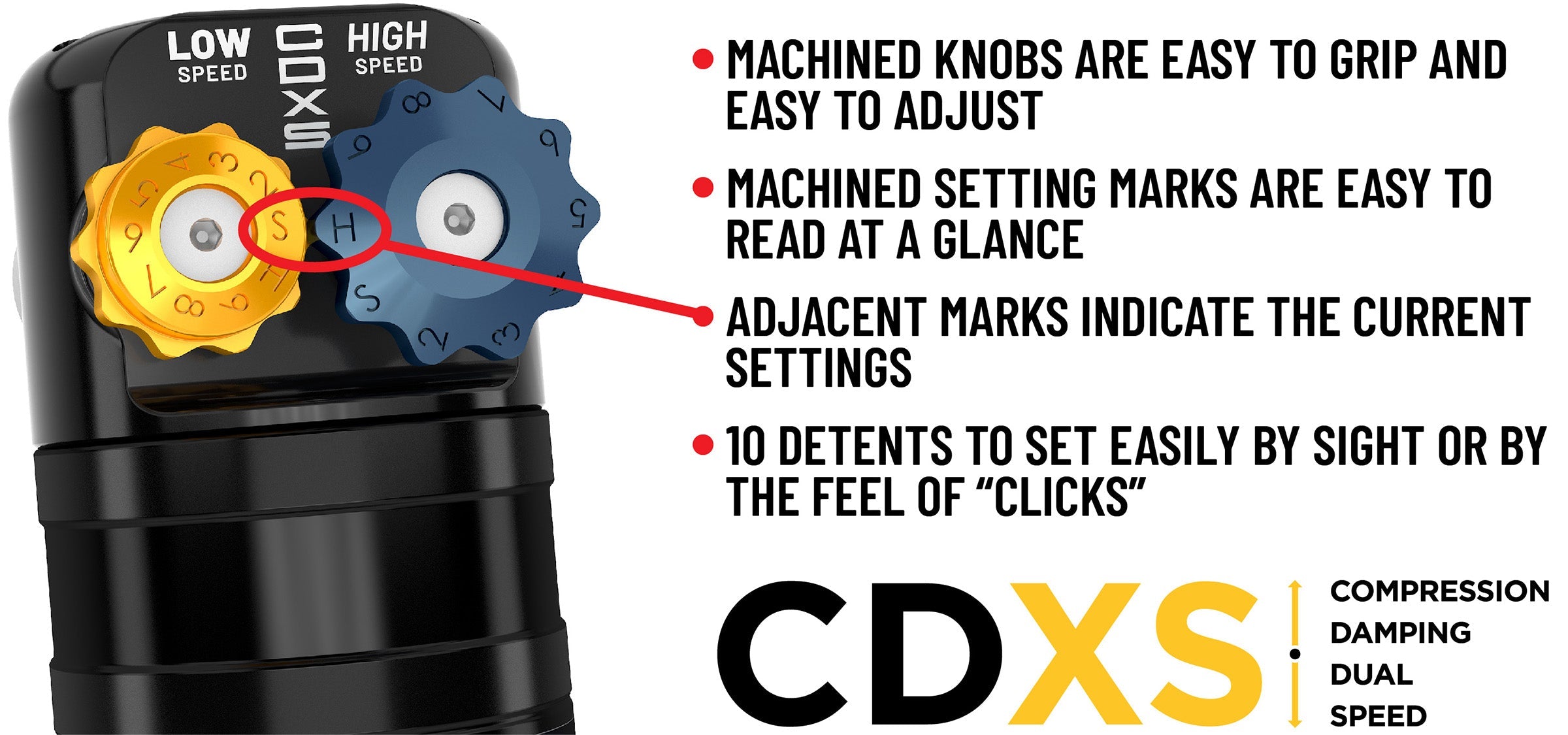

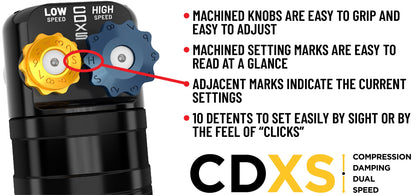

valve description: Compression Damping Dual-Speed - independent high-speed and low-speed compression adjustment, 10 settings each
upper control arms: Tubular with Delta Joint PRO (included)
includes sway bar drop: Yes
