ICON Stage 9 CDCV Suspension System for 22-25 Toyota Sequoia & Tundra

Upgrade your 2022-2025 Toyota Tundra or 2023-2025 Sequoia with ICON's most complete bolt-on package: the Stage 9 Suspension System. This kit transforms ride quality, stance, and off-road capability with 2.5 Series remote-reservoir coilovers and rear shocks featuring ICON's CDCV manual compression adjusters, plus billet aluminum upper control arms with the Delta Joint Pro.

Key Benefits

• 1.25-3.5in of front lift adjustability for a leveled, aggressive stance and clearance for up to 35in tires
• 2.5 Series remote-reservoir coilovers and rear shocks with CDCV for fade-free, high-temp performance
• 10 levels of manual compression adjustment to fine-tune ride on the street and on the trail
• Billet aluminum upper control arms with Delta Joint Pro correct alignment geometry at lift height
• Front sway bar drop kit maintains proper sway bar geometry after lifting
• Improved alignment specs and increased front-end travel over factory suspension

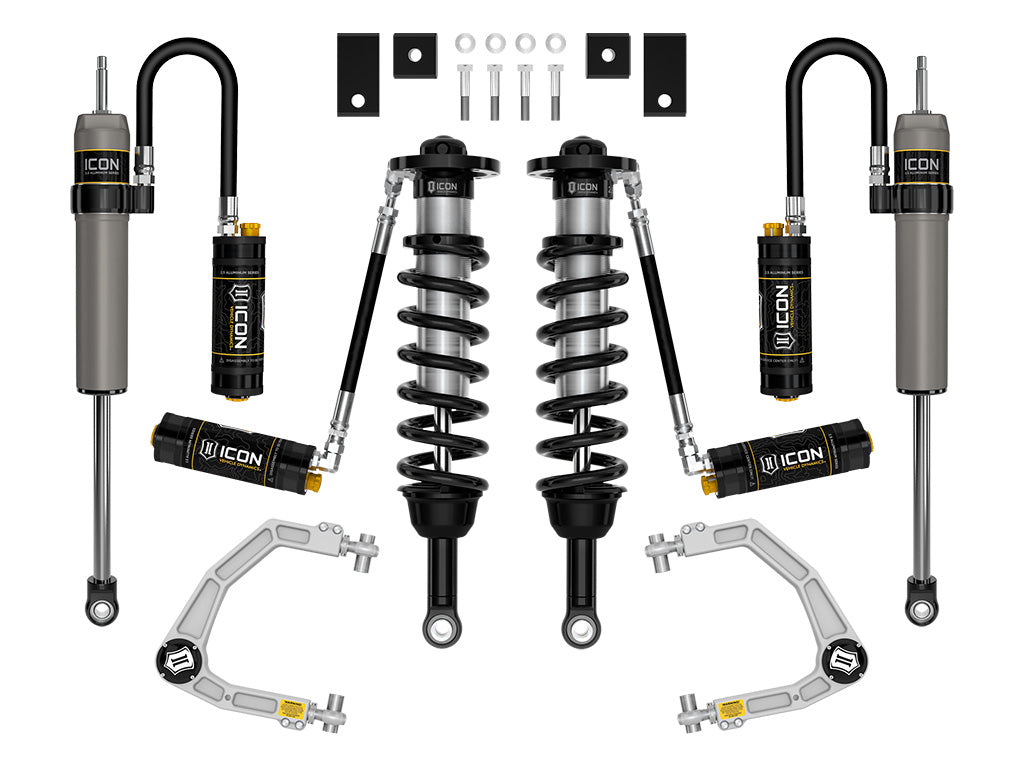

What's Included

• Pair of 2.5 Series front remote-reservoir coilovers with CDCV
• Pair of billet aluminum upper control arms with Delta Joint Pro
• Front sway bar drop kit
• Pair of 2.5 Aluminum Series rear remote-reservoir shocks with CDCV
• Mounting hardware

Specifications

• Brand: ICON Vehicle Dynamics
• Part number: K53199
• Stage: 9
• Shock series: 2.5 Series remote reservoir
• Valve type: CDCV (manual 10-position compression)
• Front lift: 1.25-3.5in (i-Force gas); 0.75-3in (i-Force MAX hybrid); 0-1.75in (TRD Pro)
• Position: Front and rear
• Max tire size: up to 35in

Fitment

Verified for the exact part number K53199. Fits 3rd-generation Toyota Tundra and 3rd-generation Toyota Sequoia.

• 2022-2025 Toyota Tundra (2WD/4WD)
• 2023-2025 Toyota Sequoia

Not compatible with vehicles equipped with load-leveling rear air suspension (AVS). Non-TRD Off-Road 4WD models require the ICON Diff Drop (part 55156) or Toyota TRD axles to avoid front axle damage. ADAS recalibration is required after installation. Professional installation and a post-install alignment are recommended.
