ICON Stage 8 VS 2.5 Suspension System for 2022-2025 Toyota Tundra

Name: ICON Stage 8 VS 2.5 Suspension System for 2022-2025 Toyota Tundra
Brand: ICON
SKU: K53198T
Price: 5774.18 USD
Availability: BackOrder

$5,774.18 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53198T

On backorder — ships when back in stock

Calculated shipping — oversized item
Ships when back in stock
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Delivers 2-3.5 inches of front lift to level the stance and clear larger tires
2.5 in. front coilovers add oil volume and piston area for cooler, fade-resistant damping on long runs
Included tubular upper control arms restore proper alignment geometry at ride height and add caster
Rebuildable Delta Joint PRO pivot resists bind through full suspension travel and is fully serviceable
2.5 Aluminum Series rear shocks balance the tune front-to-rear for a planted, controlled ride
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

The ICON Vehicle Dynamics Stage 8 2.5 Series Suspension System (K53198T) is a complete front-and-rear lift system for the 2022-2025 Toyota Tundra, delivering 2-3.5 inches of adjustable front lift with 2.5 Series front coilovers and tubular upper control arms.

Key Benefits

Delivers 2-3.5 inches of front lift to level the stance and clear larger tires
2.5 in. front coilovers add oil volume and piston area for cooler, fade-resistant damping on long runs
Included tubular upper control arms restore proper alignment geometry at ride height and add caster
Rebuildable Delta Joint PRO pivot resists bind through full suspension travel and is fully serviceable
2.5 Aluminum Series rear shocks balance the tune front-to-rear for a planted, controlled ride
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

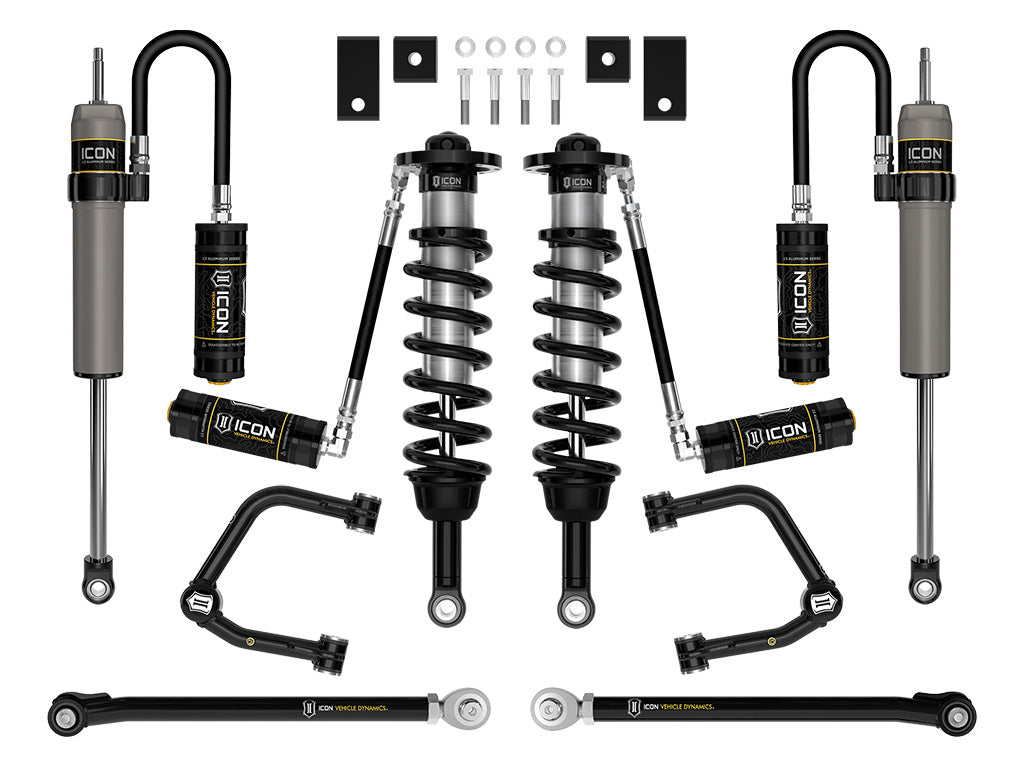

What's Included

Pair of 2.5 Series internal-reservoir front coilovers
Pair of tubular upper control arms with the patented ICON Delta Joint PRO
Pair of 2.5 Aluminum Series remote-reservoir rear shocks
Front sway bar drop brackets and vehicle-specific mounting hardware

Fitment

This system is engineered for the 2022-2025 Toyota Tundra. Does not fit vehicles with factory Adaptive Variable Suspension (AVS), or vehicles with the Load-Leveling Rear Height Control air suspension. Front lift range varies by powertrain (i-Force gas gets the full range; the i-Force MAX hybrid and TRD Pro see a reduced range). On 4WD models without the TRD Off-Road package, ICON recommends the ICON differential drop kit (part #55156). Recalibration of the Advanced Driver Assistance Systems (ADAS) is required after installation.

2022-2025 Toyota Tundra (front and rear)

FAQ

Does the ICON K53198T fit my Toyota Tundra?

It fits the 2022-2025 Toyota Tundra. It does not fit trucks with factory Adaptive Variable Suspension (AVS) or the Load-Leveling Rear Height Control air suspension. Front lift range varies between the i-Force gas, i-Force MAX hybrid, and TRD Pro trims.

Does the Stage 8 kit include upper control arms?

Yes. The K53198T is a complete system that includes tubular upper control arms with the ICON Delta Joint PRO, so no separate aftermarket arms are needed.

What is the difference between the tubular and billet versions?

This K53198T uses tubular upper control arms and starts at a 2 in. minimum lift; the billet-arm sibling offers a wider low-end adjustment range. Both use the same ICON Delta Joint PRO.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2022–2025	Toyota	Tundra	—	Front

Specifications

valve: CDCV
system: Stage 8
rear lift: 0-1.5 inches (0-1 in. with the TRD package)
drivetrain: 2WD/4WD
front lift: 2-3.5 inches
rear shock: ICON 2.5 Aluminum Series remote reservoir
front shock: ICON VS 2.5 Series remote reservoir
rear damper: 2.5 Aluminum Series remote-reservoir
front damper: 2.5 Series internal-reservoir coilover, non-adjustable velocity-sensitive valving
includes ucas: yes (tubular, Delta Joint PRO)
max tire size: 35x12.50 in
front lift range: 2-3.5 in
mounting position: complete front-and-rear system
upper control arms: tubular, with Delta Joint PRO
air suspension compatible: no
