ICON Stage 7 2.5 Suspension System for 2022-2025 Toyota Tundra

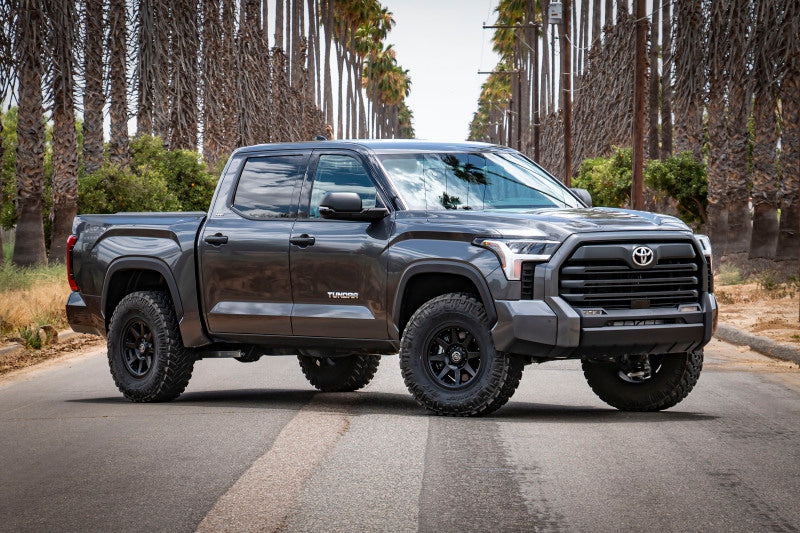

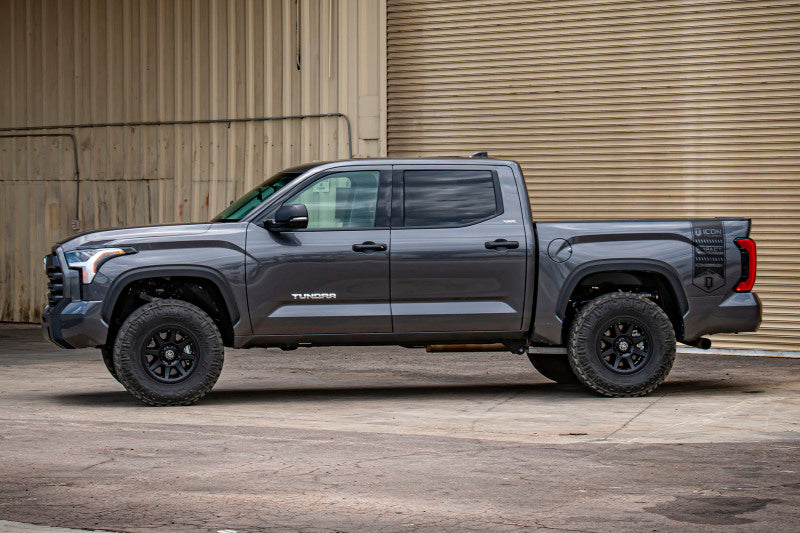

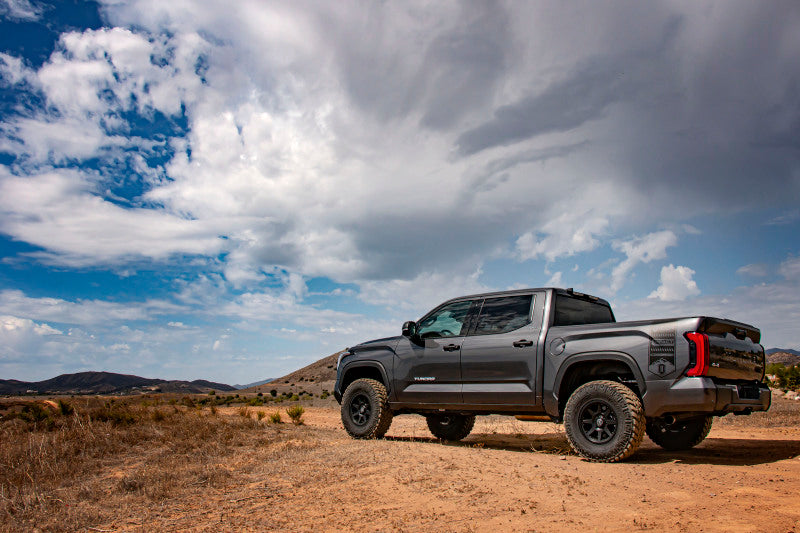

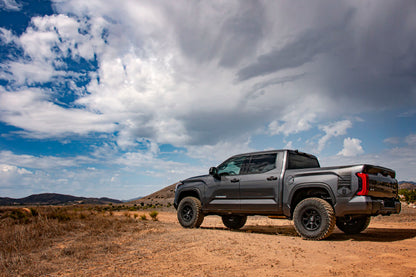

Take your 2022-2025 Toyota Tundra to the top of the ICON lineup with the Stage 7 Tubular Suspension System (K53197T). This complete front-and-rear package pairs ICON's 2.5 Series remote-reservoir front coilovers with tubular upper control arms, a sway bar drop kit, and 2.5 Aluminum Series rear remote-reservoir shocks for a balanced, trail-ready ride that clears up to 35in tires.

Key Benefits

• Up to 2-3.5in of front lift over stock for an aggressive stance and added tire clearance
• 2.5 Series remote-reservoir coilovers deliver up to 40% more wheel travel than stock
• Tubular upper control arms with Delta Joint Pro restore correct alignment geometry at lift height
• Rear 2.5 Aluminum Series reservoir shocks with internal Bump Zone control hard bottom-outs
• Sway bar drop kit maintains proper sway bar geometry at ride height
• Engineered, valved, and tuned specifically for the third-generation Tundra platform

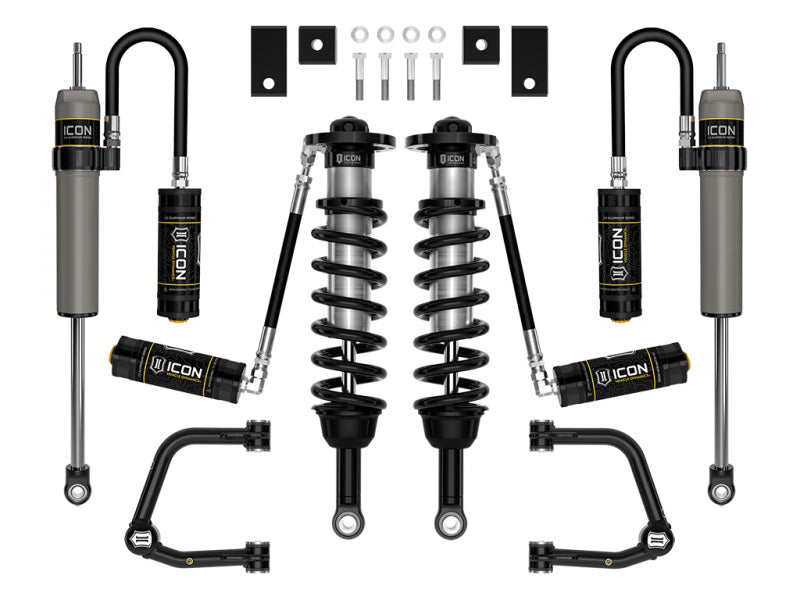

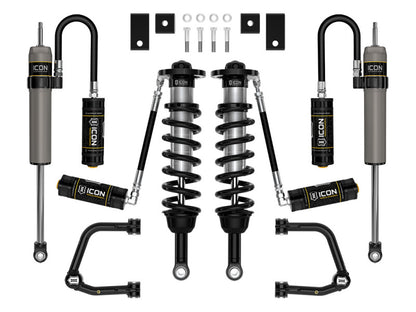

What's Included

• 2.5 Series remote-reservoir front coilovers (pair)
• Tubular upper control arms with Delta Joint Pro (pair)
• Sway bar drop kit
• 2.5 Aluminum Series rear remote-reservoir shocks (pair)
• Mounting and assembly hardware

Specifications

• Series: ICON 2.5 Series (front and rear remote reservoir)
• Stage: 7 (Tubular)
• Front lift: 2-3.5in (i-Force gas); 2-3in (i-Force MAX hybrid)
• Position: Front and rear
• Upper control arms: Tubular, included
• Max tire size: 35in (e.g. 35x12.50 on 17x8.5in, 5.75in backspace)

Fitment

Direct fit for the 2022-2025 Toyota Tundra (third generation). Not compatible with Tundras equipped with the factory Load-Leveling Rear Height Control Air Suspension. ADAS recalibration is required after installation. A differential drop kit is recommended for non-TRD Off-Road 4WD models.

• 2022-2025 Toyota Tundra - Front and Rear
