ICON Stage 7 2.5 Billet Suspension System for 2022-2025 Toyota Tundra

Transform your 2022-2025 Toyota Tundra with ICON Vehicle Dynamics' Stage 7 Suspension System, a complete front-and-rear package engineered for serious off-road performance and on-road comfort. This Billet kit combines ICON's 2.5 Series velocity-sensitive front coilovers, forged billet aluminum upper control arms, and 2.5 Series rear reservoir shocks to deliver a fully tuned ride.

Key Benefits

• Up to 3.5 inches of front lift over stock, clearing 35-inch tires
• 2.5 Series front coilovers with remote reservoirs for fade-free damping on long, rough trails
• Forged billet aluminum upper control arms with Delta Joint Pro for 90 degrees of articulation and long-term durability
• 2.5 Series rear reservoir shocks with internal Bump Zone for up to 20 percent more damping force on big hits
• Sway bar drop kit included to maintain correct geometry at the new ride height
• Adjustable front ride height for dialing in stance and tire fitment

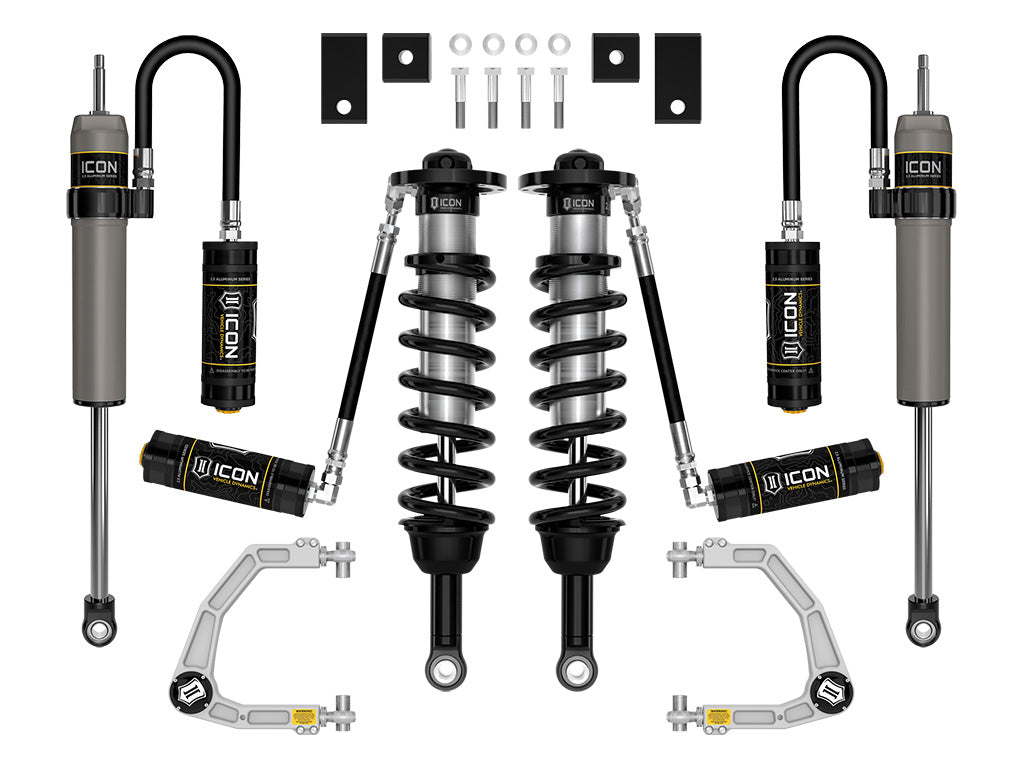

What's Included

• 2.5 Series velocity-sensitive front coilover pair with remote reservoirs
• Billet aluminum upper control arm pair with Delta Joint Pro
• Sway bar drop kit
• 2.5 Series rear reservoir shock pair with internal Bump Zone
• Mounting hardware

Specifications

• Front lift: 1.25-3.5 in (i-Force gas), 0.75-3 in (i-Force MAX hybrid), 0-1.75 in (TRD Pro)
• Rear lift: 0-1.5 in (coil spring), 0-1 in (TRD suspension)
• Shock body: ICON 2.5 Series, velocity sensitive, remote reservoir front and rear
• Upper control arms: forged billet aluminum, Delta Joint Pro
• Recommended tire: up to 35 in
• Position: front and rear (complete system)

Fitment

Fits 2022-2025 Toyota Tundra (3rd generation), 2WD and 4WD. Not compatible with Tundras equipped with the factory load-leveling rear height-control air suspension. For 4WD models without the TRD Off-Road package, ICON recommends the ICON Diff Drop (Part No. 55156) or Toyota TRD axles to prevent front axle damage; this is not required on TRD Pro. ADAS recalibration is required after installation.

• 2022-2025 Toyota Tundra (front and rear)
