ICON Stage 5 2.5 Suspension System for 2022-2025 Toyota Tundra

Take your 2022-2025 Toyota Tundra to the next level with the ICON Vehicle Dynamics Stage 5 Suspension System. This complete bolt-on package builds on the Stage 4 platform by upgrading the rear shocks to 2.0 Aluminum Series remote-reservoir units, delivering greater heat dissipation and consistent damping on long, rough trails.

Key Benefits

• Adjustable 2-3.5 inches of front lift for an aggressive stance and clearance for up to 35-inch tires
• 2.5 Series internal-reservoir front coilovers for superior ride quality and fade resistance
• Tubular upper control arms correct front-end geometry and add caster for improved handling
• Serviceable, rebuildable ICON Delta Joint PRO allows full bump and droop travel while eliminating bind
• 2.0 Series rear remote-reservoir shocks for cooler running and better off-road control
• 100% bolt-on installation with no drilling, cutting, or welding

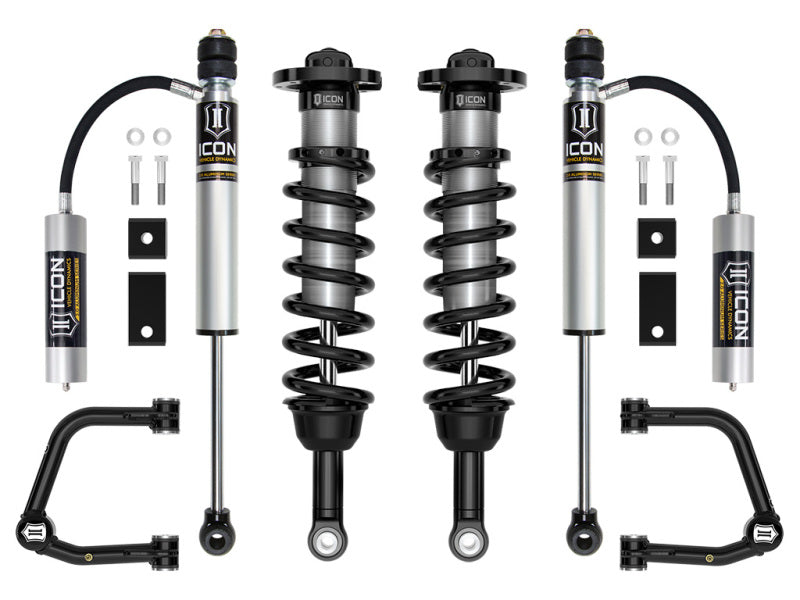

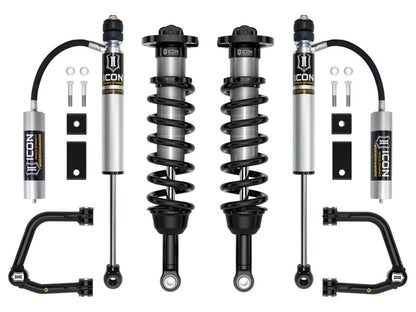

What's Included

• (2) 2.5 Series internal-reservoir front coilovers
• (2) Tubular front upper control arms with Delta Joint PRO
• (2) 2.0 Aluminum Series rear remote-reservoir shocks
• Front sway bar drop kit
• Installation hardware

Specifications

• Series: Stage 5
• Front shock: 2.5 Series internal reservoir coilover
• Rear shock: 2.0 Aluminum Series remote reservoir
• Front lift: 2-3.5 in. (gas); 2-3 in. (i-Force MAX hybrid)
• Adjustment: Manual ride-height adjustable (non-electronic)
• Upper control arms: Tubular with Delta Joint PRO
• Installation: 100% bolt-on

Fitment

Fits 2022-2025 Toyota Tundra. Not compatible with models equipped with Load-Leveling Rear Height Control air suspension, and not intended for TRD Pro trims. A differential drop kit may be required on some 4WD models for optimal CV-axle angles (sold separately).

• 2022-2025 Toyota Tundra - Front and Rear
