ICON Stage 3 2.5 Suspension System for 2022-2025 Toyota Tundra

Name: ICON Stage 3 2.5 Suspension System for 2022-2025 Toyota Tundra
Brand: ICON
SKU: K53193
Price: 2089.78 USD
Availability: InStock

$2,089.78 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53193

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Delivers 1.25-2.25 inches of front lift to level the stance and clear larger tires
2.5 in. front coilovers add oil volume and piston area for cooler, fade-resistant damping on long runs
Retains the factory upper control arms within the rated lift range for a simpler install
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

The ICON Vehicle Dynamics Stage 3 2.5 Series Suspension System (K53193) is a complete front-and-rear lift system for the 2022-2025 Toyota Tundra, delivering 1.25-2.25 inches of adjustable front lift with 2.5 Series front coilovers while retaining the factory upper control arms.

Key Benefits

Delivers 1.25-2.25 inches of front lift to level the stance and clear larger tires
2.5 in. front coilovers add oil volume and piston area for cooler, fade-resistant damping on long runs
Retains the factory upper control arms within the rated lift range for a simpler install
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

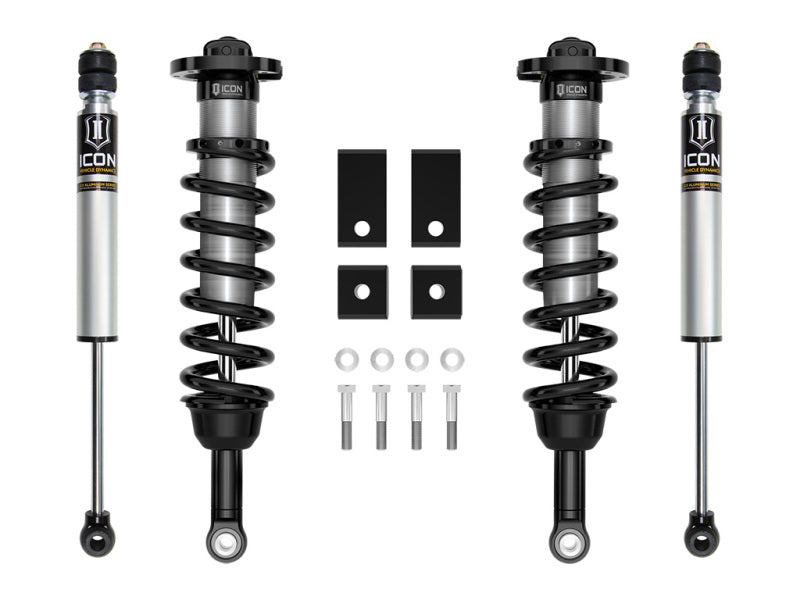

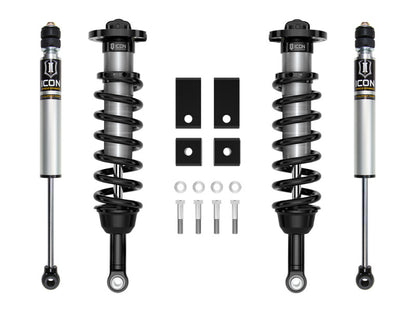

What's Included

Pair of 2.5 Series internal-reservoir front coilovers
Pair of 2.0 Aluminum Series rear shocks
Front sway bar drop brackets and vehicle-specific mounting hardware

Fitment

This system is engineered for the 2022-2025 Toyota Tundra. Does not fit vehicles with factory Adaptive Variable Suspension (AVS), or vehicles with the Load-Leveling Rear Height Control air suspension. Front lift range varies by powertrain (i-Force gas gets the full range; the i-Force MAX hybrid and TRD Pro see a reduced range). On 4WD models without the TRD Off-Road package, ICON recommends the ICON differential drop kit (part #55156). Recalibration of the Advanced Driver Assistance Systems (ADAS) is required after installation.

2022-2025 Toyota Tundra (front and rear)

FAQ

Does the ICON K53193 fit my Toyota Tundra?

It fits the 2022-2025 Toyota Tundra. It does not fit trucks with factory Adaptive Variable Suspension (AVS) or the Load-Leveling Rear Height Control air suspension. Front lift range varies between the i-Force gas, i-Force MAX hybrid, and TRD Pro trims.

Does this kit include upper control arms?

No. The K53193 reuses the factory upper control arms within its rated lift range; ICON upper control arms are available separately if you want added geometry correction.

Do I need a differential drop kit?

On 4WD models without the TRD Off-Road package, ICON recommends its differential drop kit (part #55156) to keep proper CV-axle angles at the lifted height.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2022	Toyota	Tundra	—	Front
2022	Toyota	Tundra	—	Rear
2023	Toyota	Tundra	—	Front
2023	Toyota	Tundra	—	Rear
2024	Toyota	Tundra	—	Front
2024	Toyota	Tundra	—	Rear
2025	Toyota	Tundra	—	Front
2025	Toyota	Tundra	—	Rear

Specifications

stage: Stage 3
valve: VS IR (velocity-sensitive, internal reservoir; non-adjustable)
system: Stage 3
max tire: 35 in
rear lift: 0-1.5 inches (0-1 in. with the TRD package)
front lift: 1.25-2.25 inches
rear shock: 2.0 Aluminum Series
front shock: 2.5 Series VS coilover with internal reservoir
rear damper: 2.0 Aluminum Series
front damper: 2.5 Series internal-reservoir coilover, non-adjustable velocity-sensitive valving
rear lift range: 0-1.5 in
uca requirement: OE UCA up to 2.25 in; ICON UCA recommended above 2.25 in
front lift range: 1.25-2.25 in (i-Force gas), adjustable
mounting position: complete front-and-rear system
upper control arms: not included (reuses factory arms within the rated range)
