ICON Stage 2 EXP Tubular Suspension System for 2022-2025 Toyota Tundra

Name: ICON Stage 2 EXP Tubular Suspension System for 2022-2025 Toyota Tundra
Brand: ICON
SKU: K53192T
Price: 1980.25 USD
Availability: InStock

$1,980.25 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53192T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Delivers 2-3 inches of front lift to level the stance and clear larger tires
2.5 in. front coilovers add oil volume and piston area for cooler, fade-resistant damping on long runs
Included tubular upper control arms restore proper alignment geometry at ride height and add caster
Rebuildable Delta Joint PRO pivot resists bind through full suspension travel and is fully serviceable
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

The ICON Vehicle Dynamics Stage 2 2.5 EXP Series Suspension System (K53192T) is a complete front-and-rear lift system for the 2022-2025 Toyota Tundra, delivering 2-3 inches of adjustable front lift with 2.5 EXP Series front coilovers and tubular upper control arms.

Key Benefits

Delivers 2-3 inches of front lift to level the stance and clear larger tires
2.5 in. front coilovers add oil volume and piston area for cooler, fade-resistant damping on long runs
Included tubular upper control arms restore proper alignment geometry at ride height and add caster
Rebuildable Delta Joint PRO pivot resists bind through full suspension travel and is fully serviceable
Fully rebuildable and re-valvable ICON dampers for long-term serviceability

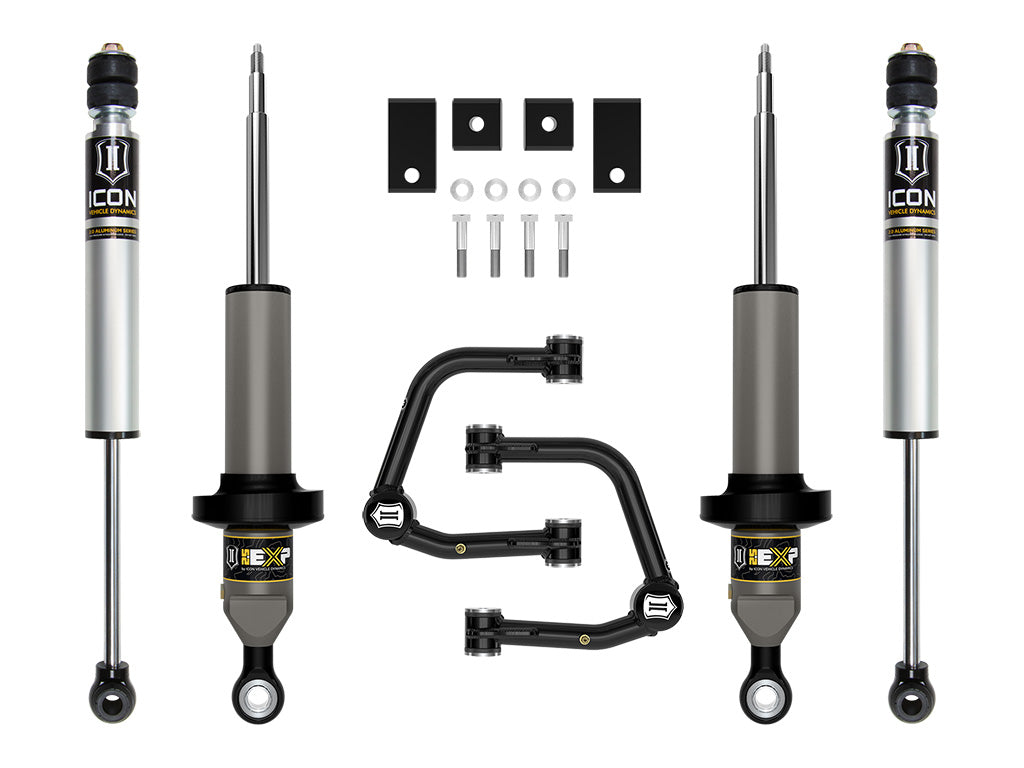

What's Included

Pair of 2.5 EXP Series internal-reservoir front coilovers
Pair of tubular upper control arms with the patented ICON Delta Joint PRO
Pair of 2.0 Aluminum Series rear shocks
Front sway bar drop brackets and vehicle-specific mounting hardware

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53192T
System: Stage 2
Front damper: 2.5 EXP Series internal-reservoir coilover, non-adjustable velocity-sensitive valving
Rear damper: 2.0 Aluminum Series
Upper control arms: tubular, with Delta Joint PRO
Front lift: 2-3 inches
Rear lift: 0-1.5 inches (0-1 in. with the TRD package)
Position: complete front-and-rear system

Fitment

This system is engineered for the 2022-2025 Toyota Tundra. Does not fit vehicles with factory Adaptive Variable Suspension (AVS), or vehicles with the Load-Leveling Rear Height Control air suspension. Front lift range varies by powertrain (i-Force gas gets the full range; the i-Force MAX hybrid and TRD Pro see a reduced range). On 4WD models without the TRD Off-Road package, ICON recommends the ICON differential drop kit (part #55156). Recalibration of the Advanced Driver Assistance Systems (ADAS) is required after installation.

2022-2025 Toyota Tundra (front and rear)

FAQ

Does the ICON K53192T fit my Toyota Tundra?

It fits the 2022-2025 Toyota Tundra. It does not fit trucks with factory Adaptive Variable Suspension (AVS) or the Load-Leveling Rear Height Control air suspension. Front lift range varies between the i-Force gas, i-Force MAX hybrid, and TRD Pro trims.

Does the Stage 2 kit include upper control arms?

Yes. The K53192T is a complete system that includes tubular upper control arms with the ICON Delta Joint PRO, so no separate aftermarket arms are needed.

What is the difference between the tubular and billet versions?

This K53192T uses tubular upper control arms and starts at a 2 in. minimum lift; the billet-arm sibling offers a wider low-end adjustment range. Both use the same ICON Delta Joint PRO.
