ICON Stage 7 CDC Suspension System for 2010-2023 Lexus GX460

Name: ICON Stage 7 CDC Suspension System for 2010-2023 Lexus GX460
Brand: ICON
SKU: K53187T
Price: 5395.65 USD
Availability: InStock

$5,395.65 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53187T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0-3.5 inches of adjustable front lift to fit larger wheels and tires
Extended-travel 2.5-inch remote-reservoir coilovers resist heat and fade
End-user CDC valving lets you tune compression for any terrain or load
Tubular steel Delta Joint upper control arms restore geometry and durability
Complete front-and-rear system with matched, vehicle-specific valving
Tubular rear trailing links and adjustable track bar improve geometry and KDSS fit
Bolt-on installation with no cutting or welding required

The ICON K53187T Stage 7 Suspension System is a complete bolt-on kit for the 2010-2023 Lexus GX460, delivering 0-3.5 inches of front lift with CDC-adjustable 2.5 Series remote-reservoir coilovers and rear shocks, tubular steel Delta Joint upper control arms, tubular rear links, and an adjustable track bar.

Key Benefits

0-3.5 inches of front lift to clear larger, more aggressive wheel and tire combinations
Extended-travel 2.5-inch coilovers with remote reservoirs for superior heat dissipation and fade resistance
End-user adjustable CDC (Compression Damping Control) valving to dial in ride quality for any terrain or cargo load
Tubular steel Delta Joint upper control arms restore correct geometry and add durable high-angle articulation
Balanced front-to-rear tuning with vehicle-specific valving for a planted, controlled ride
Bolt-on installation with no cutting or welding required

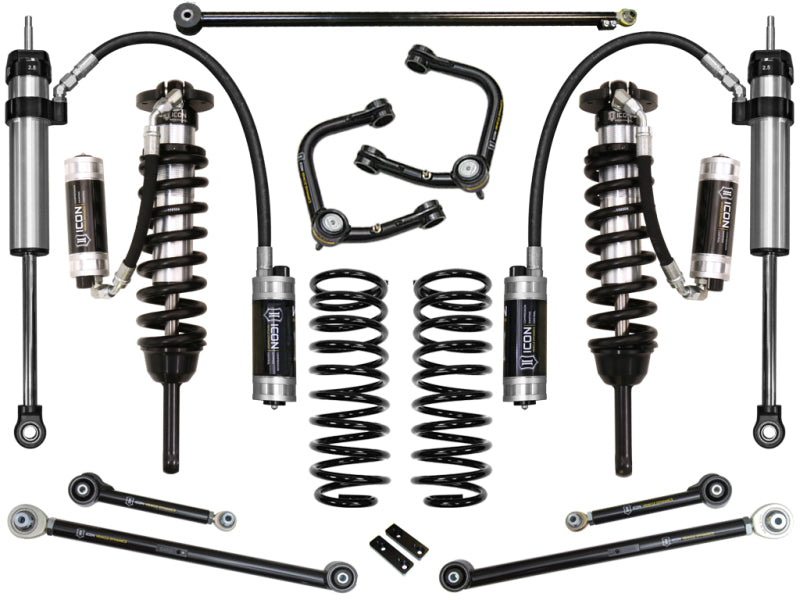

What's Included

Front: extended-travel 2.5-inch remote-reservoir coilover shocks
Front: tubular steel Delta Joint upper control arms
Rear: 2-inch lift coil springs
Rear: 2.5 Aluminum Series remote-reservoir shocks
Rear: tubular steel upper and lower trailing links
Adjustable rear track bar (KDSS compatible)

Fitment

Engineered specifically for the 2010-2023 Lexus GX460 (4WD/AWD). Vehicles with factory rear air suspension require ICON's separate rear coil conversion kit. KDSS-equipped models are supported via the included adjustable track bar.

2010-2023 Lexus GX460

FAQ

Are the ICON K53187T shocks adjustable?

Yes. Stage 7 (K53187T) uses ICON CDC (Compression Damping Control) valving front and rear for by-hand compression tuning with no tools. The lower GX460 stages use non-adjustable vehicle-specific valving.

Does the ICON K53187T include upper control arms?

Yes. It includes tubular steel Delta Joint upper control arms along with the CDC coilovers, rear shocks, tubular rear links, and an adjustable track bar.

Will the ICON K53187T fit a GX460 with factory rear air suspension?

Only with ICON's rear coil-conversion kit (sold separately), which replaces the factory air bags.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2010–2023	Lexus	GX460	—	Front

Specifications

material: 6061 aircraft-grade aluminum, CAD-plated shock bodies, FK rod ends
valve: CDCV
install: bolt-on, no cutting or welding; rear air-suspension models require separate ICON coil conversion kit
valving: CDC manual compression adjusters, front and rear
rear lift: 2 in
track bar: adjustable, KDSS compatible
front lift: 0-3.5 in adjustable
lift range: 0-3.5 inches (front), 2 inches (rear)
rear links: tubular steel upper and lower trailing links
rear shock: 2.5 Aluminum Series remote reservoir
front shock: 2.5 in coilover, remote reservoir, 7/8 in shaft
system type: complete front and rear suspension system
valve detail: CDC manual compression-damping-control adjusters, front and rear (knob, not electronic CDEV)
mounting position: front and rear (complete system)
upper control arms: tubular steel Delta Joint
