ICON Stage 6 Suspension System w/Tubular UCA for 2010-2023 Lexus GX460

Name: ICON Stage 6 Suspension System w/Tubular UCA for 2010-2023 Lexus GX460
Brand: ICON
SKU: K53186T
Price: 4749.6 USD
Availability: InStock

$4,749.60 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53186T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0-3.5" of adjustable front lift to fit larger, more aggressive tires
2.5" remote-reservoir front coilovers resist heat fade on long off-road runs
Tubular Delta Joint upper control arms correct geometry and add articulation
Complete front-and-rear system keeps the GX460 balanced and controlled
Rear 2" coil springs with 2.5" aluminum-series remote-reservoir shocks
Adjustable tubular rear links and track bar dial in pinion angle and centering
KDSS compatible with a bolt-on, no-cut, no-weld installation

The ICON K53186T Stage 6 Suspension System is a complete bolt-on kit for the 2010-2023 Lexus GX460, delivering 0-3.5 inches of front lift with 2.5 Series remote-reservoir front coilovers, tubular steel Delta Joint upper control arms, 2.5 Series remote-reservoir rear shocks, rear springs, tubular upper and lower links, and an adjustable track bar.

Key Benefits

0-3.5" of front-end ride-height adjustment to clear larger, more aggressive tire packages
2.5" remote-reservoir coilovers add oil volume and cooling to resist fade on long, demanding trails
Tubular Delta Joint upper control arms restore alignment geometry and add high-angle articulation
Complete front-and-rear system balances the GX460 from nose to tail
KDSS compatible and engineered as a bolt-on install with no cutting or welding

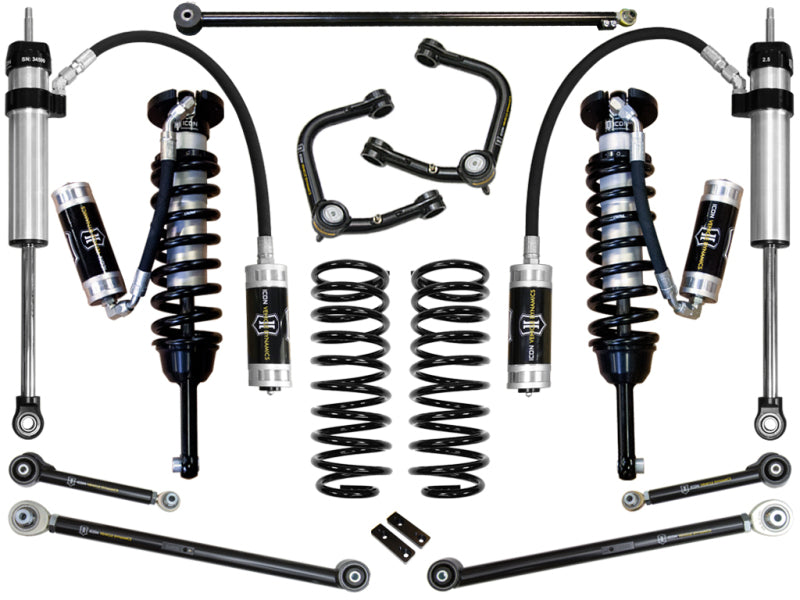

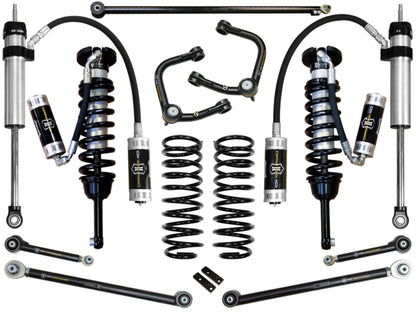

What's Included

Front extended-travel 2.5" remote-reservoir adjustable coilovers (pair)
Tubular Delta Joint upper control arms (pair)
Rear 2" lift coil springs
Rear 2.5" aluminum-series remote-reservoir shocks (pair)
Tubular rear upper and lower trailing links
Adjustable rear track bar

Fitment

Direct fit for the 2010-2023 Lexus GX460. KDSS compatible (front sway bar relocation brackets are not used on KDSS-equipped vehicles). Models equipped with factory rear air-ride suspension require the ICON Rear Coil Conversion Kit #56110 (sold separately).

2010-2023 Lexus GX460 - Front and Rear

FAQ

Are the ICON K53186T shocks adjustable in damping?

No. Stage 6 (K53186T) uses non-adjustable vehicle-specific valving with 2.5 Series remote-reservoir shocks front and rear. The Stage 7 K53187T adds CDC compression adjustment.

What does Stage 6 add over the Stage 5 GX460 kit?

Stage 6 (K53186T) adds tubular rear upper and lower links to the tubular Delta Joint upper control arms and 2.5 Series remote-reservoir shocks front and rear.

Will the ICON K53186T fit a GX460 with factory rear air suspension?

Only with ICON's rear coil-conversion kit #56110 (sold separately).

Vehicle Fitment

Years	Make	Model	Submodel	Position
2010–2023	Lexus	GX460	—	Front

Specifications

valve: CDCV
uca type: Tubular Delta Joint
rear lift: 2 in coil springs
adjustment: Manual ride-height adjustable (non-electronic)
lift range: 0-3.5 in front
rear shock: 2.5 Aluminum Series remote reservoir
standalone: Yes
valve note: Manual height-adjustable 2.5 Series remote-reservoir coilovers; non-electronic (not CDEV/IIC controlled)
front shock: 2.5 Series remote reservoir adjustable coilover
system stage: Stage 6
air ride note: Factory rear air-ride requires ICON Rear Coil Conversion Kit #56110 (sold separately)
front coilover: 2.5 Series remote reservoir, height adjustable
kdss compatible: Yes
mounting position: Front and rear
upper control arm type: Tubular w/ Delta Joint
