ICON Stage 5 2.5 Suspension System Tubular UCA for 10-23 Lexus GX460

Name: ICON Stage 5 2.5 Suspension System Tubular UCA for 10-23 Lexus GX460
Brand: ICON
SKU: K53185T
Price: 4414.65 USD
Availability: InStock

$4,414.65 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53185T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0-3.5" of height-adjustable front lift to fit larger wheels and tires
2.5 Series remote-reservoir shocks for superior heat management off-road
Tubular Delta Joint upper control arms correct geometry and outlast OE arms
Rear Bump Zone technology prevents harsh bottom-out on big hits
Adjustable rear track bar and tubular lower links dial in alignment and pinion angle
KDSS-compatible complete front-and-rear system
Bolt-on installation with no cutting or welding required

The ICON K53185T Stage 5 Suspension System is a complete bolt-on kit for the 2010-2023 Lexus GX460, delivering 0-3.5 inches of front lift with 2.5 Series remote-reservoir front coilovers, tubular steel Delta Joint upper control arms, 2.5 Series remote-reservoir rear shocks, rear springs, tubular lower links, and an adjustable track bar.

Key Benefits

Height-adjustable front coilovers provide 0-3.5" of lift to clear larger, more aggressive wheel and tire combinations
2.5" remote-reservoir shocks improve heat dissipation for consistent damping on long, rough trails
Tubular steel Delta Joint upper control arms restore correct geometry at lift height and resist wear better than OE
"Bump Zone" rear technology adds damping in the final 2" of compression to prevent harsh bottom-out
Adjustable rear track bar and tubular lower links correct alignment and pinion angle, and maintain KDSS compatibility
Complete bolt-on system requires no cutting or welding

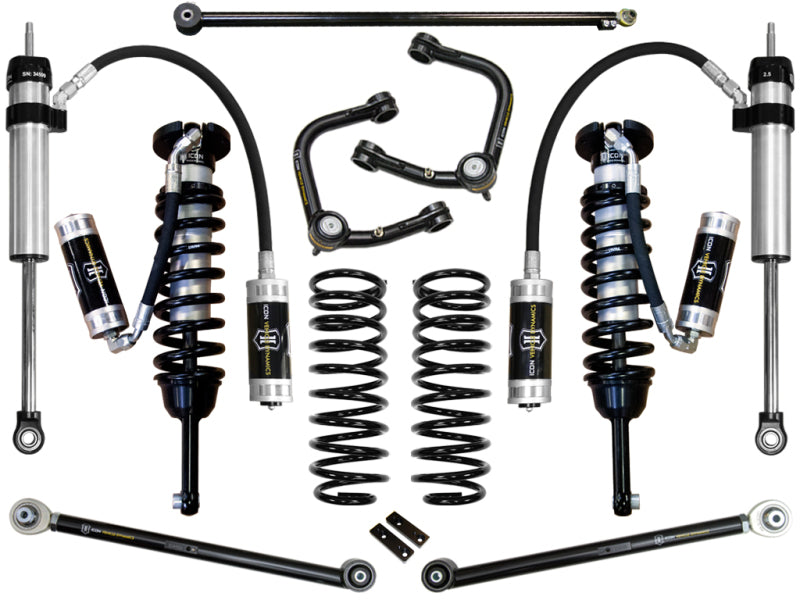

What's Included

Front: extended-travel 2.5" coilover shocks with remote reservoirs
Front: tubular steel Delta Joint upper control arms
Rear: 2.5 Aluminum Series remote-reservoir shocks with Bump Zone technology
Rear: 2" lift coil springs
Rear: tubular steel lower trailing links with multi-durometer bushings
Rear: adjustable track bar (KDSS compatible)

Fitment

Engineered specifically for the 2010-2023 Lexus GX460. GX460 models equipped with factory rear air-ride suspension require the ICON Rear Coil Conversion Kit #56110 (sold separately). Compatible with KDSS-equipped vehicles; front sway bar relocation brackets are not used on KDSS vehicles.

2010-2023 Lexus GX460

FAQ

What is the difference between K53185T and K53185?

Both are Stage 5 systems for the 2010-2023 GX460 with 2.5 Series remote-reservoir shocks front and rear. K53185T uses tubular steel Delta Joint upper control arms and tubular links; K53185 uses billet aluminum arms and billet links.

Are the ICON K53185T shocks adjustable in damping?

No. Stage 5 uses non-adjustable vehicle-specific valving. The Stage 7 K53187T adds CDC compression adjustment on the GX460.

Will the ICON K53185T fit a GX460 with factory rear air suspension?

Only with ICON's rear coil-conversion kit #56110 (sold separately).

Vehicle Fitment

Years	Make	Model	Submodel	Position
2010–2023	Lexus	GX460	—	Front

Specifications

stage: 5
valve: 2.5 Series remote reservoir (vehicle-specific tuning; no CDCV/CDEV)
install: bolt-on, no cutting or welding
rear lift: 2 inch
front lift: 0-3.5 inch adjustable
rear shocks: 2.5 Aluminum Series remote reservoir with Bump Zone
shock series: 2.5 Series remote reservoir, vehicle-specific tuning
air ride note: factory rear air-ride models require ICON Rear Coil Conversion Kit #56110 (sold separately)
kdss compatible: yes
mounting position: front and rear (complete system)
upper control arms: tubular steel Delta Joint
