ICON Stage 5 0-3.5" Suspension System for 2010-2023 Lexus GX460

Name: ICON Stage 5 0-3.5" Suspension System for 2010-2023 Lexus GX460
Brand: ICON
SKU: K53185
Price: 5219.65 USD
Availability: InStock

$5,219.65 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53185

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0-3.5" of adjustable front lift to fit larger, more aggressive tires
Extended-travel 2.5 Series remote-reservoir coilovers resist heat fade off-road
Billet aluminum Delta Joint upper control arms restore geometry and add strength
Matched rear shocks, 2" springs, links, and adjustable track bar for balanced control
Vehicle-specific valving tuned for the GX460 chassis
Complete bolt-on front-and-rear system, no cutting or welding required
KDSS-compatible adjustable rear track bar

The ICON K53185 Stage 5 Suspension System is a complete bolt-on kit for the 2010-2023 Lexus GX460, delivering 0-3.5 inches of front lift with 2.5 Series remote-reservoir front coilovers, billet aluminum Delta Joint upper control arms, 2.5 Series remote-reservoir rear shocks, rear springs, billet lower links, and an adjustable track bar.

Key Benefits

Up to 3.5" of adjustable front lift to clear larger, more aggressive wheel and tire combinations (33x11.50 recommended)
Extended-travel 2.5 Series remote-reservoir coilovers run cooler and resist fade on long trails
Billet aluminum Delta Joint upper control arms restore correct geometry and add durability over the factory ball joint
Vehicle-specific valving balances damping front-to-rear for a controlled, planted ride
Complete bolt-on system: no cutting or welding required for installation

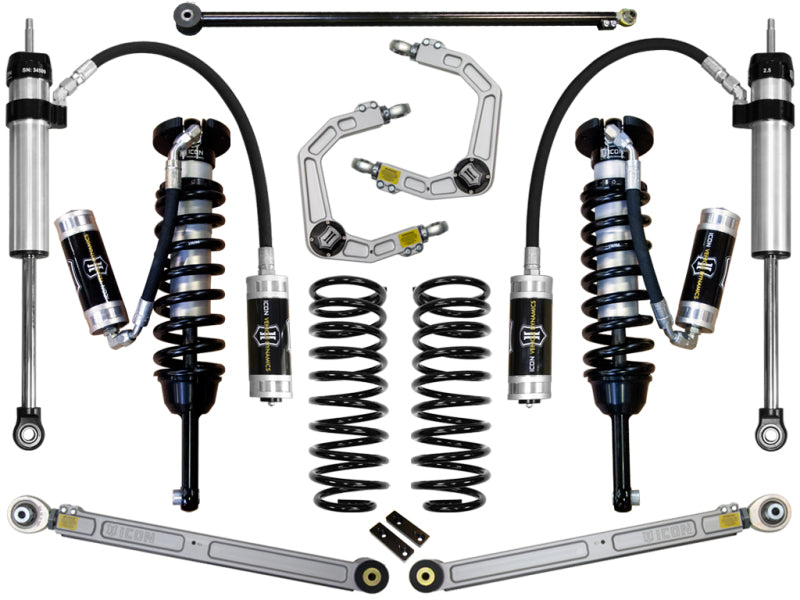

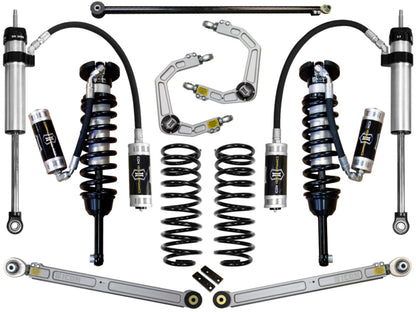

What's Included

Front: 2.5 Series extended-travel remote-reservoir coilover shocks (pair)
Billet aluminum Delta Joint upper control arm kit
Rear: 2.5 Aluminum Series remote-reservoir shocks
Rear 2" lift coil springs
Billet aluminum lower trailing/link arms
Adjustable rear track bar (KDSS compatible)

Specifications

Front lift: 0-3.5" (adjustable at the coilover)
Rear lift: approximately 2"
Front shock: 2.5 Series remote reservoir coilover, extended travel
Rear shock: 2.5 Aluminum Series remote reservoir
Upper control arm: billet aluminum with Delta Joint
Recommended tire: 33" x 11.50"

Fitment

Engineered specifically for the second-generation Lexus GX460 (2010-2023). This is a standalone lift system; no separate base lift is required.

2010-2023 Lexus GX460 (front and rear)

Important: GX460 models equipped with factory rear air-ride suspension require the ICON Rear Coil Conversion Kit (#56110, sold separately). Certain model years require minor trimming for front reservoir bracket clearance. Tires larger than 33x11.50 may require fender trimming.

FAQ

What is the difference between K53185 and K53185T?

Both are Stage 5 systems for the 2010-2023 GX460 with 2.5 Series remote-reservoir shocks front and rear. K53185 uses billet aluminum Delta Joint upper control arms and billet lower links; K53185T uses tubular steel arms and tubular links.

Are the ICON K53185 shocks adjustable in damping?

No. Stage 5 uses non-adjustable vehicle-specific valving. The Stage 7 K53187T adds CDC compression adjustment on the GX460.

Will the ICON K53185 fit a GX460 with factory rear air suspension?

Only with ICON's rear coil-conversion kit #56110 (sold separately).
