ICON

ICON Stage 3 0-3.5in Suspension System for 2010-2023 Lexus GX460

Name: ICON Stage 3 0-3.5in Suspension System for 2010-2023 Lexus GX460
Brand: ICON
SKU: K53183T
Price: 3532.65 USD
Availability: InStock

$3,532.65 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53183T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Height-adjustable 0-3.5" of front lift clears larger wheel and tire setups
2.5" internal-reservoir front coilovers resist fade on long, rough trails
Patented Delta Joint tubular upper control arms correct geometry and outlast OE
Matched rear springs, reservoir shocks, and tubular links balance the ride front-to-rear
True bolt-on system requires no cutting or welding
KDSS compatible with adjustable rear track bar
Lifetime warranty on non-wearable components, springs, and weldments

The ICON K53183T Stage 3 Suspension System is a complete bolt-on kit for the 2010-2023 Lexus GX460, delivering 0-3.5 inches of front lift with vehicle-specific 2.5-inch front coilovers, tubular steel Delta Joint upper control arms, tubular rear lower links, rear springs, 2.0 rear shocks, and an adjustable track bar.

Key Benefits

Height-adjustable 0-3.5" of front lift to clear larger, more aggressive wheel and tire combinations
Vehicle-specific tuned 2.5" coilovers with internal reservoirs for fade-free performance on long trails
Tubular steel upper control arms with ICON's patented Delta Joint correct alignment geometry and add durability
Balanced front-to-rear ride with matched rear springs, reservoir shocks, and stronger tubular links
True bolt-on installation with no cutting or welding required
Backed by ICON's lifetime warranty on non-wearable components, springs, and weldments

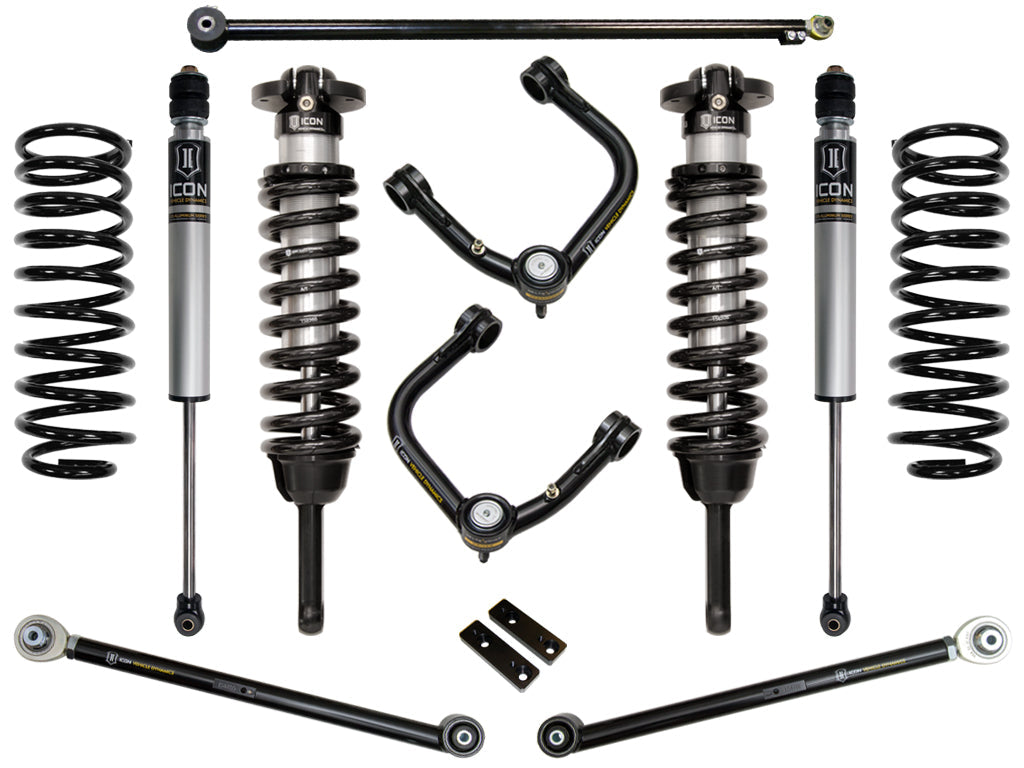

What's Included

Front: 2.5" extended-travel coilover shocks with internal reservoirs (manually adjustable preload)
Front: Tubular steel upper control arms with Delta Joint high-angle ball joints
Rear: 2" lift coil springs
Rear: 2.0 Aluminum Series internal-reservoir shocks with vehicle-specific valving
Rear: Tubular steel lower links (adjustable for pinion angle)
Rear: Adjustable track bar (KDSS compatible)

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53183T
Stage: 3 (Tubular UCA)
Lift Range: 0-3.5" front / 2" rear
Front Coilover: 2.5" diameter, internal reservoir, vehicle-specific (V.S.) non-adjustable damping
Upper Control Arms: Tubular steel with Delta Joint
KDSS Compatible: Yes

Fitment

This system fits the following vehicle. Verify your part number before ordering.

2010-2023 Lexus GX460 (front and rear)

Models equipped with factory rear air-ride suspension require ICON Rear Coil Conversion Kit #56110 (sold separately).

FAQ

Are the ICON K53183T coilovers adjustable in damping?

No. Stage 3 (K53183T) uses non-adjustable vehicle-specific (V.S.) valving; the coilovers are height-adjustable but the damping is not.

What is the difference between K53183T and K53183?

Both are Stage 3 systems for the 2010-2023 GX460. K53183T uses tubular steel Delta Joint upper control arms and tubular rear lower links; K53183 uses billet aluminum arms and billet links.

Will the ICON K53183T fit a GX460 with factory rear air suspension?

Only with ICON's rear coil-conversion kit #56110 (sold separately).

Vehicle Fitment

Years	Make	Model	Submodel	Position
2010–2023	Lexus	GX460	—	Front

Specifications

valve: CDCV
install: bolt-on, no cutting or welding; air-ride trucks need ICON #56110 rear coil conversion
rear lift: 2 inch
front lift: 0-3.5 inch
rear shock: 2.0 Aluminum Series internal reservoir
front coilover: 2.5 inch internal reservoir, manually adjustable
kdss compatible: yes
upper control arms: Tubular steel with Delta Joint
